ABB Enclosed Switch Disconnector, KSE3100TPN, 3P, 45 kW, 100A

SV Code: 922199197964Model No.: KSE3100TPN

380-415 VAC45 kW100 A750 VAC750 VAC

AED 713.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

In stock — ships today

On our shelf and ready to go out today.

Power · 45 kW

Current · 100 A

45 kW · 100 A922199197964AED 713.00

In stock — ships today

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Rated Short-Circuit Making Capacity: 3.6 kA
Protection Type: Watertight
Neutral Type: Fixed
Cable Entry Position: Up/Down
Cable Outlets Per Side: 2 x M40/2 x M40+M16
Impact Resistance Rating: IK07

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	922199197964
Brand	Abb
Category	Switch Disconnectors
Unit	Piece
Voltage	380-415 VAC
Power	45 kW
Current	100 A
Insulation Voltage	750 VAC
Operational Voltage	750 VAC
Short Circuit Current	16.5 kA
Width	160 mm
Height	230 mm
Depth	118 mm
Colour	Grey
Material	Aluminium
Handle Colour	Black
Number of Poles	3P
Handletype	Round
Cross Section	10-70 sq.mm
Brand Origin (not manufacture)	Germany
Delivery	On our shelf and ready to go out today.

Description

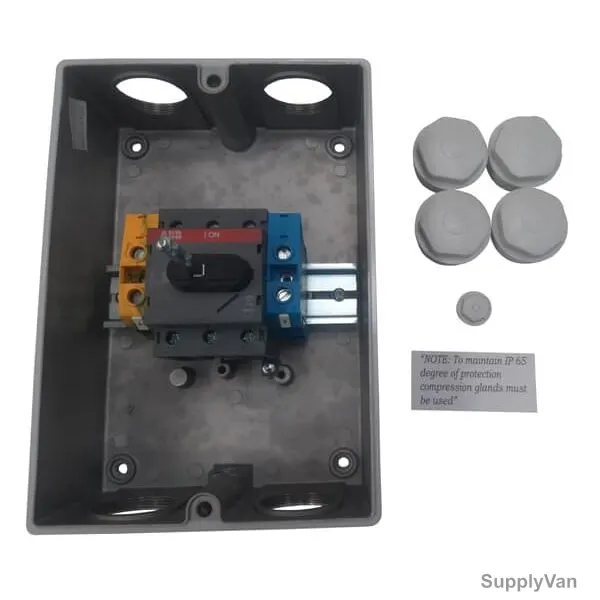

The dye casted aluminium alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included. The cover is interlocked, and handle pad lockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.
