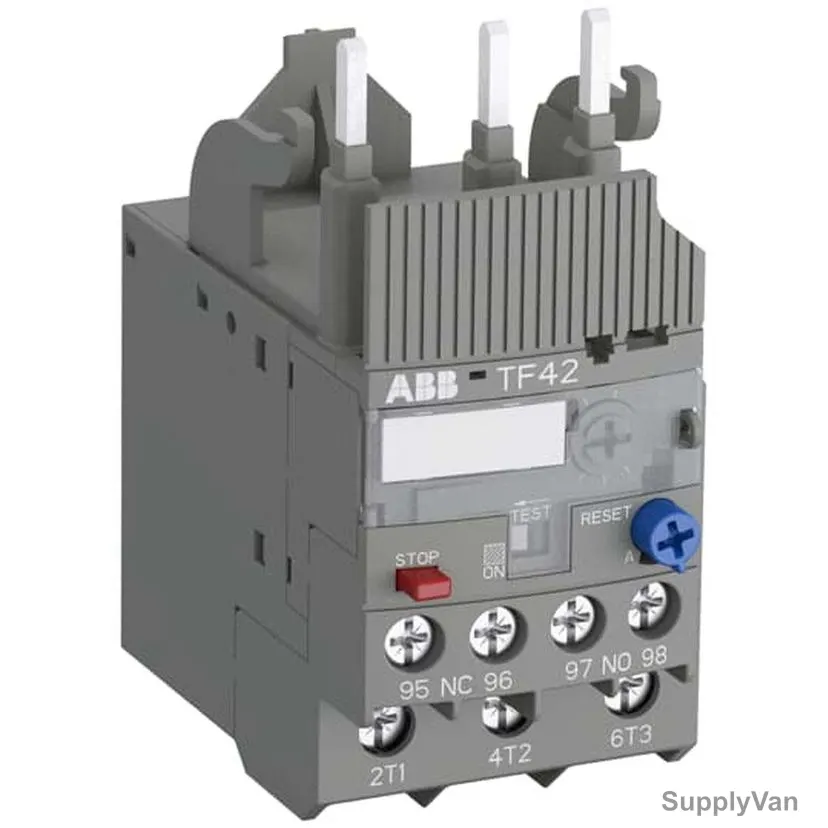

ABB Thermal Overload Relay, TF42-2-3, 1NO + 1NC, 2.3A

SV Code: 488129391451Model No.: TF42-2-3Article Number: B6A2052

50/60 Hz690 VACGreyIP203

AED 92.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

In stock — ships today

On our shelf and ready to go out today.

Amps · 2.3 A

2.3 A488129391451AED 92.00

In stock — ships today

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Number of auxiliary contacts NC: 1
Number of auxiliary contacts NO: 1
At Rated operating conditions per pole 1.1 - 2.0W
Rated impulse withstand voltage: Auxiliary circuit 6kV - main circuit 6kV

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	488129391451
Brand	Abb
Category	Relays and Accessories
Unit	Piece
Frequency	50/60 Hz
Insulation Voltage	690 VAC
Torque	1.5-2.5 Nm
Colour	Grey
Amps	2.3 A
Number of Poles	3
Storage Temperature	-50 to 80 Deg.C
Class Rating	10
Operation Temperature	-25 to 60 Deg.C
Brand Origin (not manufacture)	Germany
Delivery	On our shelf and ready to go out today.

Description

The Thermal Overload Relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors.
