Abb

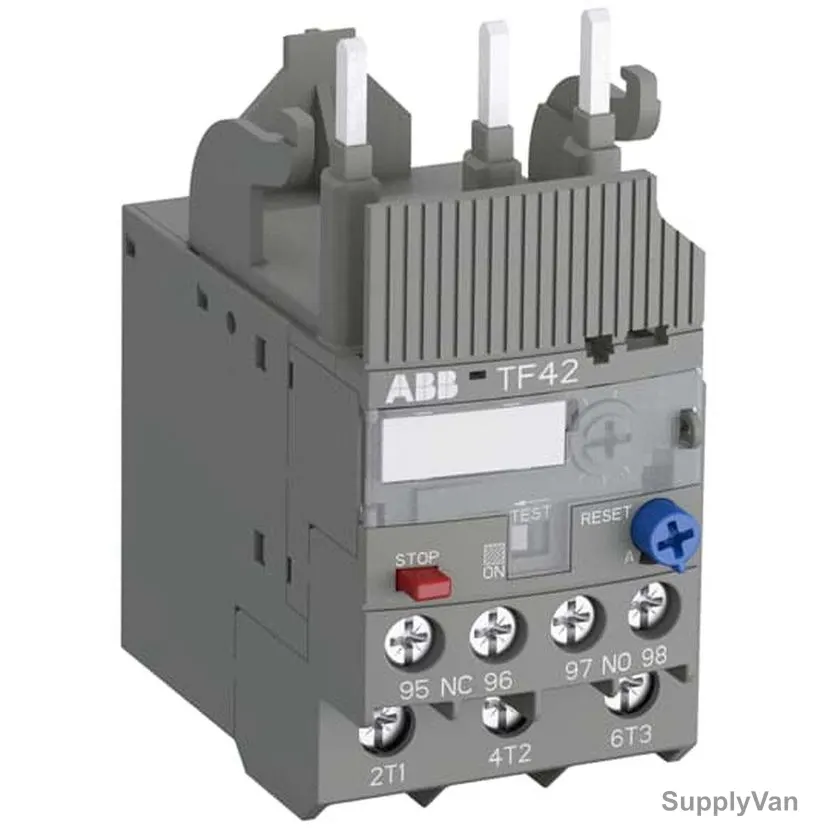

ABB Thermal Overload Relay, TF42-20, 1NO + 1NC, 20A
SV Code: 961969636426Model No.: TF42-20Article Number: B6A2060
690VAC-600VDC50/60 Hz690 VACGreyIP20
AED 102.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Amps · 20 A
20 A961969636426AED 102.00
In stock — ships today
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 1.1 - 2.0W
- Rated impulse withstand voltage: Auxiliary circuit 6kV - main circuit 6kV
Fast delivery Genuine & warranty Bulk quotes
This model family (8 options)
| Product | Price | Availability |
|---|---|---|
| ABB Thermal Overload Relay, TF42-10, 1NO + 1NC, 10A | AED 92.00 | In stock |
| ABB Thermal Overload Relay, TF42-16, 1NO + 1NC, 16A | AED 150.00 | In stock |
| ABB Thermal Overload Relay, TF42-13, 1NO + 1NC, 13A | AED 92.00 | In stock |
| ABB Thermal Overload Relay, TF42-24, 1NO + 1NC, 24A | AED 102.00 | In stock |
| ABB Thermal Overload Relay, TF42-20, 1NO + 1NC, 20A viewing | AED 102.00 | In stock |
| ABB Thermal Overload Relay, TF42-29, 1NO + 1NC, 29A | AED 123.00 | In stock |
| ABB Thermal Overload Relay, TF42-35, 1NO + 1NC, 35A | AED 144.00 | In stock |
| ABB Thermal Overload Relay, TF42-38, 1NO + 1NC, 38A | AED 194.00 | In stock |
Specifications
| SV Code | 961969636426 |
| Brand | Abb |
| Category | Relays and Accessories |
| Unit | Piece |
| Voltage | 690VAC-600VDC |
| Frequency | 50/60 Hz |
| Insulation Voltage | 690 VAC |
| Torque | 1.5-2.5 Nm |
| Colour | Grey |
| Amps | 20 A |
| Number of Poles | 3 |
| Storage Temperature | -50 to 80 Deg.C |
| Class Rating | 10 |
| Operation Temperature | -25 to 60 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Thermal Overload Relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors.
Features
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 1.1 - 2.0W
- Rated impulse withstand voltage: Auxiliary circuit 6kV - main circuit 6kV
Certifications & Standards
| Ingress Protection | IP20 |
