Abb

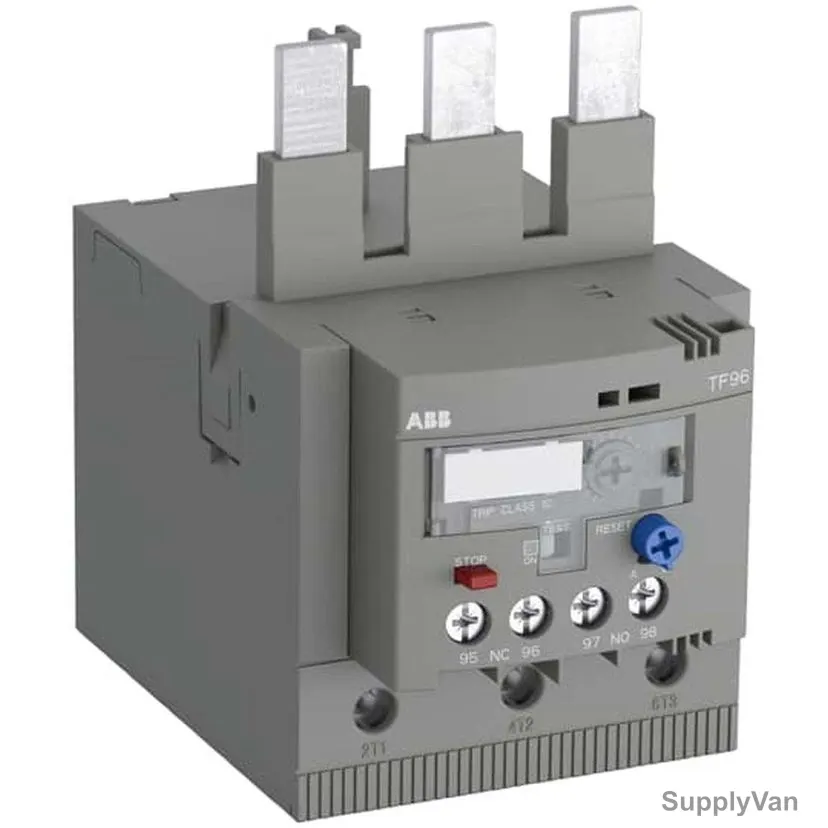

ABB Thermal Overload Relay, TF96-78, 1NO + 1NC, 78A
SV Code: 246615795423Model No.: TF96-78Article Number: B6A2074
690VAC-440VDC50/60 Hz690 VACGreyIP20
AED 305.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Amps · 78 A
78 A246615795423AED 305.00
In stock — ships today
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 3.2 - 4.6W
- Rated impulse withstand voltage: Auxiliary Circuit 6kV - Main Circuit 8kV
Fast delivery Genuine & warranty Bulk quotes
This model family (5 options)
| Product | Price | Availability |
|---|---|---|
| ABB Thermal Overload Relay, TF96-60, 1NO + 1NC, 60A | AED 278.00 | In stock |
| ABB Thermal Overload Relay, TF96-68, 1NO + 1NC, 68A | AED 293.00 | In stock |
| ABB Thermal Overload Relay, TF96-78, 1NO + 1NC, 78A viewing | AED 305.00 | In stock |
| ABB Thermal Overload Relay, TF96-87, 1NO + 1NC, 87A | AED 323.00 | In stock |
| ABB Thermal Overload Relay, TF96-96, 1NO + 1NC, 96A | AED 338.00 | Quote |
Specifications
| SV Code | 246615795423 |
| Brand | Abb |
| Category | Relays and Accessories |
| Unit | Piece |
| Voltage | 690VAC-440VDC |
| Frequency | 50/60 Hz |
| Insulation Voltage | 690 VAC |
| Colour | Grey |
| Amps | 78 A |
| Number of Poles | 3 |
| Storage Temperature | -50 to 80 Deg.C |
| Class Rating | 10 |
| Operation Temperature | -40 to 70 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Thermal Overload Relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors.
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 3.2 - 4.6W
- Rated impulse withstand voltage: Auxiliary Circuit 6kV - Main Circuit 8kV
Features
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 3.2 - 4.6W
- Rated impulse withstand voltage: Auxiliary Circuit 6kV - Main Circuit 8kV
Certifications & Standards
| Ingress Protection | IP20 |
