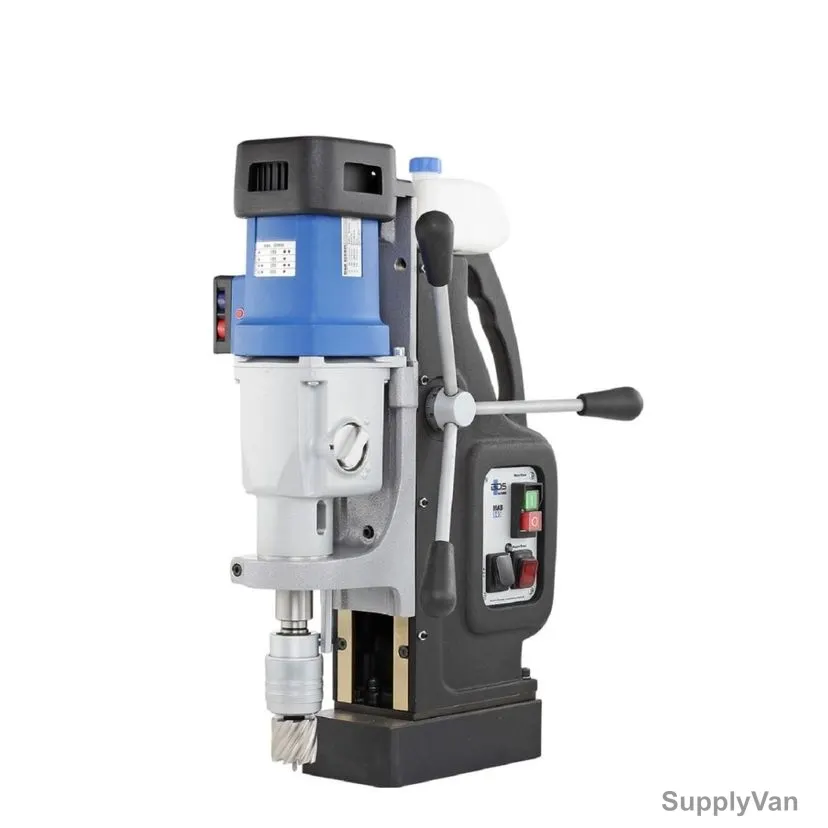

Bds Heavy Duty Magnetic Drill Press, MAB825, 1800W, 100MM
Key features
- The premium feature of the MAB 825 is, tapping up to M 30
- Quick and easy tapping with the reversible motor
- Simply better drilling
- High performance 4-speed gears
- Permanent internal lubrication
- Intelligent magnet indicator for safety
This model family (4 options)
| Product | Price | Availability |
|---|---|---|
| Bds Lightweight Magnetic Drill Press, MAB485, 1150W, 40MM | AED 6,541.00 | Quote |
| Bds Magnetic Drill Press, MAB525, 1600W, 50MM | AED 7,983.00 | In stock |
| Bds Heavy Duty Magnetic Drill Press, MAB825, 1800W, 100MM viewing | AED 9,790.00 | Quote |
| Bds Automatic Magnetic Drill Press, MAB1300, 2300W, 130MM | AED 17,912.00 | Quote |
Specifications
| SV Code | 944551752113 |
| Brand | Bds |
| Category | Magnetic Drill Presses |
| Unit | Piece |
| Voltage | 110-230 VAC |
| No-Load Speed | 550 rpm |
| Motor Power | 1800 W |
| Cutting Depth | 110 mm |
| Magnetic Force | 19500 N |
| Twist Drill Diameter | 31.75 mm |
| Drilling Capacity | 100 mm |
| Drilling Depth | 255 |
| Countersink Diameter | 50 mm |
| Reaming Diameter | 31.75 |
| Accessories Included | 1x Attached Cooling Tank, 1x Carry Case On Wheels, 1x Drill Drift, 1x Taper Drift, 1x Industrial Arbour Mt3, 1x Keyless Drill Chuck, 1x Operating Manual, 1x Safety Chain, 4x Ejector Pins |
| Corded/Cordless | Corded |
| Number of Gears | 4 |
| Spindle Taper | MT3 |
| Max Tapping | M30 |
| Country of Manufacture | Germany |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

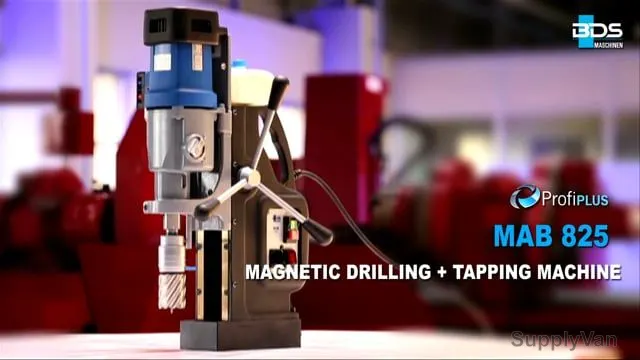

The all in one Heavy Duty Magnetic Drilling Tapping Machine, from BDS Machine. MAB 825, Heavy Duty Magnetic Drilling Tapping Machine from the ProfiPLUS category. Full performance, flexible and robust. MAB 825 is the best choice for structural steel engineering, plant construction, PEB structures, etc. MAB 825 is a heavy duty portable drilling solution. The made in Germany, MAB 825 Mag Drill – The unique feature of MAB 825 mag drill is that it is equipped with a reversible motor. A reversible motor of the mag drill is absolutely necessary to do reversible motor of the mag drill tapping or thread cutting. Once the tapping is finished, with a reversible motor of the mag drill you can remove the taps at the entry of the holes, which helps prevent the threads to get damaged. the reversible motor of the mag drill is also useful for the right hand as well as Left-hand taps.
Features
- The premium feature of the MAB 825 is, tapping up to M 30
- Quick and easy tapping with the reversible motor
- Simply better drilling
- High performance 4-speed gears
- Permanent internal lubrication
- Intelligent magnet indicator for safety
- Safely arranged switches and Reversible motor
- Protective cap for the motor
- Precise speed and torque controls
- Sleek integrated cooling tank
- Brilliant carbon brush wear control indicator
- Complete internal cabling to avoid accidents
- Full-wave control electronics for steady watt even during drilling
- Unique Friction clutch which prevents cutter breakage
- Advance motor overheat protection for safety
