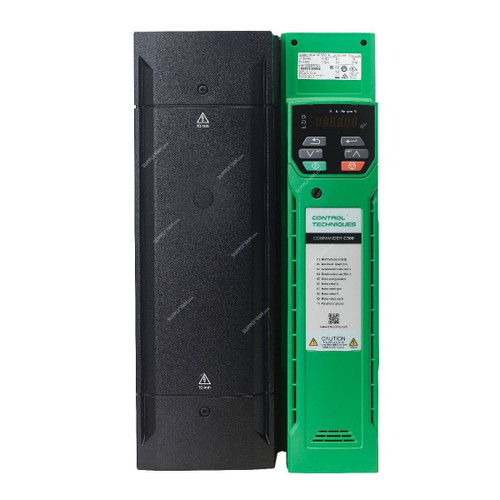

Control Techniques General Purpose Low Voltage AC Drive, C200-06400420A, 18.5kW, 3 Phase, 380-480VAC
On our shelf and ready to go out today.
Key features
- Built-in PLC functionality: for basic automation without external controllers
- Advanced motor control: Vector control for high torque at low speed
- Modbus RTU onboard: Simple connection to HMIs and PLCs
- Expandable Communication: Supports Ethernet/IP, CANopen, Profibus, and more
- Easy commissioning: Compatible with “Connect” PC tool and optional keypad
Specifications
| SV Code | 618447468725 |
| Brand | Control Techniques |
| Category | Variable Frequency Drives |
| Unit | Piece |
| Voltage | 380-480 VAC |
| Wattage | 18.5 kW |
| Frequency | 0-550 Hz |
| Phase | 3 |
| Power (hp) | 30 hp |
| Frame Size | 6 |
| Application | Fans and blowers, Pumps and compressors, Mixers and agitators, Conveyors, Machine tools |
| Operating Temperature | -20 to 40 Deg.C |
| Delivery | On our shelf and ready to go out today. |
Description
The Control Techniques Commander C200-06400420A is a high-performance general-purpose low voltage AC drive designed to deliver precision motor control in a wide variety of industrial and commercial applications. With an output power of 18.5kW (25 HP) at heavy-duty rating, it operates on a 3-phase, 380–480VAC supply, making it ideal for mid- to high-power applications such as conveyors, pumps, compressors, fans, and mixers. This model belongs to the Commander C200 series, known for combining compact design with robust performance and built-in intelligence. It features advanced motor control algorithms, onboard PLC capability, and Modbus RTU communication as standard, while supporting easy expansion through optional communication modules for Ethernet/IP, Profibus, EtherCAT, and more.
Features
- Built-in PLC functionality: for basic automation without external controllers
- Advanced motor control: Vector control for high torque at low speed
- Modbus RTU onboard: Simple connection to HMIs and PLCs
- Expandable Communication: Supports Ethernet/IP, CANopen, Profibus, and more
- Easy commissioning: Compatible with “Connect” PC tool and optional keypad
Certifications & Standards
| Ingress Protection | IP20 |
