DB Technologies Bi-Amped System, ES-602, 800W, 44-15000 Hz, 118 dB

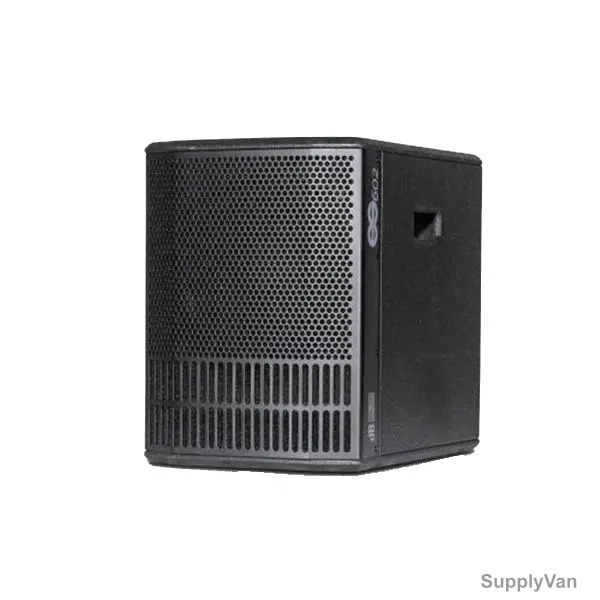

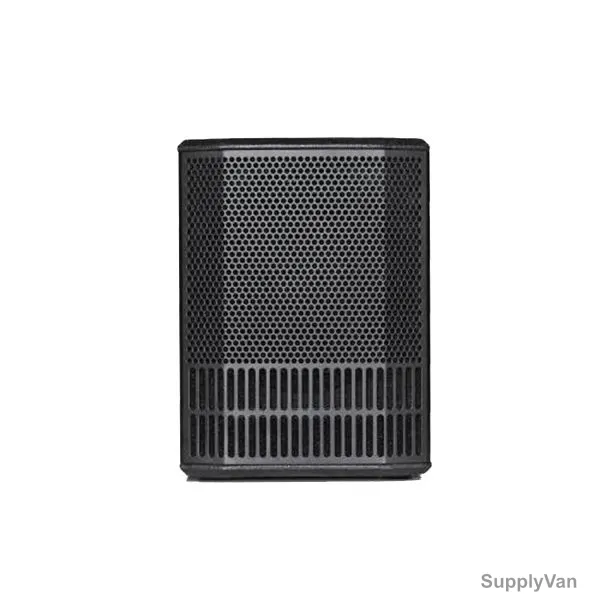

The ES Series is the result of experience gained from dB Technologies in the acoustic design of vertical array systems like DVA T Series and MINI. The components of the top are aligned mechanically (Logarithmic Curved Column Array) so as to increase the coverage of the vertical beam. Furthermore, there is a special "double-ringed phase plug" that increases the horizontal coverage and gives a rich and crystal clear sound to the system. The bass-reflex subwoofer houses a generous 10 Inch woofer and the amplifier module. The enclosure, sturdy and stylish, is made of birch plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. Two recessed handles (one per side) help easy transport. Finally the metal grid with foam, in addition to protecting the woofer and give a very elegant and professional look, helps the reflex effect. The lower part of the grid, placed right on the reflex ports, have in fact holes with a larger diameter to enhance air flow.

The satellite is connected to the subwoofer through the supplied D25mm pole. The system is used in mono mode so that all inputs are routed to both outputs in mono

The highly efficient amplifier provides high power with limited weight and dimension

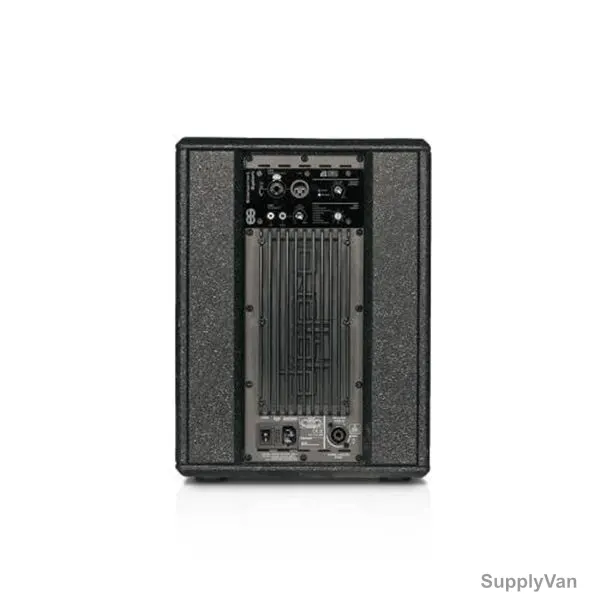

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment

The DSP allows to choose among 8 different equalizations: Flat, Bass Boost, Bass Reduction, Playback, Club, Vocal, Monitor and Antifeedback

Compact size and weight

One-trip carry

One-minute setup

8 preset equalizations

Extended vertical coverage

Double-ringed phase plug for a wide horizontal coverage

Auto-range PSU

Acoustical Data:

Frequency Response [-10dB]: 44 to 15.000 Hz

Max SPL: 118 dB

MF-HF: 4 x 3 Inch

Type MF-HF: Neodymium

LF: 10 Inch

Directivity: 95 x 65 Degree

Amplifier:

Amp Technology: DigiPro G3

Amp Class: Class-D

Processor:

Controller: DSP 24 Bit/48 kHz

System Presets: Factory presets

Limiter: Dual Active, Peak, RMS, Thermal

Crossover Frequency LF-HF: 210 Hz

Input:

Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input

Link Output: 1x XLR balanced output

Mechanics:

Subwoofer Housing Material: 15mm Black Painted Plywood

Top Housing Material: Polypropylene

Subwoofer Handles: 2x Lateral Side

Top Width: 95mm

Top Height: 360mm

Top Depth: 137mm

Subwoofer Width: 300mm

Subwoofer Height: 400mm

Subwoofer Depth: 430mm

Top Weight: 1.9 Kg

Subwoofer Weight: 14.2 Kg
