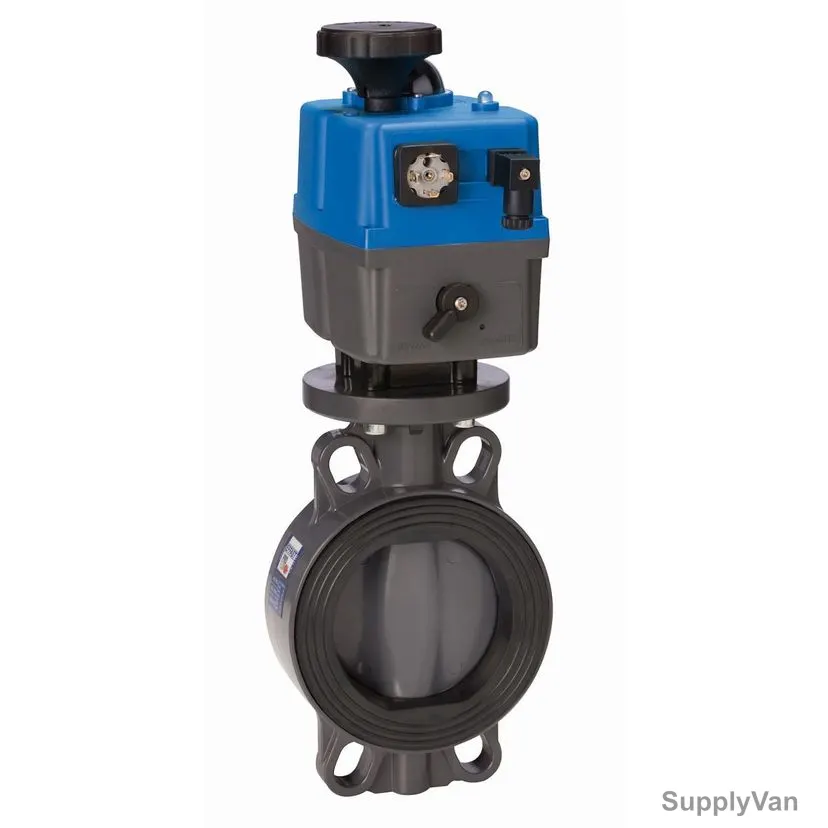

Effast Electrically Actuated Butterfly Valve, FDREPFHJ1100, Proflow H, PVC-U, 110MM

Name: Effast Electrically Actuated Butterfly Valve, FDREPFHJ1100, Proflow H, PVC-U, 110MM
Brand: Effast
SKU: effast-fdrepfhj1100
Price: 6660.00 AED
Availability: PreOrder

SV Code: 548911991715Model No.: FDREPFHJ1100

12VAC/DCPN 10 bar434 mm110 mm100 mm

AED 6,660.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs
The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
PVC-U body is machined to guarantee a secure seal
EPDM NSF certified main gasket
Zinc plated carbon steel stem
Lockable handle

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

This model family (6 options)

Product	Price	Availability
Effast Electrically Actuated Butterfly Valve, FDREPFHJ0750, Proflow H, PVC-U, 75MM	AED 6,140.00	Quote
Effast Electrically Actuated Butterfly Valve, FDREPFHJ0900, Proflow H, PVC-U, 90MM	AED 6,497.00	Quote
Effast Electrically Actuated Butterfly Valve, FDREPFHJ1100, Proflow H, PVC-U, 110MM viewing	AED 6,660.00	Quote
Effast Electrically Actuated Butterfly Valve, FDREPFHJ1400, Proflow H, PVC-U, 125/140MM	AED 7,927.00	Quote
Effast Electrically Actuated Butterfly Valve, FDREPFHJ1600, Proflow H, PVC-U, 160MM	AED 8,682.00	Quote
Effast Electrically Actuated Butterfly Valve, FDREPFHJ2250, Proflow H, PVC-U, 200/225MM	AED 10,374.00	Quote

Specifications

SV Code	548911991715
Brand	Effast
Category	Butterfly Valves
Unit	Piece
Voltage	12VAC/DC
Temperature Range	0 to 60 Deg.C
Pressure	PN 10 bar
Height	434 mm
Diameter	110 mm
Diameter Nominal	100 mm
Colour	Grey and Blue
Material	PVC-U
Seal Material	EPDM
Stem Material	Zinc Plated Carbon Steel
Application Area	Water Treatment, Marine, SPA, Mining, Building Technology, Swimming Pools, Agriculture Irrigation
Brand Origin (not manufacture)	Italy
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the Proflow H butterfly valve is ideal for high performance applications. Proflow butterfly valve can be actuated with standard electric actuators and can be equipped with wheel gearboxes without additional kit. The mounting flange is drilled according to standard ISO 5211.

Features

Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs
The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
PVC-U body is machined to guarantee a secure seal
EPDM NSF certified main gasket
Zinc plated carbon steel stem
Lockable handle
Regulating plate with 19 positions between 0 and 90 degree, for fne readjustment of the flow rate
Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
Fit for contact with potable water
Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU
