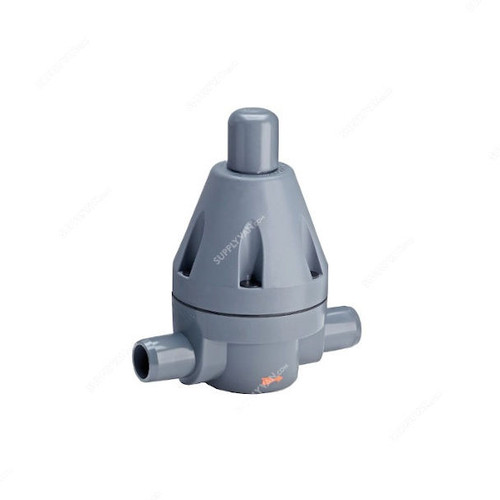

Effast Metric Solvent Welded Pressure Retaining Valve, MDRMVM0630-E, PVC-U, 63MM

Name: Effast Metric Solvent Welded Pressure Retaining Valve, MDRMVM0630-E, PVC-U, 63MM
Brand: Effast
SKU: effast-mdrmvm0630-e
Price: 5868.00 AED
Availability: PreOrder

SV Code: 237287849861Model No.: MDRMVM0630-E

PN 10 bar224 mm290 mm63 mm50 mm

AED 5,868.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Diameter · 63 mm

63 mm237287849861AED 5,868.00

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

All parts that come into contact with the medium are made of highly-resistant plastics
The control diaphragm separates the actuating drive from the flow section
The operating pressure is adjusted with an adjustment screw and is secured with a lock nut. The setting can also be lead sealed if required
The shape of the housing that assists flow results in good flow values
No auxiliary energy is required in order to operate the valve
The valve is largely maintenance-free and can be installed in any position

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	237287849861
Brand	Effast
Category	Electric Valve Actuators
Unit	Piece
Temperature Range	0 to 60 Deg.C
Pressure	PN 10 bar
Length	224 mm
Height	290 mm
Diameter	63 mm
Diameter Nominal	50 mm
Colour	Grey
Material	PVC-U
Application Area	Industrial, Water Treatment, Marine, SPA, Mining, Building Technology, Swimming Pools, Agriculture Irrigation
Brand Origin (not manufacture)	Italy
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

Pressure retaining valves are used where a constant back pressure is required for operating process systems. When installed as a bypass, it can also be used as a relief valve for reducing pressure peaks. The model (DN 10-50) has an almost zero-static lower body that makes it particularly suitable for use in very high-purity water applications. The variety of available materials covers a wide range of applications.

Features

All parts that come into contact with the medium are made of highly-resistant plastics
The control diaphragm separates the actuating drive from the flow section
The operating pressure is adjusted with an adjustment screw and is secured with a lock nut. The setting can also be lead sealed if required
The shape of the housing that assists flow results in good flow values
No auxiliary energy is required in order to operate the valve
The valve is largely maintenance-free and can be installed in any position
