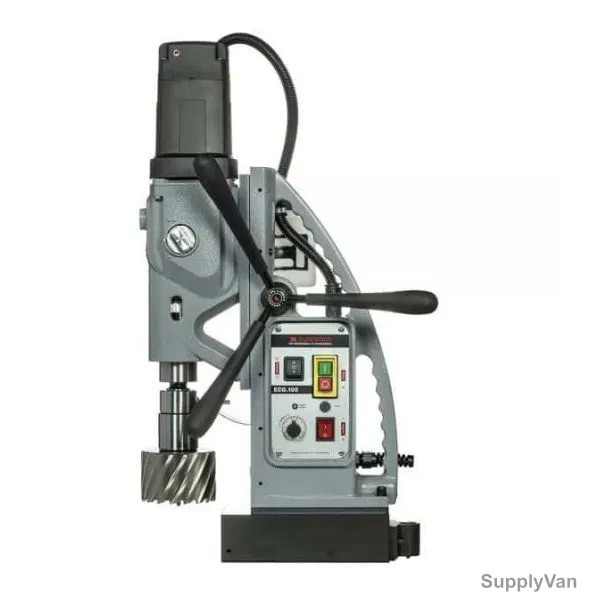

Euroboor Magnetic Drilling Machine, ECO.100S+/TD, 2050W, 220-240V, 100MM Cutting Dia
On our shelf and ready to go out today.
Key features
- Four-speed oil lubricated gearbox, particularly suitable for tapping, right/left rotating
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Right/left rotating, electronic speed adjustment, torque control on motor house
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
Specifications
| SV Code | 417698155584 |
| Brand | Euroboor |
| Category | Magnetic Drill Presses |
| Unit | Piece |
| Voltage | 220-240 VAC |
| Frequency | 50/60 Hz |
| Power Source Type | Electric |
| Motor Power | 1900 W |
| Total Power | 2050 W |
| Cutting Diameter | 12-100 mm |
| Stroke Width | 260 |
| Magnetic Force | 3000 kg |
| Twist Drill Diameter | 1-32 mm |
| Length | 365 mm |
| Width | 310 mm |
| Height | 715 mm |
| Maximum Height | 715 mm |
| Connection Size | 31.75 mm |
| Minimum Height | 515 mm |
| Countersink Diameter | 10-105 mm |
| Colour | Grey and Black |
| Application | Drilling, Countersinking, Threading |
| Rotation Angle | Bidirectional |
| Brand Origin (not manufacture) | Netherlands |
| Delivery | On our shelf and ready to go out today. |
Description
The portable Euroboor ECO.100S+/TD magnetic core drilling machine has an unique swivel base, which allows the magnet to rotate 30 degree both ways and slide 15-20mm forwards and backwards. This magnetic core drilling machine cuts holes up to 100mm and is particularly suitable for tapping. It not only benefits from an oil lubricated gearbox, but also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
Features
- Four-speed oil lubricated gearbox, particularly suitable for tapping, right/left rotating
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Right/left rotating, electronic speed adjustment, torque control on motor house
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
- Magnet dimension: 22L x 11B x 6.4H
