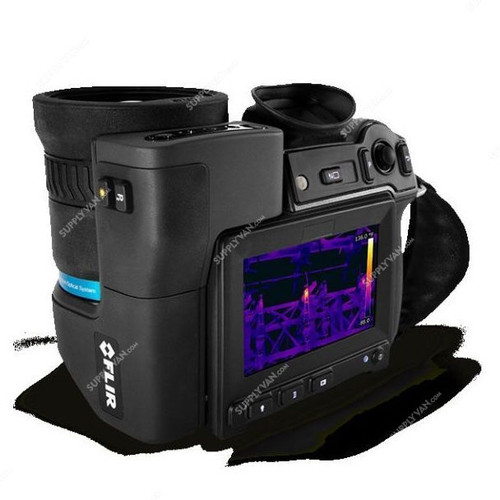

Flir Premium HD Thermal Camera With ViewFinder, T1020, -40 to 2000 Deg.C, 1.3 Mtrs
SV Code: 846688158396Model No.: T1020
664 WLi-IonMagnesiumIP54Tripod
AED 188,462.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- The T1020 now offers an agile new GUI that responds like a smartphone, plus live image enhancements such as 1-Touch Level/Span
- Exceptional Measurement Performance: The FLIR OSX Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance
- COMPACT AND EASY TO USE: The T1020 has a 120 Degree rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range
- Built-in Digital Camera: 5 Mpixel with LED light
- AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
- Compass: Camera direction automatically added to every image
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 846688158396 |
| Brand | Flir |
| Category | Thermal Imager |
| Unit | Piece |
| Wattage | 664 W |
| Battery Type | Li-Ion |
| Charging Time | 2.5 Hrs to 90 percent capacity (charging status indicated by LEDs) |
| Battery Life | Greater than 2.5 hours at 25 Deg.C |
| Temp Range | -40 to 2000 Deg.C |
| Range | 7.5–14 mu mtrs |
| Housing Material | Magnesium |
| Accessories Included | Infrared camera with lens Battery, Battery charger, HDMI cable, Transport case, Lens cap, Neck strap, Power supply, multi-plugs USB cable, Standard A to Micro-B Calibration certificate etc |
| Mounting Type | Tripod |
| Display Type | 4.3 Inch wide screen LCD, Built-in touchscreen |
| Humidity | IEC 60068-2-30 / 24 hours, 95 Percent relative humidity, 25–40 Degree.C (77–104 Degree.F) / 2 cycles |
| Storage Temp | -40 to 70 Deg.C |
| Resolution | 1024 × 768, up to 3.1 MP with UltraMax |
| Display Resolution | 800 × 480 pixels |
| Rechargeable | Yes |
| Laser Class | Class 2 |
| Languages Supported | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish |
| Field of View | 28 Degrees Horizontal x 21 Degrees Vertical |
| Minimum Focus Distance | 1.3 Mtr |
| Thermal Sensitivity | Less tham 20 mK at 30 Deg.C |
| Brand Origin (not manufacture) | United States |
| Delivery | Not on the shelf right now; 5 working days to source and deliver. |
Description
Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax), and an agile, new user interface, FLIR's flagship T1020 is designed to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibilitythe T1020 is the ultimate result of five decades of infrared expertise.
Features
- The T1020 now offers an agile new GUI that responds like a smartphone, plus live image enhancements such as 1-Touch Level/Span
- Exceptional Measurement Performance: The FLIR OSX Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance
- COMPACT AND EASY TO USE: The T1020 has a 120 Degree rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range
- Built-in Digital Camera: 5 Mpixel with LED light
- AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
- Compass: Camera direction automatically added to every image
- Detector Type: Focal plane array (FPA), uncooled microbolometer
- Difference Temperature: Delta temperature between the measurement functions and the reference temperature
- Laser: Activated by a dedicated button, Laser Alignment: Position is automatically displayed on the infrared image, Laser Type: Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
- Power Management: Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
- Charging system: In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Certifications & Standards
| Ingress Protection | IP54 |
