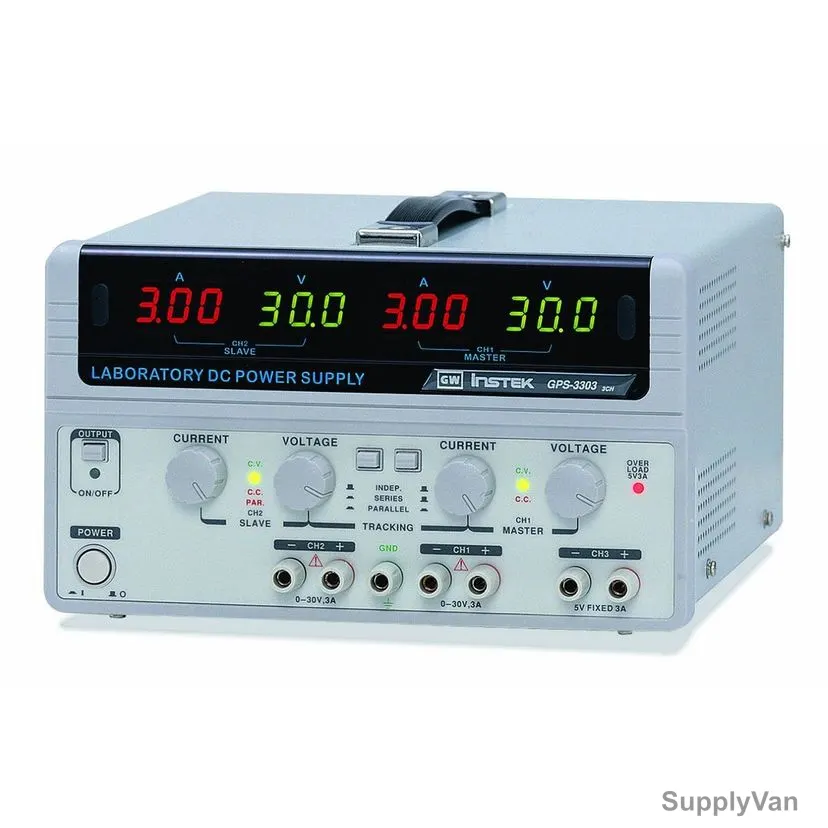

GW Instek Multi-Output DC Power Supply, GPS-3303, 3 Channel, 3A, 30VDC
Key features
- Multiple Power Outputs: 2, 3 and 4 independent isolated outputs with four '3' digit LED display
- Stable and Clean Power: 0.01% load and line regulation and low ripple and noise
- Safety Design: Output On/Off switch, CC/CV modes, Overload protection and Reverse polarity protection
- Low Fan Acoustic Noise: Fan speed control circuit to minimise fan noise
- Tracking operation and auto series/parallel operation, flexible output voltage and current
- Fan speed control circuit to minimize fan noise, stable and clean power, safety design
Specifications
| SV Code | 732463889562 |
| Brand | GW Instek |
| Category | DC Power Supplies |
| Unit | Piece |
| Output Voltage | 30 VDC |
| Output Current | 3 A |
| Width | 255 mm |
| Height | 145 mm |
| Colour | White |
| Application | Test and Measurement |
| Brand Origin (not manufacture) | Taiwan |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The GPS-3303 Power Supply from GW Instek is a GPS-x303 series, 195W, 3-channel linear DC power supply. Overload, reverse polarity protection and an output on/off switch keep the power supply and its load safe from unexpected conditions. A high regulation (0.01%+3mV), low fan acoustic noise and low ripple/noise (< 1mVrms, 5Hz to 1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions ensuring quiet operation. It is an ideal solution for lightweight, inexpensive bench top or portable applications requiring high regulation and multiple outputs. It has <= 0.5% + 10mV of CH1 tracking error, <= 0.01% + 5mV series regulation, <= 300mV load regulation, <= 2mVrms, 5Hz to 1MHz ripple & noise during tracking operation. The GPS-3303 has insulation resistance of 20Mohm (>= DC 500V/chassis and terminal) and 30Mohm (>= DC 500V/chassis and AC cord). It has <= 15mV (CH3) load regulation.
Features
- Multiple Power Outputs: 2, 3 and 4 independent isolated outputs with four '3' digit LED display
- Stable and Clean Power: 0.01% load and line regulation and low ripple and noise
- Safety Design: Output On/Off switch, CC/CV modes, Overload protection and Reverse polarity protection
- Low Fan Acoustic Noise: Fan speed control circuit to minimise fan noise
- Tracking operation and auto series/parallel operation, flexible output voltage and current
- Fan speed control circuit to minimize fan noise, stable and clean power, safety design
- Output Voltage Resolution: 100mV
- Output Current Resolution: 10mA
- Voltage Load Regulation: -/<0.01% 3mV
