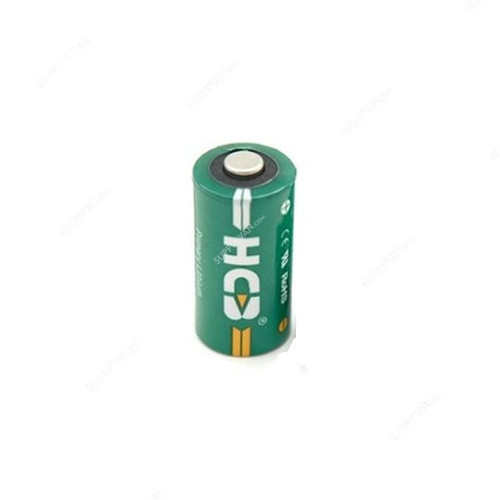

Hcb Li-MnO2 Cylindrical Battery, CR17335, 3.10V, 1500mAh
On our shelf and ready to go out today.
Key features
- High voltage response, stable during most of the lifetime of the application
- Energy density up to 830Wh/L
- Low Self-discharge Rate (less than 1% per year after 1 year of storage at +25 Deg.C)
- At +25 deg.C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage
- At +25 Deg.C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity
- Maximum pulse discharge current: 3000mA
Specifications
| SV Code | 954892199726 |
| Brand | Hcb |
| Category | Disposable Specialty Batteries |
| Unit | Piece |
| Battery Voltage | 3.10 VDC |
| Battery Type | Li-MnO2 |
| Battery Capacity | 1500 mAh |
| Height | 34.0+/-0.5mm |
| Diameter | 16.7+/-0.3mm |
| Application | Security System, Smart Metering, RFID and Tracking System, Wireless Transmitting, Smart Home Devices, Military Devices |
| Amps | 1500 mA |
| Operating Temperature | -40 to 85 Deg.C |
| Storage Temperature | <=30 Deg.C |
| Relative Humidity | <=75% |
| Safety Warning | Do not short circuit, recharge, puncture, crush, dismantle, incinerate, mix new and used batteries, heat above 100 Deg.C |
| Brand Origin (not manufacture) | China |
| Delivery | On our shelf and ready to go out today. |
Description
The HCB CR17335 is a high-performance 3V Lithium Manganese Dioxide (Li-MnO?) battery engineered to deliver powerful, long-lasting, and stable energy for advanced industrial, commercial, and high-demand electronic applications. Built in a compact cylindrical form, this Li-MnO? cell is recognized for its superior energy density, reliable voltage output, and excellent performance across both low-drain and high-pulse-drain devices. Designed for challenging environments and mission-critical equipment, the cylindrical battery delivers strong, consistent power, making it an ideal choice for professional devices such as smoke detectors, alarm systems, metering devices, industrial controllers, wireless sensors, IoT modules, GPS trackers, security equipment, flashlights, and rugged field electronics. Its exceptionally low self-discharge rate—typically less than 1% per year—ensures that the battery retains most of its energy even during extended storage, providing dependable readiness for standby and emergency-use systems. Engineered using robust lithium chemistry, the cylindrical battery performs reliably across an extreme temperature range of –40 to +85 deg.C, enabling stable operation in harsh outdoor environments, low-temperature applications, and high-heat industrial zones. Its advanced internal construction incorporates high-grade sealing, durable materials, and optimized electrode design to reduce risks of leakage, passivation, voltage drop, or overheating, ensuring high reliability under both continuous use and demanding pulse-load conditions.
Features
- High voltage response, stable during most of the lifetime of the application
- Energy density up to 830Wh/L
- Low Self-discharge Rate (less than 1% per year after 1 year of storage at +25 Deg.C)
- At +25 deg.C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage
- At +25 Deg.C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity
- Maximum pulse discharge current: 3000mA
Certifications & Standards
| Certification | UN/CE/UL |
