Hioki AC/DC Digital Clamp Meter, CM4375, 1000A
On our shelf and ready to go out today.
Key features
- Easily get into tight spaces between cables thanks to thin sensor structure
- Measure up to 1000A
- Automatic AC/DC function helps boost work efficiency
- Measure DC voltages of up to 1700 V (1)
- Simultaneously measure inrush current in RMS and crest values
- Expanded -25 deg.C to 65 deg.C operating temperature range
Specifications
| SV Code | 499451836529 |
| Brand | Hioki |
| Category | Clamp Meters |
| Unit | Piece |
| Number Of Battery | 2 |
| Battery Life | 40 hrs |
| Battery Chemistry Filter | Alkaline |
| Measuring Voltage Range - AC | 6V/1000V |
| Measuring Voltage Range - DC | 600mV/1500V |
| Measuring Current Range - AC | 1000 A |
| Measuring Frequency Range | 9.999 Hz/999.9 Hz |
| Measuring Current Range - DC | 1000 A |
| AC Voltage Accuracy | +/-0.9% |
| DC Voltage Accuracy | +/-0.5% |
| Frequency Accuracy | +/-0.1% |
| Ac Current Accuracy | +/-1.3% |
| Dc Current Accuracy | +/-1.3% |
| Measuring Resistance Range | 600Ohm/600kOhm |
| Resistance Accuracy | +/-0.7% |
| Measuring Capacitance Range | 1µF/1000mF |
| Capacitance Accuracy | +/-1.9% |
| Jaw Size | 34 mm |
| Accessories Included | Test Lead L9207-10, Carrying Case C0203, 2x LR03 Alkaline battery, Instruction Manual |
| Brand Origin (not manufacture) | Japan |
| Delivery | On our shelf and ready to go out today. |
Description

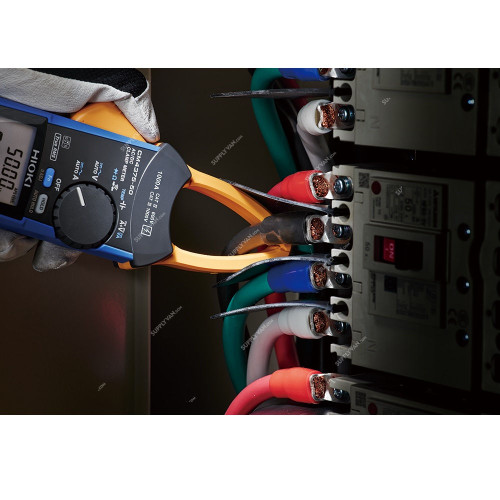

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki's expertise in current sensing technology. The CM4375 is a 1000A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The broad -25 Deg.C to 65 Deg.C operating temperature range and IP54 dustproof and waterproof enclosure to enable professionals to work quickly in challenging situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 1700 V (1) is ideal for the clamp maintenance inspections of electrical and solar power equipment.
Features
- Easily get into tight spaces between cables thanks to thin sensor structure
- Measure up to 1000A
- Automatic AC/DC function helps boost work efficiency
- Measure DC voltages of up to 1700 V (1)
- Simultaneously measure inrush current in RMS and crest values
- Expanded -25 deg.C to 65 deg.C operating temperature range
- temperature -40 to 400 deg.C, add temperature probe accuracy to basic accuracy of +/-0.5% rdg. +/-3.0 deg.C
