Hioki

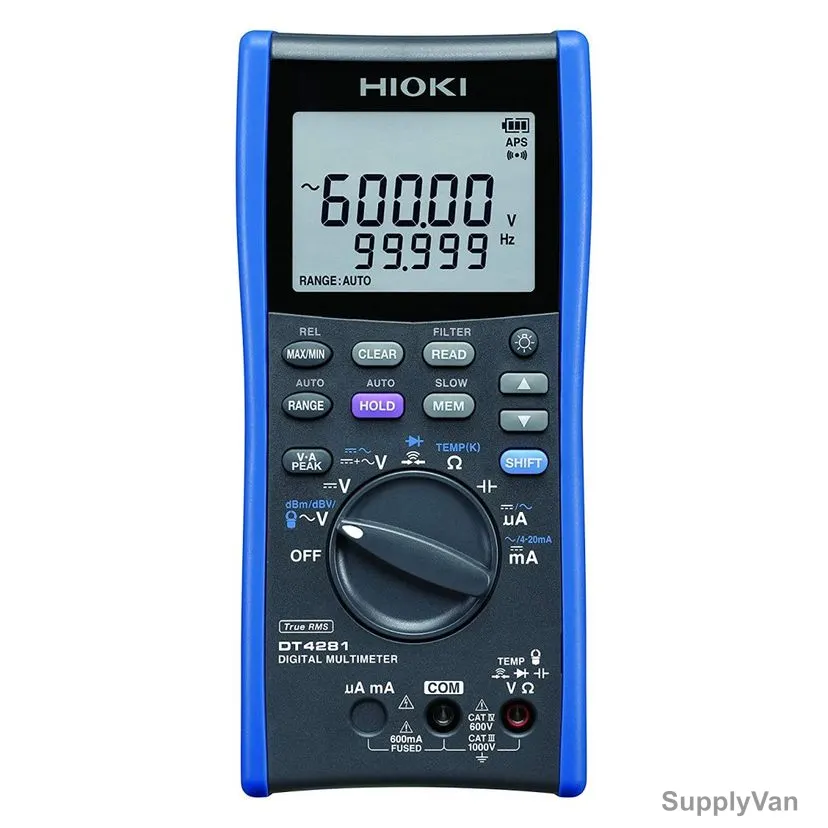

Hioki High End Digital Multimeter, DT4281, 1000V
SV Code: 352786882242Model No.: DT4281
1000 VAC100 hrsAAAlkaline60mV/1000V
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- +/-0.025% DC Voltage basic accuracy, Wide 20Hz to 100kHz AC Voltage frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Includes multiple measurement functions such as DC+ACV, temperature, capacitance, and frequency
- Terminal shutter mechanism (prevents erroneous test lead insertion)
- Measures large currents with optional clamp probe(only for DT4281, which has no 10 A terminal for accident prevention)
- Measure up to 10A with direct input (DT4282 only)
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 352786882242 |
| Brand | Hioki |
| Category | Digital Multimeters |
| Unit | Piece |
| Voltage | 1000 VAC |
| Battery Life | 100 hrs |
| Battery Size | AA |
| Battery Chemistry Filter | Alkaline |
| Measuring Voltage Range - AC | 60mV/1000V |
| Measuring Voltage Range - DC | 60mV/1000V |
| Measuring Current Range - AC | 600µA/600mA |
| Measuring Frequency Range | 99.999 Hz/500 kHz |
| Measuring Current Range - DC | 600µA/600mA |
| AC Voltage Accuracy | +/-0.2% |
| DC Voltage Accuracy | +/-0.025% |
| Frequency Accuracy | +/-0.005% |
| Ac Current Accuracy | +/-0.6% |
| Dc Current Accuracy | +/-0.05% |
| Measuring Resistance Range | 60Ohm/600Mohm |
| Resistance Accuracy | +/-0.03% |
| Measuring Capacitance Range | 1µF/100mF |
| Capacitance Accuracy | +/-1% |
| Accessories Included | Test Lead L9207-10, Instruction Manual, 4x LR6 Alkaline Battery |
| Display Type | LCD |
| Display Count | 60000 |
| Brand Origin (not manufacture) | Japan |
| Delivery | On our shelf and ready to go out today. |
Description
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters. The DT4281 is our top-of-the-line high-precision 60000 count digital multimeter with all of the functions and features required for advanced testing in complex power and electrical applications.
Features
- +/-0.025% DC Voltage basic accuracy, Wide 20Hz to 100kHz AC Voltage frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Includes multiple measurement functions such as DC+ACV, temperature, capacitance, and frequency
- Terminal shutter mechanism (prevents erroneous test lead insertion)
- Measures large currents with optional clamp probe(only for DT4281, which has no 10 A terminal for accident prevention)
- Measure up to 10A with direct input (DT4282 only)
- Dual display lets you check voltage and frequency simultaneously
- Magnetic strap (Optional)
- Rear kickstand
- Broad -15 (5 deg.F) to 55 deg.C (131 deg.F) operating temperature range
