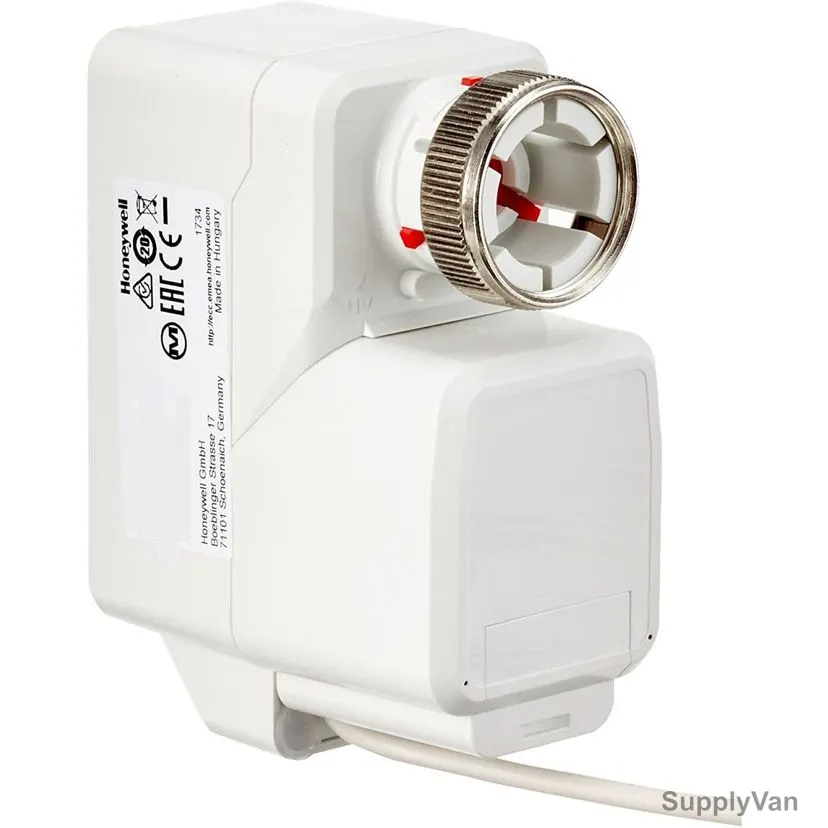

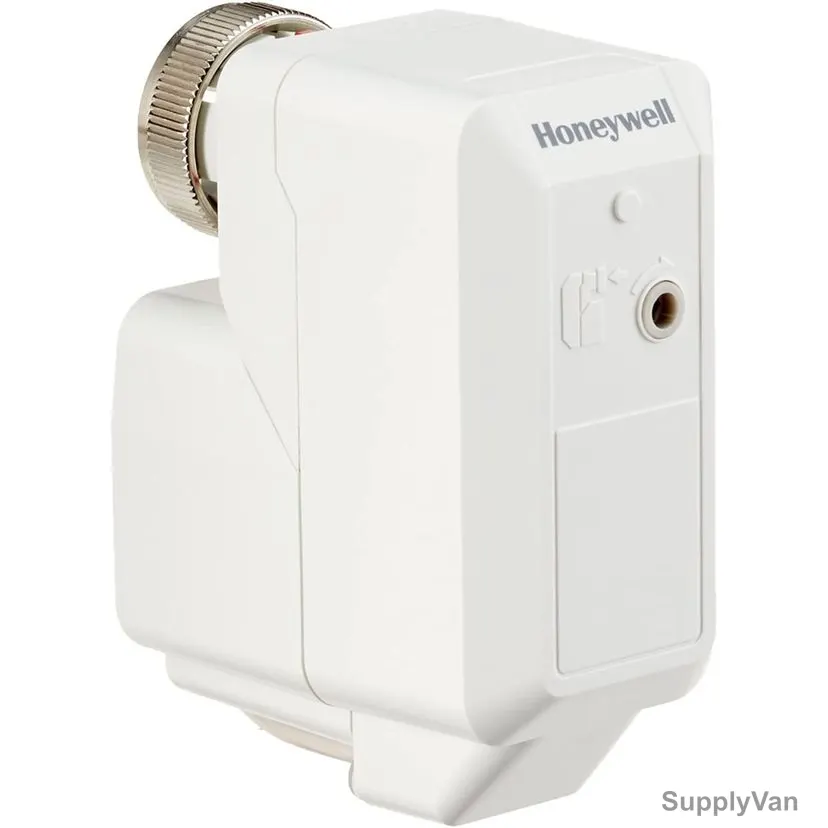

Honeywell 3-Position Floating Electric Valve Actuator, M6410C2023, 6.5MM, 180 N, White

(No reviews yet) Write a Review
Brand
SKU:
854568824142
Minimum Purchase:
1 unit
Item Name:
Electric Valve Actuator
Model:
M6410C2023
Manufacturer:
Honeywell
Color:
White
Voltage:
24VAC
Ingress Protection (IP Rating):
IP43
Frequency:
50/60Hz
Run Time:
150 sec at 50Hz, 125 sec at 60Hz
Operating Ambient Temperature (Degree Celsius):
0 to 60 Deg.C
Strokes:
6.5mm
Cable Length:
1.5 Mtrs
Stem Force:
180 N
Brand Origin (not manufacture):
Germany
Standards:
EN60529
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED476.00
AED371.00 (Incl.VAT)
(You save AED105.00 )
Honeywell 3-Position Floating Electric Valve Actuator, M6410C2023, 6.5MM, 180 N, White

Honeywell 3-Position Floating Electric Valve Actuator, M6410C2023, 6.5MM, 180 N, White

SKU: 854568824142

The Honeywell M6410C/L actuators are specifically designed to provide floating control together with the V5822/23 and V5832/33 series of small linear valves. The M6410C/L actuators are used in fan-coil units, induction units, small reheaters and re-coolers and for zone control applications. They are employed in electronic temperature control systems using hot and/or cold water as the controlled medium. The M6410C/L actuators are suitable for Honeywell Excel series controllers as well as for Honeywell individual room temperature controllers. These controllers track the precise valve position by counting the number of individual control pulses which move the valve from one position to another. For this reason, the actuators do not need end switches or a feedback potentiometer. The absence of these mechanical components ensures long time reliability. The M6410C/L actuators are also compatible with any controller providing intelligent position control and having a built-in shut-off function.
  • Small size allows installation where space is limited
  • Low power consumption
  • Reliable long time operation because mechanical feedback potentiometers and mechanical end switches are not required
  • Magnetic coupling for stem force limitation and self-adjustment of the close-off-point
  • Reversible synchronous AC motor
  • Suitable for three-position modulating control without proportional feedback
  • Supplied with pre-wired connection cable
  • Simple, standardized valve/actuator coupling; no tools required for mounting
  • Visual valve position indicator furnished with actuators
  • Manual operation provided by the valve adjustment cap, extra knob, or with a hexagon key
  • Auxiliary switch
