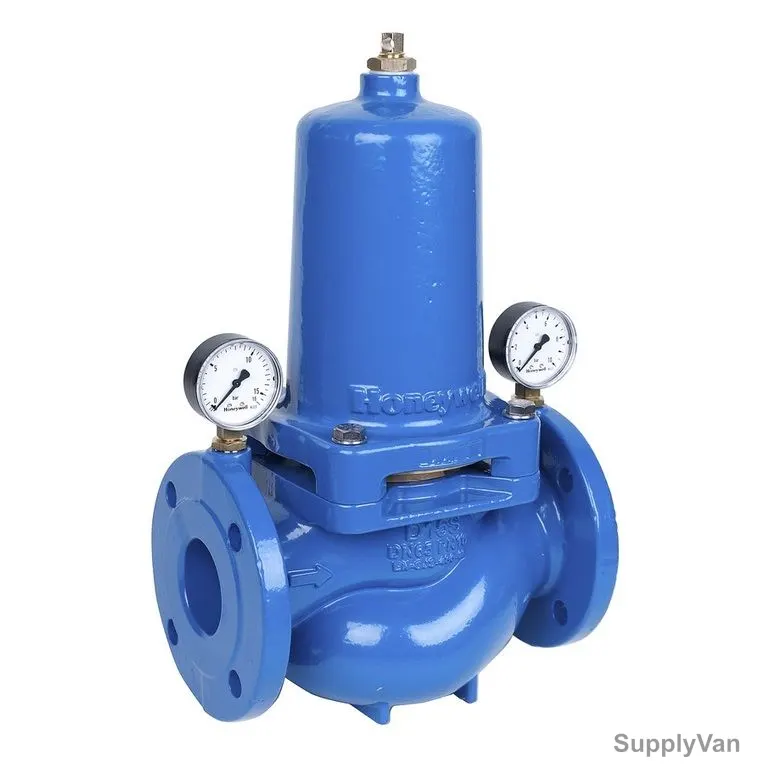

Honeywell Pressure Reducing Valve, D15S-100A, Flanged, 4 Inch

Name: Honeywell Pressure Reducing Valve, D15S-100A, Flanged, 4 Inch
Brand: Honeywell
SKU: honeywell-d15s-100a
Price: 5530.00 AED
Availability: PreOrder

SV Code: 439895428664Model No.: D15S-100A

16 bar350 mm370 mmDN 100BS EN 1567

AED 5,530.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Valves Connectionsize · 4 Inch

4 Inch439895428664AED 5,530.00

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
Patented cartridge solution for easy assembly and maintenance
Three cartridge inserts for all nominal widths make warehousing efficient
High corrosion resistance due to stainless steel cartridge and PA coating
The adjustment spring is not in contact with the drinking water
With inlet and outlet pressure gauge

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	439895428664
Brand	Honeywell
Category	Electric Valve Actuators
Unit	Piece
Pressure	1.5-6.5 bar
Flow Rate	28 cu.m/h
Working Pressure	16 bar
Length	350 mm
Height	370 mm
Diameter Nominal	DN 100
Lifetime	2,00,000
Working Temperature	65 Deg.C
Valves Connectionsize	4 Inch
Connection Type	Flanged
Country of Manufacture	Germany
Brand Origin (not manufacture)	United States
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

Honeywell Pressure Reducing Valve D15S Direct acting pressure reducing valve to protect systems from excessive supply pressure. Design according to DIN EN 1567. DVGW tested. Housing and bonnet made of ductile cast iron with polyamide coating inside and outside for high corrosion protection. Patented cartridge solution for easy installation and maintenance. Brass and stainless steel cartridge insert with EPDM and PU diaphragm and seals. Non-rising spindle for adjusting the output pressure with adjusting screw on the spring bonnet. With inlet and outlet pressure gauge. Valve requiring maintenance according to DIN EN 806-5

Features

Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
Patented cartridge solution for easy assembly and maintenance
Three cartridge inserts for all nominal widths make warehousing efficient
High corrosion resistance due to stainless steel cartridge and PA coating
The adjustment spring is not in contact with the drinking water
With inlet and outlet pressure gauge
