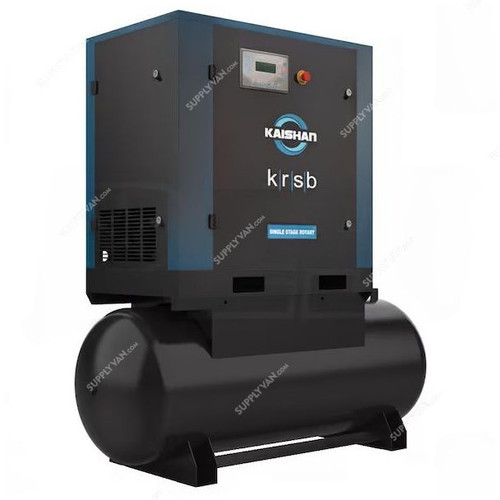

Kaishan Rotary Screw Air Compressor, KRST7-5-10, IP55, 7.5kW, 8-10 Bar, 500 Ltrs Tank Capacity
Key features
- Capacity at Effective Working Pressure - m3/min: 0.87
- Total input Power at Effective Working Pressure – kW: 8.9
- Specific Power at Effective Working Pressure-kW/m3/min: 10.2
- Air-cooled w/ enclosure: 70
- Air Flow Air-cooled Fan - m3/min: 30
- Air-cooled Fan Motor - kW: 0.18
Specifications
| SV Code | 272345936679 |
| Brand | Kaishan |
| Category | Portable Air Compressors |
| Unit | Piece |
| Wattage | 7.5 kW |
| No-Load Speed | 2910 rpm |
| Tank Capacity | 500 L |
| Working Pressure | 8-10 bar |
| Maximum Working Pressure | 10.5 bar |
| Length | 1900 mm |
| Width | 660 mm |
| Height | 1672 mm |
| Application | Workshops, manufacturing, automotive service stations, and general industrial use |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The Kaishan KRST7-5-10 Rotary Screw Air Compressor is a high-performance, energy-efficient solution designed for continuous industrial air supply. Equipped with a 7.5kW motor and an IP55 protection rating, it ensures reliable operation even in demanding environments. The compressor operates within a pressure range of 8–10 bar, making it suitable for a wide range of pneumatic applications. Its rotary screw technology guarantees consistent airflow, reduced noise, and improved efficiency compared to conventional piston compressors. Mounted on a 500-liter horizontal tank, the system provides ample air storage to meet fluctuating demand and maintain stable pressure levels. The user-friendly control panel with digital display ensures easy monitoring of operating status and performance parameters. Built with durable components, the KRST7-5-10 minimizes maintenance requirements while maximizing service life.
Features
- Capacity at Effective Working Pressure - m3/min: 0.87
- Total input Power at Effective Working Pressure – kW: 8.9
- Specific Power at Effective Working Pressure-kW/m3/min: 10.2
- Air-cooled w/ enclosure: 70
- Air Flow Air-cooled Fan - m3/min: 30
- Air-cooled Fan Motor - kW: 0.18
- Large tank gives more stored air, reduces start/stop cycles, smooths out demand surges
- Digital/Microprocessor-based Control Panel: For monitoring system status, pressures, service alerts, fault detection
- Belt Drive System: To connect motor and airend (pump) via belt, allowing some flexibility, easier maintenance
- Automatic Belt Tensioning: To reduce maintenance, ensure belt life, limit energy loss from loose belts
- High-Efficiency Inlet Filtration: Large air intake filtration to reduce dust, maintain airflow, reduce pressure drop
- Discharge Pipe Size: Rp3/4
- Compressor: 2-year standard coverage on key components, with an optional 5-year extended warranty available with a maintenance contract (subject to terms and conditions)
- Dryer: 2-year standard warranty
Certifications & Standards
| Ingress Protection | IP55 |
