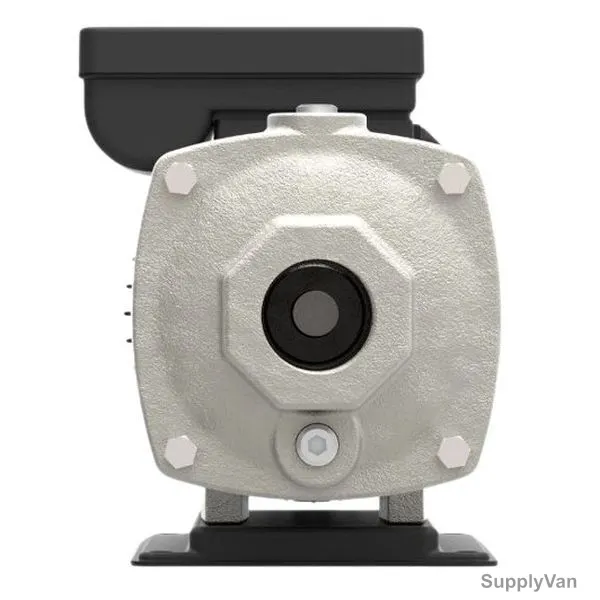

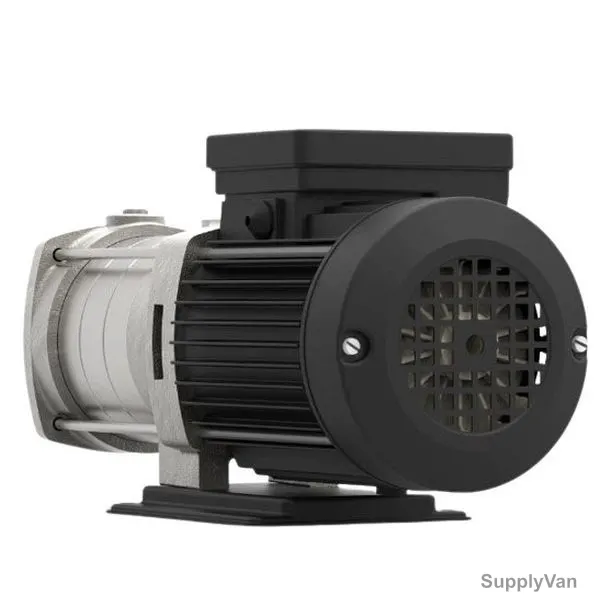

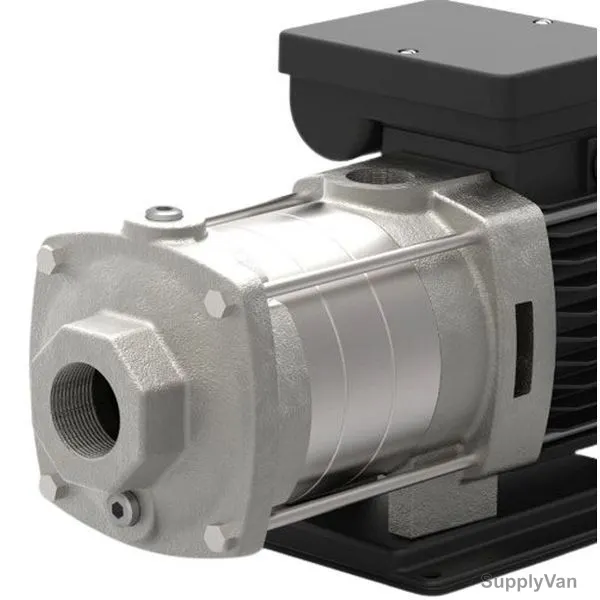

Lubi Horizontal Multistage Centrifugal Water Pump, 1.10kW, 1.50 HP, 2900 RPM, IP55
SV Code: 595949571767
230-400 VAC50 Hz2900 rpm1 and 310 bar
AED 1,830.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Cost competitive, horizontal, multistage, non self-priming, close coupled centrifugal pumps
- The pump suction and delivery casings shall be of CF8M, Investment Cast and have axial suction and radial discharge port
- The pump shall have fabricated closed type impellers and bowl diffuser casings made out of AISI 304 Stainless steel sheet metal
- The Pump shaft sealing will be by mechanical shaft seal of Carbon/Ceramic/Viton/AISI 316 Construction suitable for 10 bar
- The pump shall be close coupled with a totally enclosed fan cooled type
- All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 595949571767 |
| Brand | Lubi |
| Category | Multi Stage Centrifugal Pumps |
| Unit | Piece |
| Voltage | 230-400 VAC |
| Wattage | 1.10 kW |
| Frequency | 50 Hz |
| No-Load Speed | 2900 rpm |
| Phase | 1 and 3 |
| Power (hp) | 1.5 hp |
| Temperature Range | 0 to 90 Deg.C |
| Maximum Pressure | 10 bar |
| Flow Rate | 0.5-28 cubic.m/h |
| Frame Size | 80 |
| Colour | Black and Grey |
| Material | Stainless steel |
| Application | Air Conditioning Systems, Washing and Cleaning Systems, Domestic Water Supply |
| Insulation Class | F |
| Max Head | Up to 77 Mtrs |
| Delivery | On our shelf and ready to go out today. |
Description
The pump is fitted with a maintenance-free, mechanical shaft seal. The pumps have axial suction port and radial discharge port and are mounted on a base plate. The pump is fitted with a totally enclosed, fan-cooled, squirrel-cage induction motor.
Features
- Cost competitive, horizontal, multistage, non self-priming, close coupled centrifugal pumps
- The pump suction and delivery casings shall be of CF8M, Investment Cast and have axial suction and radial discharge port
- The pump shall have fabricated closed type impellers and bowl diffuser casings made out of AISI 304 Stainless steel sheet metal
- The Pump shaft sealing will be by mechanical shaft seal of Carbon/Ceramic/Viton/AISI 316 Construction suitable for 10 bar
- The pump shall be close coupled with a totally enclosed fan cooled type
- All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns
- Single-phase motors have built-in thermal overload protection
- Three-phase motors must be connected to a motor starter according to local regulations
- Designed for small domestic and industrial water supply systems
Certifications & Standards
| Ingress Protection | IP55 |
