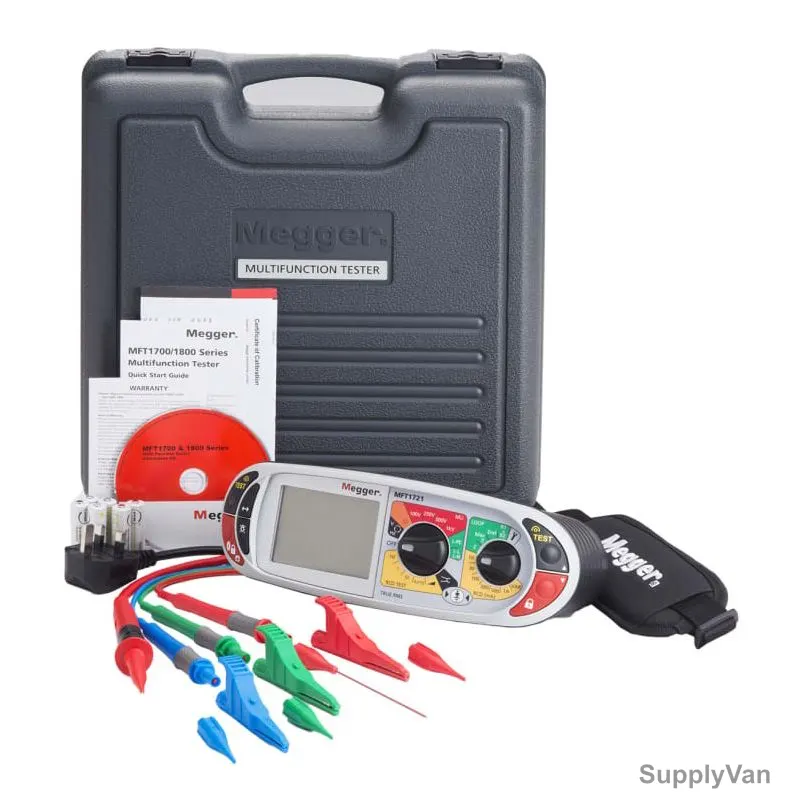

Megger Multifunction Installation Tester, MFT1721, LCD, 100V, 250V, 500V, 1000V
Key features
- Continuity: 15mA test for inductive loads and a 200mA test suitable for R1+R2 and R2 testing with adjustable buzzer threshold
- Insulation Resistance: 100V, 250V, 500V and 1000V tests with adjustable buzzer threshold
- Loop: 2 and 3 wire test options featuring a patented anti-trip on both 2 and 3 wire test configurations. PSCC/PFC are tandem displayed with the loop test result. Also conducts line to line tests suitable for three phase installations
- RCD: Ramp, manual (0.5x, 1x, 5x) or automatically test 10, 30, 100, 300, 500 and 1000mA AC, A, S, programmable, Type B and 3 phase RCDs
- TRMS Voltage: Accurately measure supply voltage and frequency and phase rotation
- Loop Impedance Test Type: 2 Wire, 3 Wire
Specifications
| SV Code | 554958612254 |
| Brand | Megger |
| Category | Multifunction Testers |
| Unit | Piece |
| Battery Type | AA Alkaline |
| Power Source Type | Battery |
| Test Voltage | 100V, 250V, 500V, 1000V |
| Plug Type | BS 1363, LT 300-EN-BS |
| Width | 85 mm |
| Height | 150 mm |
| Depth | 235 mm |
| Operating Temperature | -10 to 55 Deg.C |
| Storage Temperature | -25 to 70 Deg.C |
| Display Type | LCD |
| Interface Type | Wireless |
| Altitude | 2000 Mtr |
| Brand Origin (not manufacture) | Malaysia |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

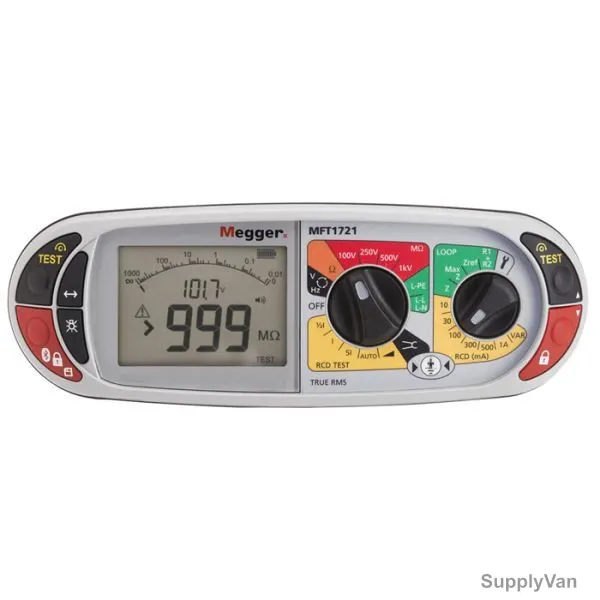

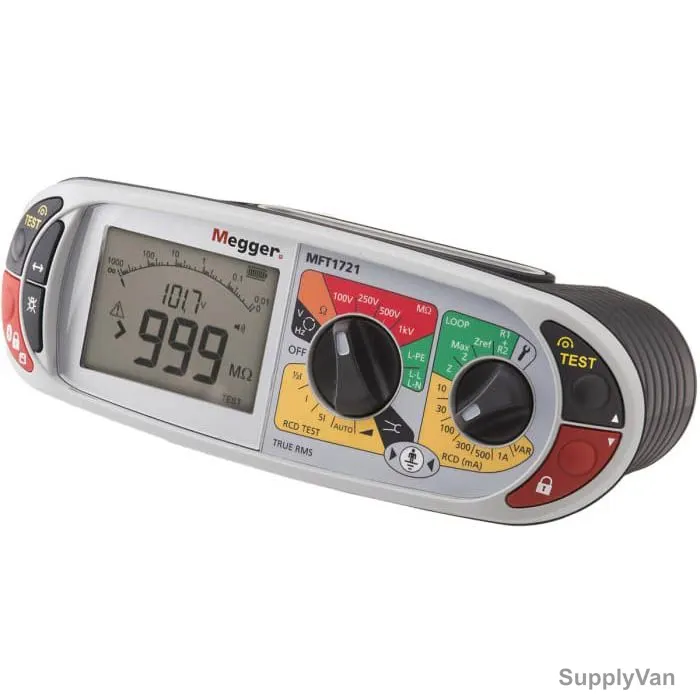

The Megger MFT1721 Multifunction Tester is suitable for maintaining and certifying single and three phase electrical installations in order to ensure compliance with Part P of the building regulations and the IET 17th edition wiring regulations (BS7671). Capable of conducting line to line loop tests, confirming phase sequences and testing 3 phase RCDs, the Megger MFT1721 multifunction tester is ideal for certifying three phase electrical installations. Moreover, the MFT1721 is one of a handful of installation testers capable of testing specialist type B RCDs commonly found protecting temporary generator supplies and other DC installations. The MFT1721 can store a ‘Z-ref’ value (Ze measurement), calculating and displaying an R1+R2 reading after conducting a Zs test. Although, this feature should be reserved for confirming that a previously recorded R1+R2 continuity value is indeed correct, having energising the circuit for live testing. Two rotary dials provide a user-friendly means of operating the instrument, with primary and secondary test settings being colour coded, reducing the chance of selecting an incorrect function or range. Test results are displayed on a large, dual format, crystal clear display that can be viewed from even the most acute of angles. Designed for ease of use in the harshest environments, the instruments within the Megger MFT Multifunction Tester range are encased in hard-wearing rubber, improving grip and providing additional shock protection in the event of impact. All of the models in the range include a 'test' and 'lock' button on each side of the instrument for left and right-handed users alike, while also being IP54 rated providing ingress protection in poor conditions.
Features
- Continuity: 15mA test for inductive loads and a 200mA test suitable for R1+R2 and R2 testing with adjustable buzzer threshold
- Insulation Resistance: 100V, 250V, 500V and 1000V tests with adjustable buzzer threshold
- Loop: 2 and 3 wire test options featuring a patented anti-trip on both 2 and 3 wire test configurations. PSCC/PFC are tandem displayed with the loop test result. Also conducts line to line tests suitable for three phase installations
- RCD: Ramp, manual (0.5x, 1x, 5x) or automatically test 10, 30, 100, 300, 500 and 1000mA AC, A, S, programmable, Type B and 3 phase RCDs
- TRMS Voltage: Accurately measure supply voltage and frequency and phase rotation
- Loop Impedance Test Type: 2 Wire, 3 Wire
- Maximum Voltage Measurement: 600V
- Test Type: Continuity
- Continuity Test Current: 200mA
- RCD Test Type: A, AC, B, S
- Safety Category Voltage: 300V, 600V
- Continuity Resistance: 0.01 Ohm to 99.9 kOhm
Certifications & Standards
| Ingress Protection | IP54 |
