Schneider Electric Key Switch Selector, XB5AG61, Plastic, 2 Position, 22.5MM Dia, 1 NO, Black
Key features
- Operator position information: 2 positions 90 Deg
- Type of keylock: Key 455
- Contacts type and composition: 1 NO
- Torque value: 0.14 N.m No changing electrical state
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
Specifications
| SV Code | 192675959895 |
| Brand | Schneider Electric |
| Category | Pilot Lights and Accessories |
| Unit | Piece |
| Insulation Voltage | 600 VAC |
| Short Circuit Current | 10 A |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 96 mm |
| Diameter | 22.5 mm |
| Colour | Black |
| Storage Temperature | - 40 to 70 Deg.C |
| Operation Temperature | - 40 to 70 Deg.C |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

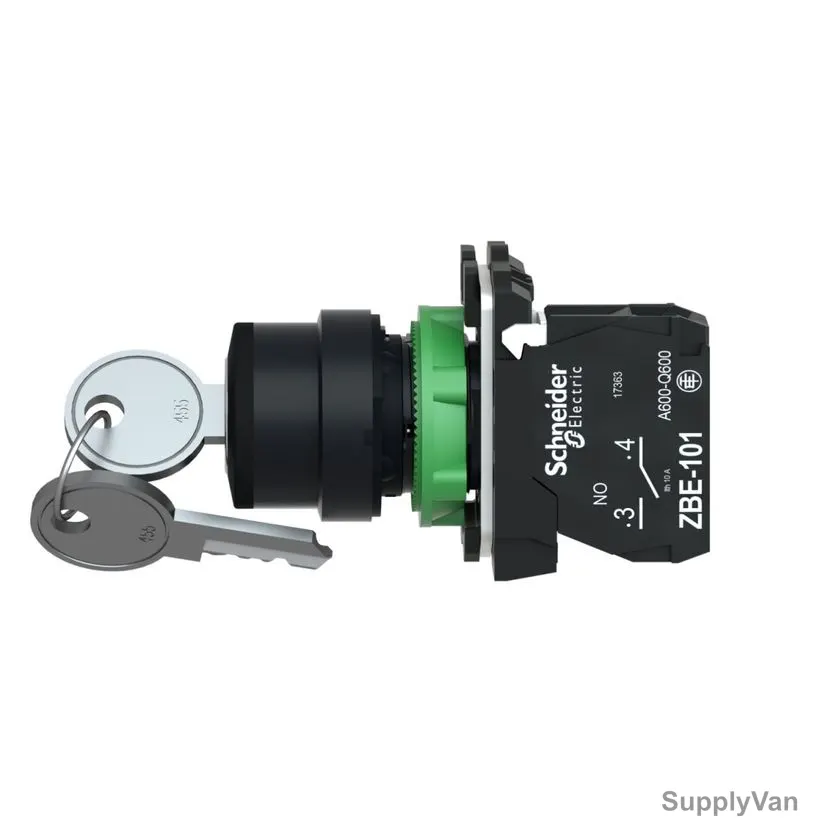

This Harmony XB5, modular black key selector switch (key no.455) has 2 positions, operates with a spring-return-to-left mechanism with key withdrawal on the left position and uses screw clamp terminals. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- Operator position information: 2 positions 90 Deg
- Type of keylock: Key 455
- Contacts type and composition: 1 NO
- Torque value: 0.14 N.m No changing electrical state
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
Certifications & Standards
| Ingress Protection | IP69 |
