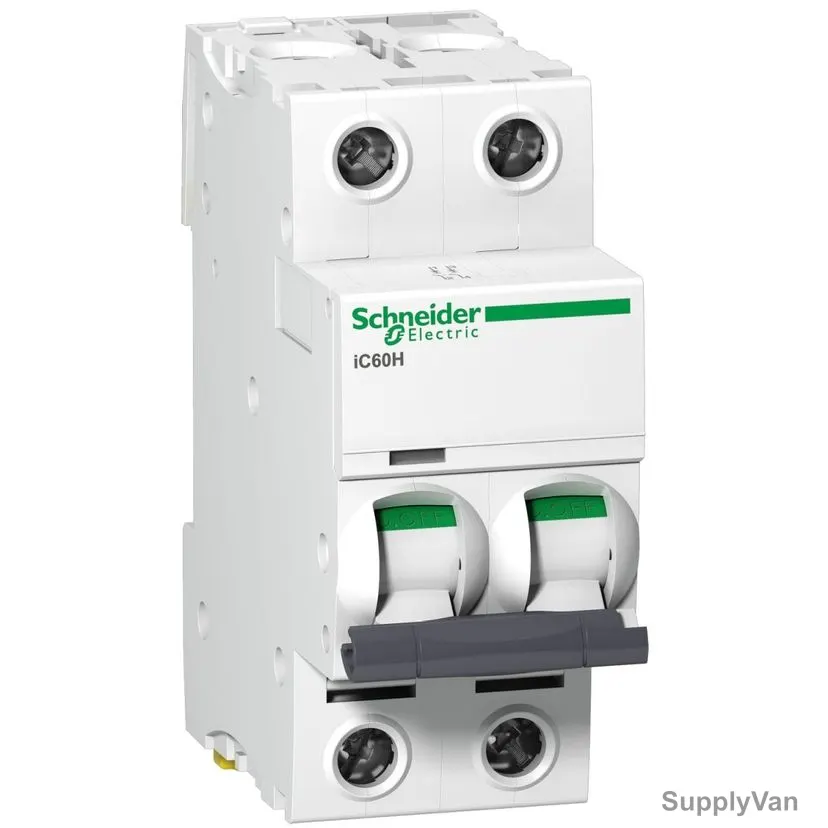

Schneider Electric Miniature Circuit Breaker, A9F54216, Acti9 iC60H, 2 Pole, Curve C, 440VAC, 16A
SV Code: 414625268545Model No.: A9F54216
440 VAC50/60 Hz500 VACUp to 30kA36 mm
AED 57.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Suitability for industrial isolation according to IEC/EN 60947-2 standard
- Combine short-circuit and overload currents protection
- VisiTrip system for fast detection of faulty outgoers for shorter repair times
- VisiSafe system for offering enhanced security when it comes to circuit protection
- Wire stripping length: 14mm for top or bottom connection
Fast delivery Genuine & warranty Bulk quotes
This model family (37 options)
Specifications
| SV Code | 414625268545 |
| Brand | Schneider Electric |
| Category | Miniature Circuit Breakers - MCB |
| Unit | Piece |
| Voltage | 440 VAC |
| Frequency | 50/60 Hz |
| Insulation Voltage | 500 VAC |
| Breaking Capacity | Up to 30kA |
| Width | 36 mm |
| Height | 85 mm |
| Depth | 78.5 mm |
| Colour | White |
| Amps | 16 A |
| Mounting Type | DIN Rail |
| Number of Poles | 2 |
| Storage Temp | -40 to 85 Deg.C |
| Relative Humidity | 95% |
| Control Type | Toggle |
| Operation Temperature | -35 to 70 Deg.C |
| Curve Type | C |
| Delivery | On our shelf and ready to go out today. |
Description
The Schneider Electric A9F54216 is a high-performance miniature circuit breaker from the Acti9 iC60H series, designed for reliable protection against overloads and short circuits in residential, commercial, and industrial installations. This 2-pole MCB features a C-curve tripping characteristic, making it suitable for moderate inrush current applications such as lighting and small motor loads.
Features
- Suitability for industrial isolation according to IEC/EN 60947-2 standard
- Combine short-circuit and overload currents protection
- VisiTrip system for fast detection of faulty outgoers for shorter repair times
- VisiSafe system for offering enhanced security when it comes to circuit protection
- Wire stripping length: 14mm for top or bottom connection
Certifications & Standards
| Standards | IEC 60898-1/IEC 60947-2 |
| Ingress Protection | IP20 |
