Schneider Electric

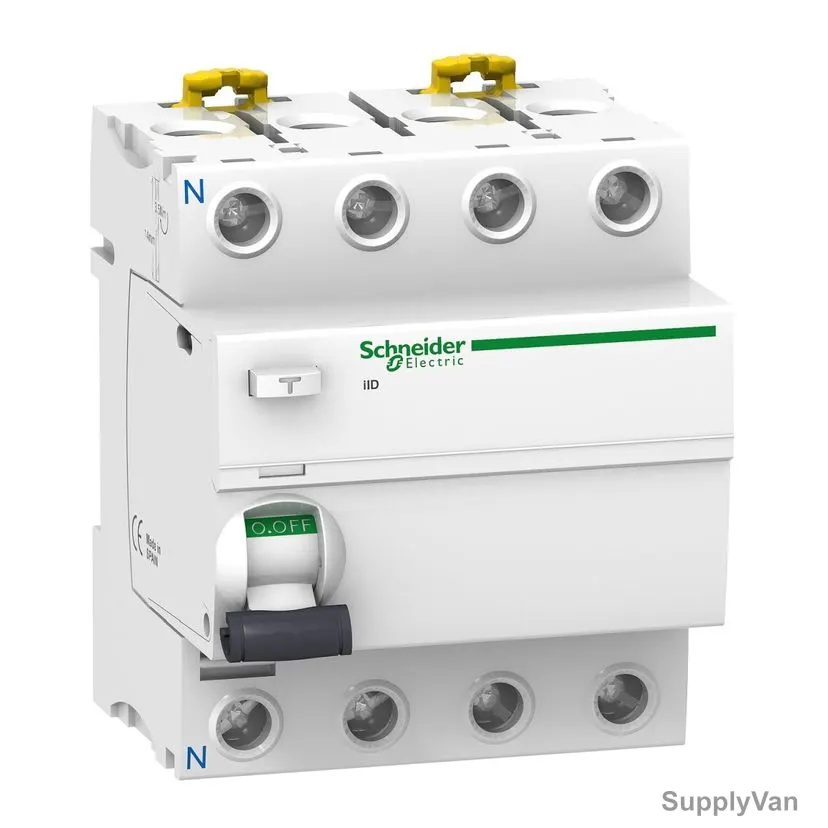

Schneider Electric Residual Current Circuit Breaker, A9R35440, Acti 9, 4 Pole, 40A, 300mA
SV Code: 454354185366Model No.: A9R35440
50/60 Hz500 VAC380-415 VAC10 kA72 mm
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Earth-leakage sensitivity: 300mA
- Earth-leakage protection time delay: Selective
- Wire stripping length: 14mm for top or bottom connection
- Rated impulse withstand voltage: 6kV
- Mechanical durability: 20000 cycles
- Electrical durability: AC-1: 15000 cycles
Fast delivery Genuine & warranty Bulk quotes
This model family (48 options)
Specifications
| SV Code | 454354185366 |
| Brand | Schneider Electric |
| Category | Residual Current Circuit Breakers |
| Unit | Piece |
| Frequency | 50/60 Hz |
| Insulation Voltage | 500 VAC |
| Operational Voltage | 380-415 VAC |
| Short Circuit Current | 10 kA |
| Torque | 3.5 N.m top or bottom |
| Width | 72 mm |
| Height | 91 mm |
| Depth | 73.5 mm |
| Colour | White |
| Amps | 40 A |
| Operating Temperature | -25 to 60 Deg.C |
| Number of Poles | 4 |
| Storage Temperature | -40 to 85 Deg.C |
| Pollution Degree | -25…60 °C |
| Delivery | On our shelf and ready to go out today. |
Description
Schneider Electric Residual Current Circuit Breaker, A9R35440, Acti 9, 4 Pole, 40A, 300mA. Genuine Schneider Electric product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.
Features
- Earth-leakage sensitivity: 300mA
- Earth-leakage protection time delay: Selective
- Wire stripping length: 14mm for top or bottom connection
- Rated impulse withstand voltage: 6kV
- Mechanical durability: 20000 cycles
- Electrical durability: AC-1: 15000 cycles
- Protection of persons against electric shock by indirect contact
- Suitability for residential isolation according to IEC 61008-1 and IEC 61008-2-1 standards
- Protection of installations against the risk of fire
- Easy to install with unified terminal design and wiring indication
- Earth fault indication by a red mechanical indicator in front face
