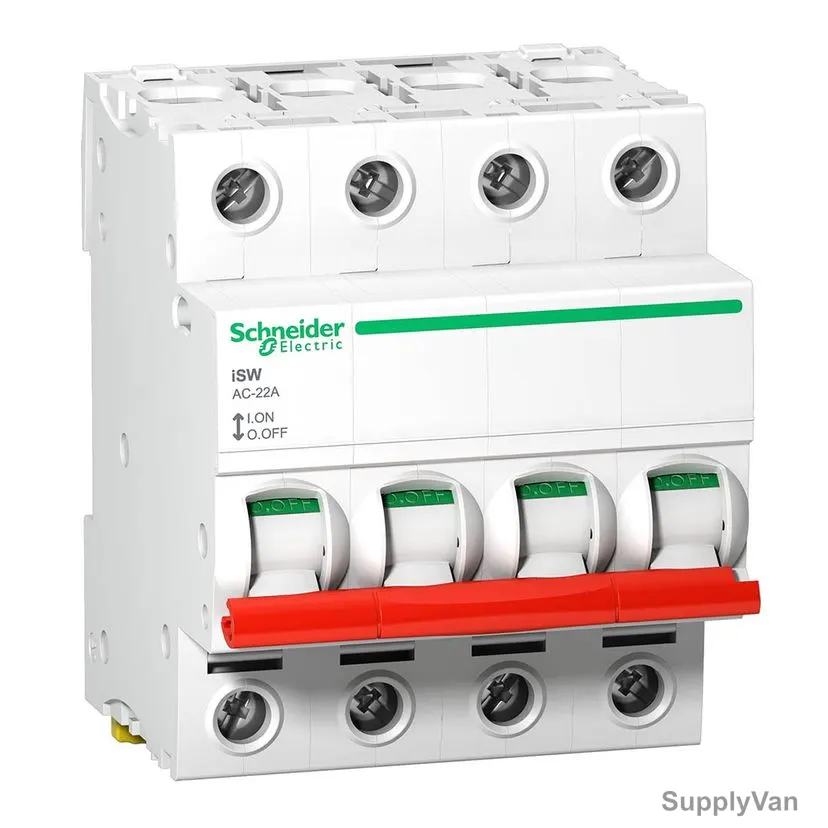

Schneider Electric Switch Disconnector, A9S66440, Acti9 iSW, 4P, 40A, 415VAC
On our shelf and ready to go out today.
Key features
- Utilisation Category: AC-22A
- Rated Short-Circuit Making Capacity: 4.2 kA switch-disconnector alone
- Rated Short-Circuit Withstand Current: 1260A
- Rated Impulse Withstand Voltage: 6 kV
- Mounting Mode: Fixed
- Mounting Support: DIN Rail
This model family (3 options)
| Product | Price | Availability |
|---|---|---|
| Schneider Electric Switch Disconnector, A9S66340, Acti9 iSW, 3P, 40A, 415VAC | AED 58.00 | In stock |
| Schneider Electric Switch Disconnector, A9S66440, Acti9 iSW, 4P, 40A, 415VAC viewing | AED 83.00 | In stock |
| Schneider Electric Switch Disconnector, A9S60363, Acti9 iSW, 3P, 63A, 415V | AED 98.17 | Quote |
Specifications
| SV Code | 638828631481 |
| Brand | Schneider Electric |
| Category | Switch Disconnectors |
| Unit | Piece |
| Frequency | 50/60Hz |
| Current | 40 A |
| Insulation Voltage | 500 VAC |
| Operational Voltage | 415 VAC |
| Width | 72 mm |
| Height | 85 mm |
| Depth | 73 mm |
| Colour | White |
| Operating Temp | -25 to 60 Deg.C |
| Number of Poles | 4P |
| Storage Temperature | -40 to 85 Deg.C |
| Relative Humidity | 0.95 |
| Control Type | Toggle |
| Pollution Degree | 3 |
| Brand Origin (not manufacture) | France |
| Delivery | On our shelf and ready to go out today. |
Description
The Schneider Electric Switch Disconnector, Acti9 iSW, is a high-quality and reliable electrical switch designed for use in a range of applications. It is a 4-pole switch disconnector, which means that it can be used to disconnect four electrical circuits simultaneously. The switch disconnector has a current rating of 40A and a maximum voltage rating of 415VAC. It is designed to be used in industrial and commercial environments and is ideal for use in motor control centers, distribution boards, and switchboards. The Acti9 iSW switch disconnector is built to the highest standards of quality and safety, with a robust and durable design that ensures its longevity and reliability. It features a compact and modular design that makes it easy to install and integrate into existing electrical systems.
Features
- Utilisation Category: AC-22A
- Rated Short-Circuit Making Capacity: 4.2 kA switch-disconnector alone
- Rated Short-Circuit Withstand Current: 1260A
- Rated Impulse Withstand Voltage: 6 kV
- Mounting Mode: Fixed
- Mounting Support: DIN Rail
- 9mm Pitches: 8
- Mechanical Durability: 20000 cycles
- Electrical Durability: 15000 cycles
- Wire Stripping Length: 9mm
- Tightening Torque: 3.5 Nm
- Standards: IEC 60947-3, AS 60947-3, BS EN 60947-3, NZS 60947-3, EN 60947-3
Certifications & Standards
| Ingress Protection | IP20 |
