Schneider Electric

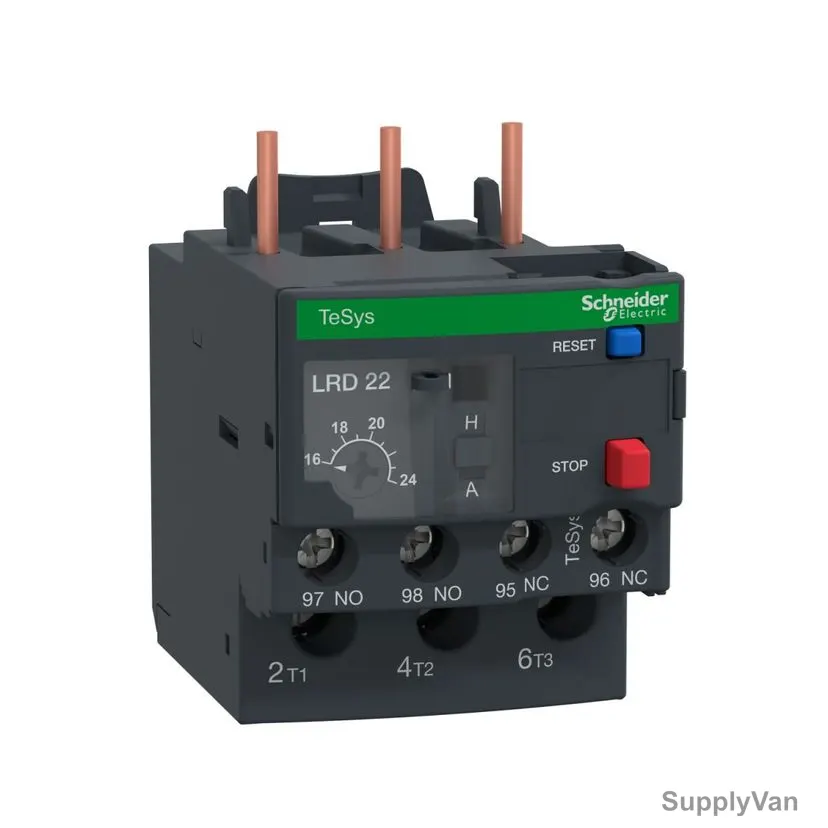

Schneider Electric Thermal Overload Relay, LRD22, TeSys LRD, 16-24A, Class 10A
SV Code: 656354131387Model No.: LRD22
0-400 Hz600 VAC690 VAC16-24 A45 mm
In stock — ships today
On our shelf and ready to go out today.
Current Range · 16-24 A
16-24 A656354131387AED 92.00
In stock — ships today
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Tripping Threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- Auxiliary Contact Composition: 1 NO + 1 NC
- Conventional Free Air Thermal Current: 5A for signalling circuit
- Rated Impulse Withstand Voltage: 6 kV
Fast delivery Genuine & warranty Bulk quotes
This model family (5 options)
| Product | Price | Availability |
|---|---|---|
| Schneider Electric Thermal Overload Relay, LRD14, TeSys LRD, 690V, 7-10A, Class 10 | AED 80.00 | Quote |
| Schneider Electric Thermal Overload Relay, LRD16, TeSys LRD, 9-13A, Class 10A | AED 84.00 | In stock |
| Schneider Electric Thermal Overload Relay, LRD21, TeSys LRD, 12-18A, Class 10A | AED 88.00 | In stock |
| Schneider Electric Thermal Overload Relay, LRD22, TeSys LRD, 16-24A, Class 10A viewing | AED 92.00 | In stock |
| Schneider Electric Thermal Overload Relay, LRD340, TeSys LRD, 690VAC, 30-40A, 1NO+1NC | AED 216.00 | Quote |
Specifications
| SV Code | 656354131387 |
| Brand | Schneider Electric |
| Category | Relays and Accessories |
| Unit | Piece |
| Frequency | 0-400 Hz |
| Insulation Voltage | 600 VAC |
| Operational Voltage | 690 VAC |
| Current Range | 16-24 A |
| Torque | 1.7 Nm (Control Unit), 2.5 Nm (Power Unit) |
| Width | 45 mm |
| Height | 66 mm |
| Depth | 70 mm |
| Colour | Black |
| For Use With | LC1D25, LC1D32, LC1D38 Contactors |
| Operating Temp | -20 to 60 Deg.C |
| Mounting Type | Plate and Rail |
| Storage Temperature | -60 to 70 Deg.C |
| Control Type | Red push-button: stop, Blue push-button: reset |
| Class Rating | 10A |
| Brand Origin (not manufacture) | France |
| Delivery | On our shelf and ready to go out today. |
Description
Schneider Electric Thermal Overload Relay, LRD22, TeSys LRD, 16-24A, Class 10A. Genuine Schneider Electric product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.
Features
- Tripping Threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- Auxiliary Contact Composition: 1 NO + 1 NC
- Conventional Free Air Thermal Current: 5A for signalling circuit
- Rated Impulse Withstand Voltage: 6 kV
Certifications & Standards
| Ingress Protection | IP20 |
