Siemens

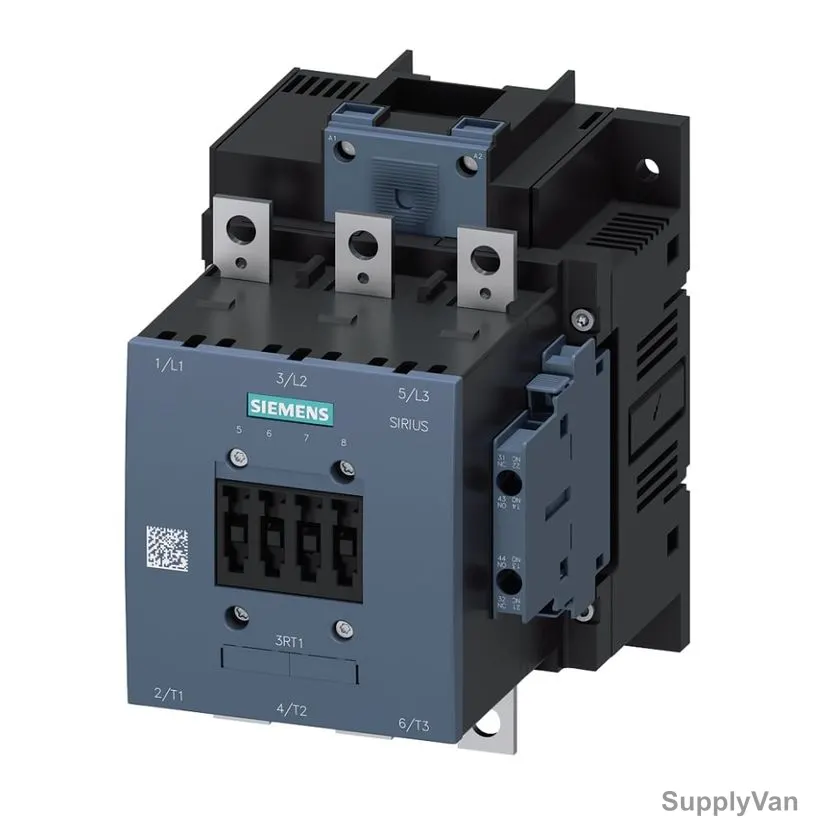

Siemens Power Contactor, 3RT1056-6AP36, SIRIUS, 3 Pole, 400VAC, 90 kW, 2 NO+2 NC, 185A
SV Code: 917549881398Model No.: 3RT1056-6AP36
400 VAC185 AIEC 60947-4-13Germany
AED 1,905.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Rated up to 185 A at 400 V AC-3 duty, suitable for heavy industrial loads
- Works with 220-240 V AC/DC coil voltage for flexible control applications
- Makes it ideal for three-phase motor control and power switching
- Includes 2 NO (normally open) + 2 NC (normally closed) auxiliary contacts for feedback and control logic
- Compact, modular design for panel mounting with busbar or screw connections
- Complies with IEC 60947-4-1 motor control standards with high mechanical and electrical endurance
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 917549881398 |
| Brand | Siemens |
| Category | IEC Magnetic Contactors |
| Unit | Piece |
| Voltage | 400 VAC |
| Current | 185 A |
| Operating Temperature | -25 to +60 Deg.C |
| Number of Poles | 3 |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The Siemens 3RT1056-6AP36 is a heavy-duty three-pole power contactor designed for industrial motor control and electrical switching applications. It is part of Siemens’ SIRIUS 3RT contactor family engineered to reliably switch and control three-phase loads such as motors, heaters, and inductive circuits in factories, industrial panels, HVAC systems, and large automation applications. This contactor supports both AC and DC coils and is built for long service life with high switching endurance.
Features
- Rated up to 185 A at 400 V AC-3 duty, suitable for heavy industrial loads
- Works with 220-240 V AC/DC coil voltage for flexible control applications
- Makes it ideal for three-phase motor control and power switching
- Includes 2 NO (normally open) + 2 NC (normally closed) auxiliary contacts for feedback and control logic
- Compact, modular design for panel mounting with busbar or screw connections
- Complies with IEC 60947-4-1 motor control standards with high mechanical and electrical endurance
- Designed to operate reliably in temperatures from -25 to +60 Deg.C
- Auxiliary Contacts: 2 NO + 2 NC
- Coil Voltage: 220-240VAC/DC
- Rated Power: 90kW
- Protection Class: IP00 (terminal area) / IP20 (with front cover option)
- Operating Cycle Life: Up to ~10 000 000 mechanical cycles
- Applications: Industrial motor starters, control panels, automation systems
Certifications & Standards
| Standards | IEC 60947-4-1 |
