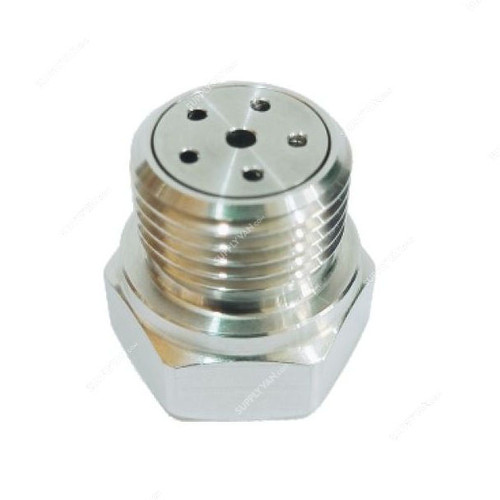

Spraytech DM Series ABC Angular Full Cone Spray Nozzles

DM Series ABC Angular Full Cone Spray Nozzle form uniform spray pattern and spray coverage. It provides solid full cone pattern with uniform spray distribution of medium to large size drops resulting from their unique vane design.

Characteristic: Angular drill disc vane design
Type: Full cone spray pattern

45° SPRAY ANGLE	CONNECTION END	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/2”	3/4”	1”
MODEL NO.	BSP	BSP	BSP	PRESSURE [BAR]
					0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	D	HEX
DM13.400	•			2.3	2.00	2.83	4.00	4.90	6.32	7.48	8.94	1/2"	32	13	21	22
DM13.475	•			2.5	2.37	3.36	4.75	5.82	7.51	8.89	10.62	Weight (Metals) = 71 gms. Approx
DM13.650	•			2.9	3.25	4.60	6.50	7.96	10.28	12.16	14.53	3/4"	42	15	32	27
DM13.800	•			3.3	4.00	5.66	8.00	9.80	12.65	14.97	17.89	Weight (Metals) = xx gms. Approx
DM23.100	•			3.6	5.00	7.07	10.00	12.25	15.81	18.71	22.36	1"	56	18	39	36
DM23.125	•	•		4.1	6.25	8.84	12.50	15.31	19.76	23.39	27.95	Weight (Metals) = xx gms. Approx
DM23.160	•	•		4.6	8.00	11.31	16.00	19.60	25.30	29.93	35.78
DM23.180		•		5.9	9.00	12.73	18.00	22.05	28.46	33.67	40.25
DM23.200		•	•	5.2	10.00	14.14	20.00	24.49	31.62	37.42	44.72
DM23.225		•	•	5.5	11.25	15.91	22.50	27.56	35.58	42.09	50.31
DM23.250		•	•	5.8	12.50	17.68	25.00	30.62	39.53	46.77	55.90
DM23.320		•	•	6.5	16.00	22.63	32.00	39.19	50.60	59.87	71.55
DM23.400			•	7.3	20.00	28.28	40.00	48.99	63.25	74.83	89.44
DM23.520			•	8.3	26.00	36.77	52.00	63.69	82.22	97.28	116.28
DM23.650			•	9.3	32.50	45.96	65.00	79.61	102.77	121.60	145.34
DM23.720			•	9.8	36.00	50.91	72.00	88.18	113.8	134.7	161.0



60° SPRAY ANGLE	CONNECTION END	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/2”	3/4”	1”
MODEL NO.	BSP	BSP	BSP	PRESSURE [BAR]
					0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	D	HEX
DM14.400	•			2.3	2.00	2.83	4.00	4.90	6.32	7.48	8.94	1/2"	32	13	21	22
DM14.475	•			2.5	2.37	3.36	4.75	5.82	7.51	8.89	10.62	Weight (Metals) = 71 gms. Approx
DM14.650	•			2.9	3.25	4.60	6.50	7.96	10.28	12.16	14.53	3/4"	42	15	32	27
DM14.800	•			3.3	4.00	5.66	8.00	9.80	12.65	14.97	17.89	Weight (Metals) = xx gms. Approx
DM24.100	•			3.6	5.00	7.07	10.00	12.25	15.81	18.71	22.36	1"	56	18	39	36
DM24.125	•	•		4.1	6.25	8.84	12.50	15.31	19.76	23.39	27.95	Weight (Metals) = xx gms. Approx
DM24.160	•	•		4.6	8.00	11.31	16.00	19.60	25.30	29.93	35.78
DM24.180		•		5.9	9.00	12.73	18.00	22.05	28.46	33.67	40.25
DM24.200		•	•	5.2	10.00	14.14	20.00	24.49	31.62	37.42	44.72
DM24.225		•	•	5.5	11.25	15.91	22.50	27.56	35.58	42.09	50.31
DM24.250		•	•	5.8	12.50	17.68	25.00	30.62	39.53	46.77	55.90
DM24.320		•	•	6.5	16.00	22.63	32.00	39.19	50.60	59.87	71.55
DM24.400			•	7.3	20.00	28.28	40.00	48.99	63.25	74.83	89.44
DM24.520			•	8.3	26.00	36.77	52.00	63.69	82.22	97.28	116.28
DM24.650			•	9.3	32.50	45.96	65.00	79.61	102.77	121.60	145.34
DM24.720			•	9.8	36.00	50.91	72.00	88.18	113.8	134.7	161.0



90° SPRAY ANGLE	CONNECTION END	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/2”	3/4”	1”
MODEL NO.	BSP BSPT NPT	BSP BSPT NPT	BSP BSPT NPT	PRESSURE [BAR]
					0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	D	HEX
DM16.400	•			2.3	2.00	2.83	4.00	4.90	6.32	7.48	8.94	1/2"	32	13	21	22
DM16.475	•			2.5	2.37	3.36	4.75	5.82	7.51	8.89	10.62	Weight (Metals) = 71 gms. Approx
DM16.650	•			2.9	3.25	4.60	6.50	7.96	10.28	12.16	14.53	3/4"	42	15	32	27
DM16.800	•			3.3	4.00	5.66	8.00	9.80	12.65	14.97	17.89	Weight (Metals) = xx gms. Approx
DM26.100	•			3.6	5.00	7.07	10.00	12.25	15.81	18.71	22.36	1"	56	18	39	36
DM26.125	•	•		4.1	6.25	8.84	12.50	15.31	19.76	23.39	27.95	Weight (Metals) = xx gms. Approx
DM26.160	•	•		4.6	8.00	11.31	16.00	19.60	25.30	29.93	35.78
DM26.180		•		5.9	9.00	12.73	18.00	22.05	28.46	33.67	40.25
DM26.200		•	•	5.2	10.00	14.14	20.00	24.49	31.62	37.42	44.72
DM26.225		•	•	5.5	11.25	15.91	22.50	27.56	35.58	42.09	50.31
DM26.250		•	•	5.8	12.50	17.68	25.00	30.62	39.53	46.77	55.90
DM26.320		•	•	6.5	16.00	22.63	32.00	39.19	50.60	59.87	71.55
DM26.400		•	•	7.3	20.00	28.28	40.00	48.99	63.25	74.83	89.44
DM26.520		•	•	8.3	26.00	36.77	52.00	63.69	82.22	97.28	116.28
DM26.650			•	9.3	32.50	45.96	65.00	79.61	102.77	121.60	145.34
DM26.720			•	9.8	36.00	50.91	72.00	88.18	113.8	134.7	161.0



130° SPRAY ANGLE	CONNECTION END	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/2”	3/4”	1”
MODEL NO.	BSP BSPT NPT	BSP BSPT NPT	BSP BSPT NPT	PRESSURE [BAR]
					0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	D	HEX
DM19.400	•			2.3	2.00	2.83	4.00	4.90	6.32	7.48	8.94	1/2"	32	13	21	22
DM19.475	•			2.5	2.37	3.36	4.75	5.82	7.51	8.89	10.62	Weight (Metals) = 71 gms. Approx
DM19.650	•			2.9	3.25	4.60	6.50	7.96	10.28	12.16	14.53	3/4"	42	15	32	27
DM19.800	•			3.3	4.00	5.66	8.00	9.80	12.65	14.97	17.89	Weight (Metals) = xx gms. Approx
DM29.100	•			3.6	5.00	7.07	10.00	12.25	15.81	18.71	22.36	1"	56	18	39	36
DM29.125	•	•		4.1	6.25	8.84	12.50	15.31	19.76	23.39	27.95	Weight (Metals) = xx gms. Approx
DM29.160	•	•		4.6	8.00	11.31	16.00	19.60	25.30	29.93	35.78
DM29.180		•	•	5.9	9.00	12.73	18.00	22.05	28.46	33.67	40.25
DM29.200		•	•	5.2	10.00	14.14	20.00	24.49	31.62	37.42	44.72
DM29.225		•	•	5.5	11.25	15.91	22.50	27.56	35.58	42.09	50.31
DM29.250		•	•	5.8	12.50	17.68	25.00	30.62	39.53	46.77	55.90
DM29.320		•	•	6.5	16.00	22.63	32.00	39.19	50.60	59.87	71.55
DM29.400		•	•	7.3	20.00	28.28	40.00	48.99	63.25	74.83	89.44
DM29.520		•	•	8.3	26.00	36.77	52.00	63.69	82.22	97.28	116.28
DM29.650			•	9.3	32.50	45.96	65.00	79.61	102.77	121.60	145.34
DM29.720			•	9.8	36.00	50.91	72.00	88.18	113.8	134.7	161.0
