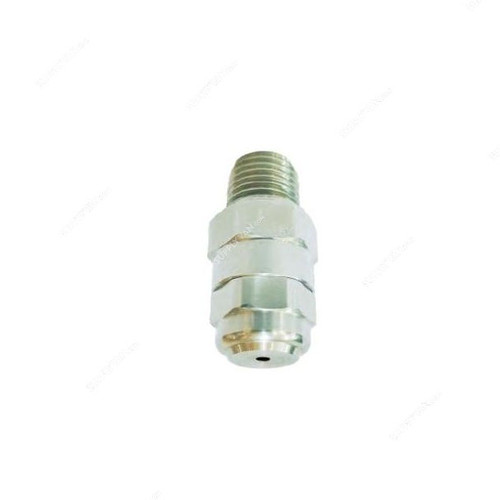

Spraytech DP Series Full Cone Spray Nozzles

DP series Full Cone Spray Nozzle form complete spray coverage in a round area. It provides an uniform spray distribution of medium to large size drops resulting from their vane design which features large flow passage and control characteristics.

Characteristic: Internal vane design features large flow passage and fine control.
Design: Removable vane, Axial flow.
Type: Round pattern, Threaded connection.

MODEL NO.	END CONNECTION	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/4”	3/8”
SPRAY ANGLE	BSP	BSP	PRESSURE [BAR]
15°	30°
					0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	HEX
DP11.475	DP12.475	•		2.7	2.37	3.36	4.75	5.82	7.51	8.89	10.62	1/4"	45	10	17
DP11.650	DP12.650	•		3.1	3.25	4.60	6.50	7.96	10.28	12.16	14.53	Weight (Metals) = XX gms. Approx
DP11.800	DP12.800	•		3.5	4.00	5.66	8.00	9.80	12.65	14.97	17.89	3/8"	55.5	10	22
DP21.100	DP22.100	•	•	3.9	5.00	7.07	10.00	12.25	15.81	18.71	22.36	Weight (Metals) = XX gms. Approx
DP21.125	DP22.125		•	4.3	6.25	8.84	12.50	15.31	19.76	23.39	27.95
DP21.160	DP22.160		•	4.9	8.00	11.31	16.00	19.60	25.30	29.93	35.78



MODEL NO.	END CONNECTION	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/4”	3/8”
SPRAY ANGLE	BSP	BSP	PRESSURE [BAR]
45°
				0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	HEX
DP13.250	•		1.9	1.25	1.77	2.50	3.06	3.95	4.68	5.59	1/4"	39.5	10	17
DP13.300	•		2.0	1.50	2.12	3.00	3.67	4.74	5.61	6.71	Weight (Metals) = XX gms. Approx
DP13.350	•	•	2.2	1.75	2.47	3.50	4.29	5.53	6.55	7.83	3/8"	47.0	10	22
DP13.400	•	•	2.4	2.00	2.83	4.00	4.90	6.32	7.48	8.94	Weight (Metals) = XX gms. Approx
DP13.475	•	•	2.6	2.37	3.36	4.75	5.82	7.51	8.89	10.62
DP13.650		•	3.1	3.25	4.60	6.50	7.96	10.28	12.16	14.53



MODEL NO.	END CONNECTION	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/4”	3/8”
SPRAY ANGLE	BSP	BSP	PRESSURE [BAR]
60°
				0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	HEX
DP14.350			2.2	1.75	2.47	3.50	4.29	5.53	6.55	7.83	1/4"	39.5	10	17
DP14.400		•	2.4	2.00	2.83	4.00	4.90	6.32	7.48	8.94	Weight (Metals) = XX gms. Approx
DP14.475	•	•	2.6	2.37	3.36	4.75	5.82	7.51	8.89	10.62	3/8"	47.0	10	22
DP14.650	•	•	3.1	3.25	4.60	6.50	7.96	10.28	12.16	14.53	Weight (Metals) = XX gms. Approx
DP14.800		•	3.4	4.00	5.66	8.00	9.80	12.65	14.97	17.89
DP24.100		•	3.8	5.00	7.07	10.0	12.25	15.81	18.71	22.36



MODEL NO.	END CONNECTION	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/4”	3/8”
SPRAY ANGLE	BSP	BSP	PRESSURE [BAR]
90°
				0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	HEX
DP16.350	•		2.2	1.75	2.47	3.50	4.29	5.53	6.55	7.83	1/4"	39.5	10	17
DP16.400	•	•	2.3	2.00	2.83	4.00	4.90	6.32	7.48	8.94	Weight (Metals) = XX gms. Approx
DP16.475	•	•	2.5	2.37	3.36	4.75	5.82	7.51	8.89	10.62	3/8"	47.0	10	22
DP16.650	•	•	2.9	3.25	4.60	6.50	7.96	10.28	12.16	14.53	Weight (Metals) = XX gms. Approx
DP16.800	•	•	3.3	4.00	5.66	8.00	9.80	12.65	14.97	17.89
DP26.100		•	3.6	5.00	7.07	10.0	12.25	15.81	18.71	22.36
DP26.125		•	4.1	6.25	8.84	12.50	15.31	19.76	23.39	27.95
DP26.160		•	4.6	8.00	11.31	16.00	19.60	25.30	29.93	35.78



MODEL NO.	END CONNECTION	ORIFICE SIZE (mm)	FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE	G/A DIMENSION. MM
1/4”	3/8”
SPRAY ANGLE	BSP	BSP	PRESSURE [BAR]
120°
				0.5	1.0	2.0	3.0	5.0	7.0	10.0	CONN.	H	H1	HEX
DP18.400	•	•	2.5	2.00	2.83	4.00	4.90	6.32	7.48	8.94	1/4"	39.5	10	17
DP18.475	•	•	2.7	2.37	2.36	4.75	5.82	7.51	8.89	10.62	Weight (Metals) = XX gms. Approx
DP18.650	•	•	3.1	3.25	4.60	6.50	7.96	10.28	12.16	14.53	3/8"	47.0	10	22
DP18.800	•	•	3.5	4.00	5.66	8.00	9.80	12.65	14.97	17.89	Weight (Metals) = XX gms. Approx
DP28.100		•	3.9	5.00	7.07	10.00	12.25	15.81	18.71	22.36
DP28.125		•	4.3	6.25	8.84	12.50	15.31	19.76	23.39	27.95
DP28.160		•	4.9	8.00	11.31	16.00	19.60	25.30	29.93	35.78
