Spraytech EH Series Static Spray Ball Stainless Steel and Plastic Versions
SV Code: 123291347459
India
AED 34.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 123291347459 |
| Brand | Spraytech |
| Category | Tank Cleaning Spray Balls |
| Unit | Piece |
| Brand Origin (not manufacture) | India |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

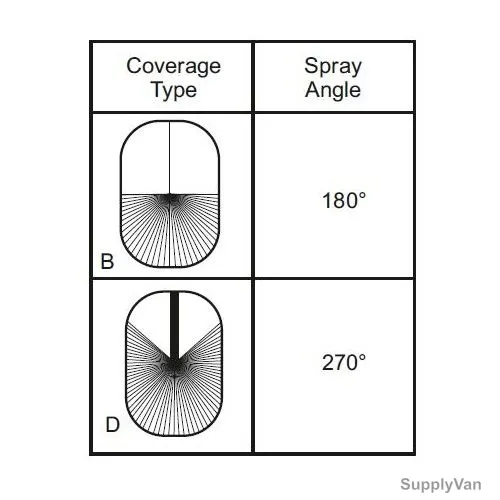

EH Series Static Spray Ball has very compact design that provides straight jets for high impact rinsing of small drums or container up toø 1.5m. Also it can be used with saturated steam. Spray coverage is available in 180˚ & 270˚.
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
Features : Uni body design Multiple orifice for high impact jet spray
Spray Angle : 180 Degree, 270 Degree
Cleaning Diameter : Upto 15 Meters
Type : Stationary
Material : SS304, SS316, PTFE
Spray Angle : 180 Degree, 270 Degree
Cleaning Diameter : Upto 15 Meters
Type : Stationary
Material : SS304, SS316, PTFE
| MODEL NO. | SPRAY | CONNECTION | FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FLOW CAPACITY (US GPM) | PRESSURE [BAR] | |||||||||
| 1/4” | 3/8” | 1/2” | ||||||||
| 40* psi | 1.5 | 2 | 3 | 5 | 7 | |||||
| EH1.800 | B/D | 2.45 | 6.93 | 8.00 | 9.80 | 12.65 | 14.97 | |||
| EH2.100 | B/D | 3.09 | 8.66 | 10.00 | 12.25 | 15.81 | 18.71 | |||
| EH2.120 | B/D | 3.71 | 10.39 | 12.00 | 14.70 | 18.97 | 22.45 | |||
| EH2.140 | B/D | 4.33 | 12.12 | 14.00 | 17.15 | 22.14 | 26.19 | |||
| EH2.160 | B/D | 4.90 | 13.86 | 16.00 | 19.60 | 25.30 | 29.93 | |||
| EH2.180 | B/D | 5.50 | 15.59 | 18.00 | 22.05 | 28.46 | 33.67 | |||
| EH2.220 | B/D | 6.32 | 19.05 | 22.00 | 26.94 | 34.79 | 41.16 | |||
| EH2.280 | B/D | 8.58 | 24.25 | 28.00 | 34.29 | 44.27 | 52.38 | |||
| EH2.320 | B/D | 9.81 | 27.71 | 32.00 | 39.19 | 50.60 | 59.87 | |||
| EH2.400 | B/D | 12.38 | 34.64 | 40.00 | 48.99 | 63.25 | 74.83 | |||
| EH2.520 | B/D | 15.94 | 45.03 | 52.00 | 63.69 | 82.22 | 97.28 | |||
| EH2.600 | B/D | 18.58 | 51.96 | 60.00 | 73.48 | 94.87 | 112.25 | |||
| EH2.700 | B/D | 21.68 | 60.62 | 70.00 | 85.73 | 110.68 | 130.96 | |||
| EH2.800 | B/D | 24.52 | 69.28 | 80.00 | 97.98 | 126.49 | 149.67 | |||
| EH2.900 | B/D | 27.87 | 77.94 | 90.00 | 110.23 | 142.30 | 168.37 | |||
| EH3.100 | B/D | 30.65 | 86.60 | 100.0 | 122.47 | 158.11 | 187.08 |
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
| CONNECTION | 1/4" | 3/8" | 1/2" | ||||||
|---|---|---|---|---|---|---|---|---|---|
| DIMENSION | H | H1 | D | H | H1 | D | H | H1 | D |
| MALE | 32 | 15 | 16 | 35 | 16.5 | 17 | 40 | 26 | 27 |
| Weight (Metals) = XX gms. Approx | Weight (Metals) = XX gms. Approx | Weight (Metals) = XX gms. Approx | |||||||
| FEMALE | 32 | 15 | 16 | 35 | 21.5 | 22 | 45.3 | 26 | 27 |
| Weight (Metals) = XX gms. Approx | Weight (Metals) = XX gms. Approx | Weight (Metals) = XX gms. Approx |
