Spraytech RB Series Flat External Mix Coating Spray Nozzles

Product Description RB Series variable spray nozzles provide uniform spray distribution with uniform droplet sizes, even when spraying viscous fluids. For finest tuning of liquid flow rate along with spray pattern and droplet sizes independent controls are given in spray nozzles assembly. Suitable for large scale production. For various settings of spray droplet sizes separate air controller is given in spray nozzle assembly. Additional inlet /outlet port allows for liquid re-circulation that effectively maintains the flow of viscous liquids.

DESIGN FEATURES
1. GMP model
2. Complete SS316L construction
3. Separate atomizing and fan air lines for complete control.
4. Provides variable coverage and fine control of drop size without affecting liquid flow rates.
5. Non clogging and anti - bearding design
6. Auto shut-off & anti-drip feature
7. Self-cleaning needle design.
8. Comes with Wide range of orifice size

Design Summary
Liquid Orifice Range: 0.5 to 2.0 MM
RB Series variable spray nozzles provide uniform spray distribution with uniform droplet sizes, even when spraying viscous fluids. RB series works with HVLP principle where the atomization is possible at lowest pressures. RB series comes with Independent inlets for Atomization air, Fan air, Cylinder air and Liquid for complete control over the spray nozzle. RB series is best suitable for auto coaters for large scale production. Additional inlet /outlet port allows for liquid re-circulation that effectively maintains the flow of viscous liquids. Having removable auto shut off and spring loaded needle cylinder assembly is provided for maintenance.

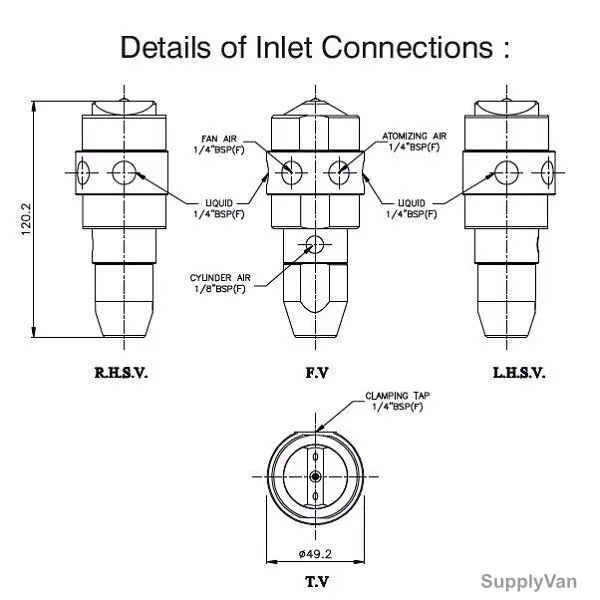

Part Details
1. Lock Nut
2. Air Cap
3. Fluid Cap
4. Body
5. Cylinder (Needle) Assembly

• With fan air: Flat Spray Pattern.
• Without fan air: Round Spray Pattern.
