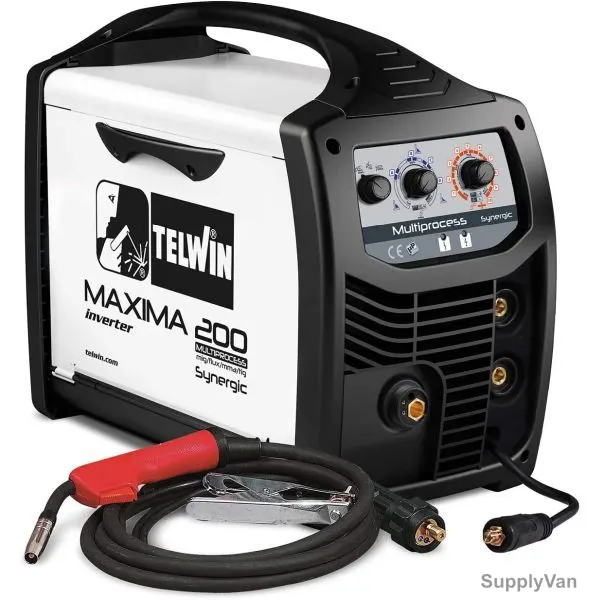

Telwin Electrode Welding Machine, 816087, Maxima 200 Synergic, 230V

Name: Telwin Electrode Welding Machine, 816087, Maxima 200 Synergic, 230V
Brand: Telwin
SKU: telwin-816087
Price: 3253.00 AED
Availability: PreOrder

SV Code: 551675589628Model No.: 816087

230 VAC50/60Hz144 V80-140 A

AED 3,253.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Light And Compact
It Can Be Easily Carried In Any Intervention Place, Both Inside And Outside
Polarity Reversal For Gas Mig-Mag/Brazing Welding
Thermostatic, overvoltage, Undervoltage, Motor generator (+/- 15%) Protections
Complete With Mig-Mag Torch, Work Clamp And Cable
Fit For No Gas/Flux Welding, It Can Be Transformed Into Mig-Mag With The Optional Kit

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	551675589628
Brand	Telwin
Category	Electrode Welding Machines
Unit	Piece
Voltage	230 VAC
Frequency	50/60Hz
Phase	1
Power Consumption	3.2 kW
Power Factor	0.7
Maximum Voltage(no load)	44 V
Measuring Current Range - DC	80-140 A
Welding Current Range Amps	20-170 A
Accuracy	20%
Efficiency	86%
Application	MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT
For Use With	Steel, stainless steel, aluminium
Accessories Included	Cable 16 MMQ 1.8 Mtrs - Dinse 25 (120602), Toledo 250 Work Clamp 250A (712030), Cable Tw05V-A 1X025 L=1.80 Mtrs Dinse (124589), Mt15 Mig Torch 3 Mtrs (Red) (742180)
Fuse Type	16 A
Brand Origin (not manufacture)	Italy
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works. The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.

Features

Light And Compact
It Can Be Easily Carried In Any Intervention Place, Both Inside And Outside
Polarity Reversal For Gas Mig-Mag/Brazing Welding
Thermostatic, overvoltage, Undervoltage, Motor generator (+/- 15%) Protections
Complete With Mig-Mag Torch, Work Clamp And Cable
Fit For No Gas/Flux Welding, It Can Be Transformed Into Mig-Mag With The Optional Kit
Absorbed Current At: 60% - Max11 A
Absorbed Power At 60%: 1.6kW
Absorbed Power At 60%: 1.6kW
Inox Welding Wire Diameter: 0.8mm
Aluminium Welding Wire Diameter: 0.8 - 1mm
Flux Cored Welding Wire Diameter: 0.8 - 1.2mm
Max Absorbed Current: 22 A
