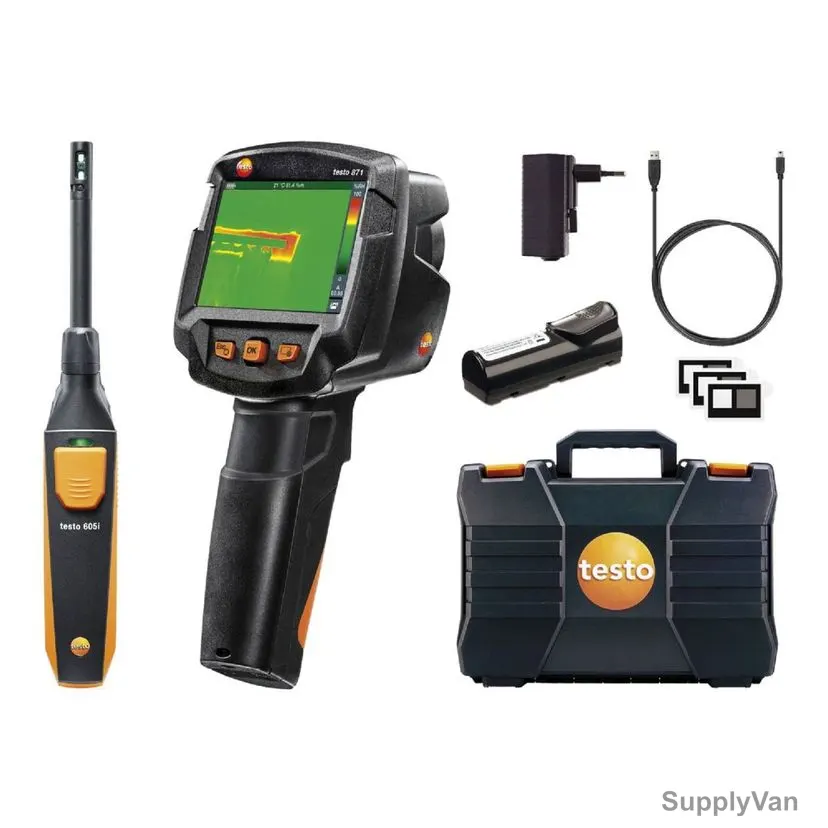

Testo Building Diagnosis Kit, 871-605i-Kit, -15 to +50 Deg.C, 2 Pcs/Kit
On our shelf and ready to go out today.
Key features
- Infrared resolution of 240 x 180 pixels = 43,200 temperature measuring points, the infrared resolution is extended to 480 x 360 pixels via integrated SuperResolution Technology
- Detecting temperature differences from 0.09 Deg.C
- 35 degree fixed-focus lens for a wide field of view and an ideal overview of the temperature distribution. The fixed focus means there is no longer any need for manual focusing
- The Testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control

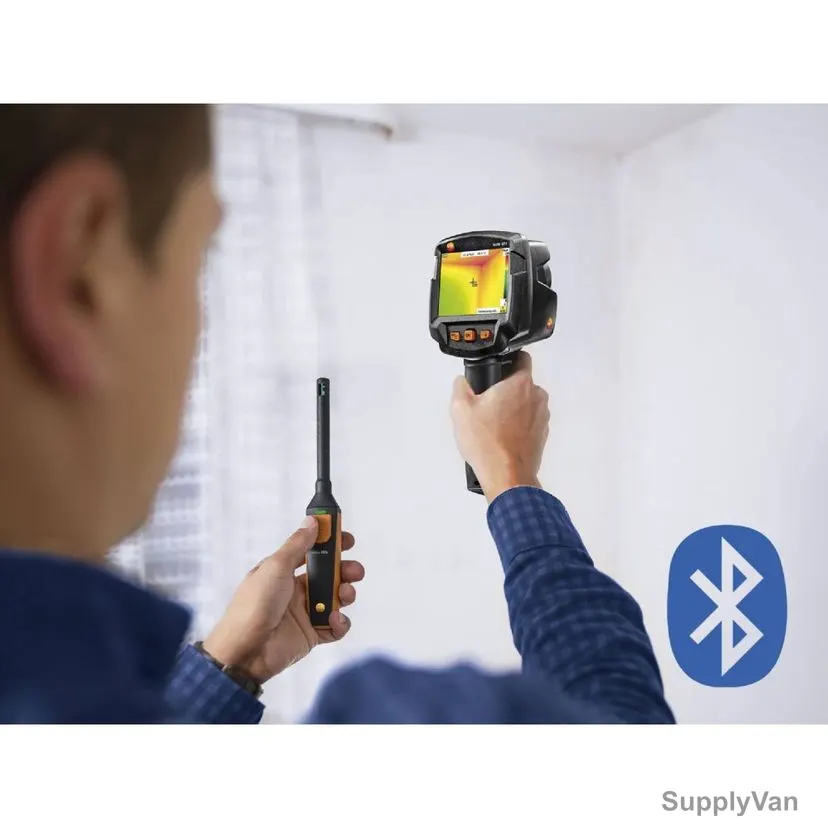

- Wireless transmission (via Bluetooth) of external measurement parameters, such as ambient temperature and relative humidity, from the Testo 605i thermohygrometer to the Testo 871 thermal imager
- Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
Specifications
| SV Code | 371155812944 |
| Brand | Testo |
| Category | Thermal Imager |
| Unit | Kit |
| Battery Type | Li-Ion |
| Battery Life | 4 hrs |
| Accuracy | +/-2 Deg.C, +/-2% of mv |
| Memory Capacity | 2.8 GB |
| Spectral Range | 7.5-14 micron |
| Display Size | 8.9 cm |
| Colour | Black |
| Display Color | 4 (iron, rainbow, cold-hot, grey) |
| Operating Temperature | -15 to +50 Deg.C |
| Storage Temperature | -30 to +60 Deg.C |
| Display Type | TFT, QVGA |
| Humidity | 20 to 80% RH non-condensing |
| Display Resolution | 320 x 240 pixels |
| Interface Type | USB 2.0 Micro B |
| Refresh Rate | 9 Hz |
| Lens Type | 35 x 26 degree |
| Field of View | 35 x 26 degree |
| Minimum Focus Distance | <0.5 Mtr |
| Thermal Sensitivity | 90 mK |
| Emissivity | 0.01 to 1 |
| System Requirements | Windows 10, Windows 8, Windows 7 |
| Image File Format | .bmt, .jpg, export option in .bmp, .png, .xls |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description

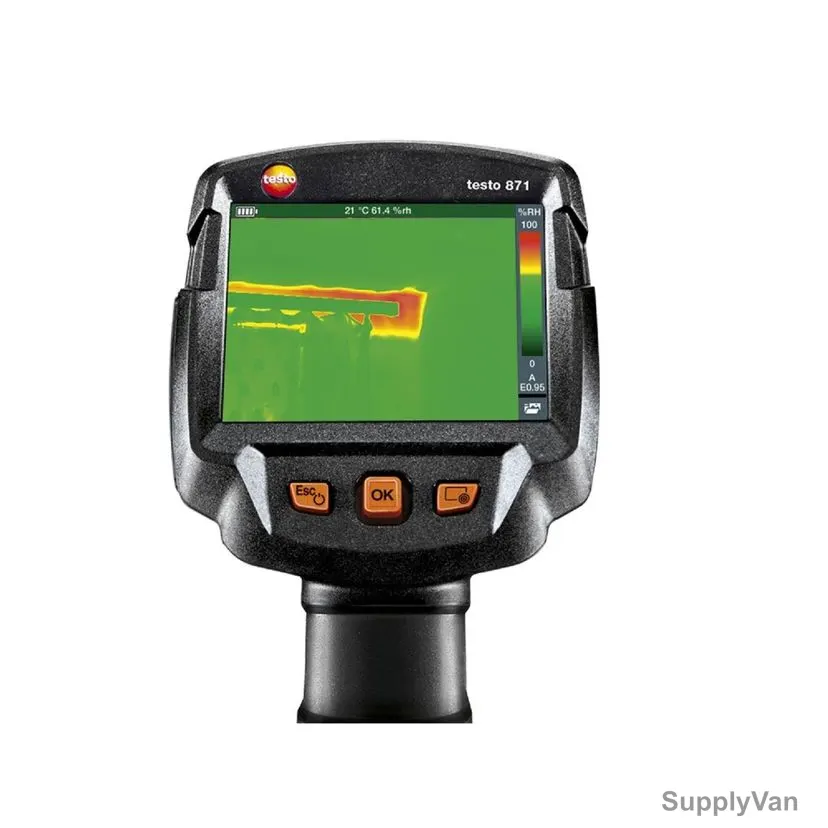

The Testo 871 thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The Testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control. Incorrect ventilation behaviour or structural defects, such as thermal bridges, are some of the most frequent causes of mould formation in apartments, houses, old buildings and new builds. The Testo 871 thermal imager and the Testo 605i Smart Probe enable professional, simple and absolutely reliable detection of mould-risk areas before mould develops. The professional thermal imager provides you with ideal support in your day-to-day work: you can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, Testo ?-Assist and Testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (?) and reflected temperature (RTC) for building thermography, but also of colour scale.
Features
- Infrared resolution of 240 x 180 pixels = 43,200 temperature measuring points, the infrared resolution is extended to 480 x 360 pixels via integrated SuperResolution Technology
- Detecting temperature differences from 0.09 Deg.C
- 35 degree fixed-focus lens for a wide field of view and an ideal overview of the temperature distribution. The fixed focus means there is no longer any need for manual focusing
- The Testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
- Wireless transmission (via Bluetooth) of external measurement parameters, such as ambient temperature and relative humidity, from the Testo 605i thermohygrometer to the Testo 871 thermal imager
- Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
- The Testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, e.g. of the thermal insulation behaviour of buildings
- The Testo ?-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
- The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image you therefore avoid measurement errors, because the camera shows you exactly what you can measure
- Video Streaming: wireless LAN with Testo Thermography App
- SuperResolution (Pixel): 480 x 360 pixels
- SuperResolution (IFOV): 1.6 mrad
- Solar mode – manual: Input solar radiation
- EU-/EG-guidelines: EMC 2014/30/EU and RED 2014/53/EU
Certifications & Standards
| Ingress Protection | IP54 |
