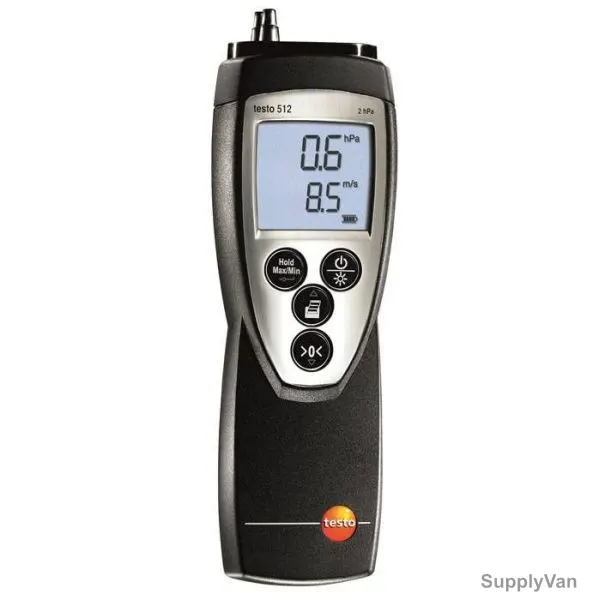

Testo Differential Pressure Meter, 512, 0 to +20 hPa, LCD, 9V
On our shelf and ready to go out today.
Key features
- 8 measurement units to choose from: psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O, inch Hg
- 2 air flow units to select from: m/s, fpm
- Integrated density compensation
- Backlit display, min/max values, hold function
- Differential Pressure - Piezoresistive Overload: ±200 hPa
Specifications
| SV Code | 986494496456 |
| Brand | Testo |
| Category | Micromanometers |
| Unit | Piece |
| Battery Voltage | 9 VDC |
| Battery Type | 6F22 |
| Battery Life | 120 hrs |
| Accuracy | 0.5% fs |
| Measuring Range | 0 to +20 hPa (+5 to +55 m/s, 985 to 10830 fpm) |
| Display Size | 2 Lines |
| Colour | Black |
| Operating Temperature | 0 to 60 Deg.C |
| Storage Temperature | -10 to +70 Deg.C |
| Display Type | LCD |
| Resolution | 0.001 hPa (0.1 m/s, 0.1 fpm) |
| Measuring Unit | psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O, inch Hg |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Testo 512 with a measuring range from 0…20 hPa can be used to help you carry out quick and easy filter checks when performing differential pressure checks on ventilation and air conditioning systems. Differential pressure measurements are carried out to determine whether filters still work properly or whether they are used up and clogged and need to be replaced. The differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds or when the air stream is strongly polluted. The compact, rugged meter shows both the pressure as well as the air flow speed and has a measuring range from 5 to 55 m/s. The damper for adjustable averaging can be programmed individually while the density compensation is already integrated. The pitot static tube that you will need to carry out your air flow measurements can be ordered together with your differential pressure meter. Choose from one of three models to select the model that is best suited to your individual requirements. The pitot static tube is inserted into the air duct where it measures the air flow quickly and reliably. The Testo 512 displays the pressure and the air flow speed simultaneously. You can choose between two different units of measurement - m/s and fpm - to indicate the air flow speed and from eight different units - psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O and inch Hg - to measure the pressure.
Features
- 8 measurement units to choose from: psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O, inch Hg
- 2 air flow units to select from: m/s, fpm
- Integrated density compensation
- Backlit display, min/max values, hold function
- Differential Pressure - Piezoresistive Overload: ±200 hPa
