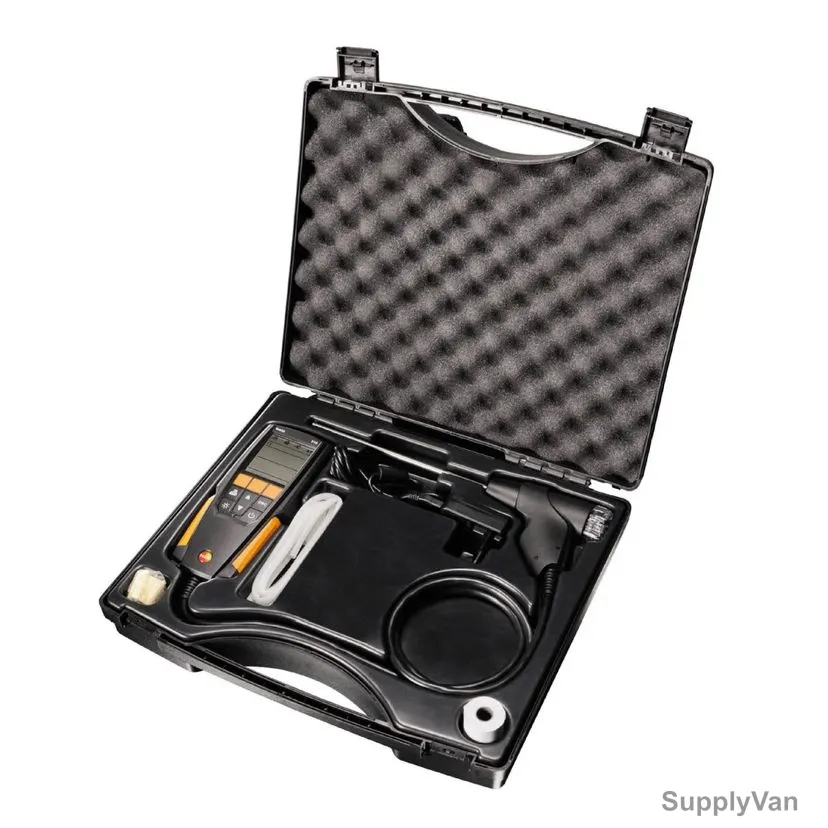

Testo Entry-Level Flue Gas Analyzer, 310, -20 to +100 Deg.C

The Testo 310 has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions. But that is by no means all. The compact flue gas analyser has a wide range of useful features that make it the ideal companion for plumbing and heating fitters. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank. To round things off, the readings can also be transferred directly to your Testo turbo printer (optional) via the analyser's infrared interface, allowing you to print out on site.

Specifications:

Flue gas - Measuring Range: 0 to 21 Vol.%

Flue gas - Accuracy: +/-0.2 Vol.%

Flue gas - Resolution: 0.1 Vol.%

Flue gas - Reaction Time t??: 30 s

Differential Pressure flue gas Draught Piezoresistive

Measuring Range: -20 to +20 hPa

Accuracy: +/-0.03 hPa (-3.00 to +3.00 hPa), +/-1.5% of mv (Remaining Range)

Resolution: 0.01 hPa

Flue Gas Degree of Effectivity, Eta (calculated)

Measuring range: 0 to 120%

Resolution: 0.1%

Flue gas Loss (Calculated)

Measuring range: 0 to 99.9%

Resolution: 0.1%

Flue Gas CO2 Calculation (calculated from O?)

Measuring Range: 0 to CO? max (Display range)

Accuracy: +/-0.2 Vol.%

Resolution: 0.1 Vol.%

Reaction Time t99: <40 sec

Pressure Measurement

Measuring Range: -40 to +40 hPa

Accuracy: +/-0.5 hPa

Resolution: 0.1 hPa

Flue Gas CO (without H2-compensation)

Measuring Range: 0 to 4000 ppm

Accuracy: +/-20 ppm (0 to 400 ppm), +/-5% of mv (401 to 2000 ppm), +/-10% of mv (2001 to 4000 ppm)

Resolution: 1 ppm

Reaction Time t99: 60 sec

Ambient CO

Measuring Range: 0 to 4000 ppm

Accuracy: +/-20 ppm (0 to 400 ppm), +/-5% of mv (401 to 2000 ppm), +/-10% of mv (2001 to 4000 ppm)

Resolution: 1 ppm

Reaction Time: 60 sec
