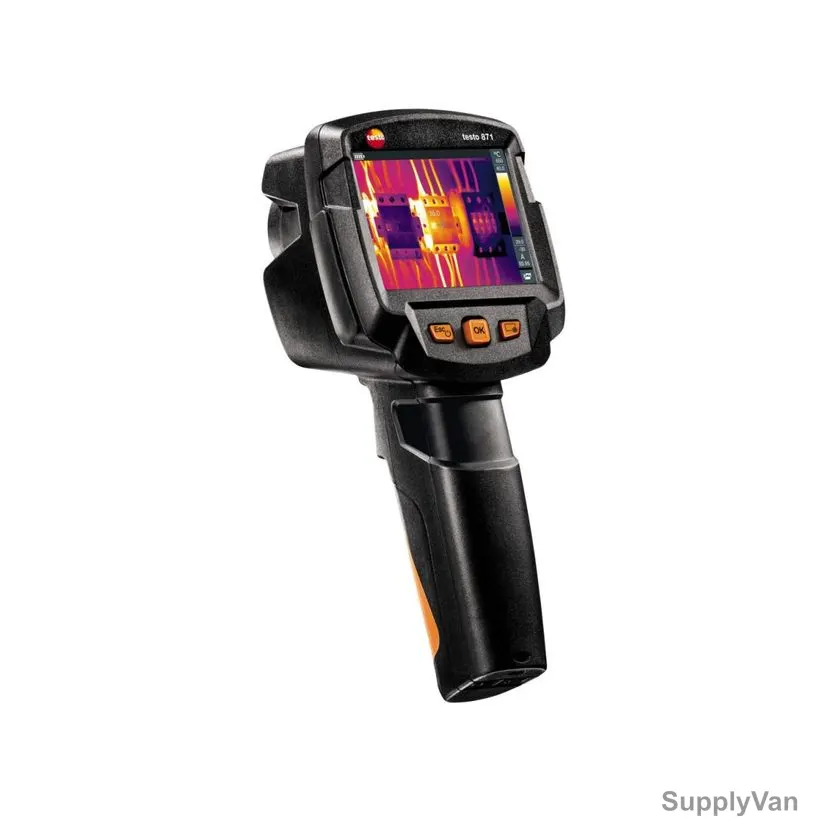

Testo Thermal Imager, 871, 320 x 240 pixels, -30 to +650 Deg.C
Testo

Testo Thermal Imager, 871, 320 x 240 pixels, -30 to +650 Deg.C

SV Code: 236231188339Model No.: 871Article Number: 0560-8712
Li-Ion4 hrsBlackABS and PolycarbonateIP54
AED 11,300.00/ Piece
Price includes VAT· Sign in to see your account priceMore Details
In stock — ships today

On our shelf and ready to go out today.

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

  • Very good image quality: IR resolution of 240 x 180 pixels, via integrated Testo SuperResolution Technology 480 x 360 pixels

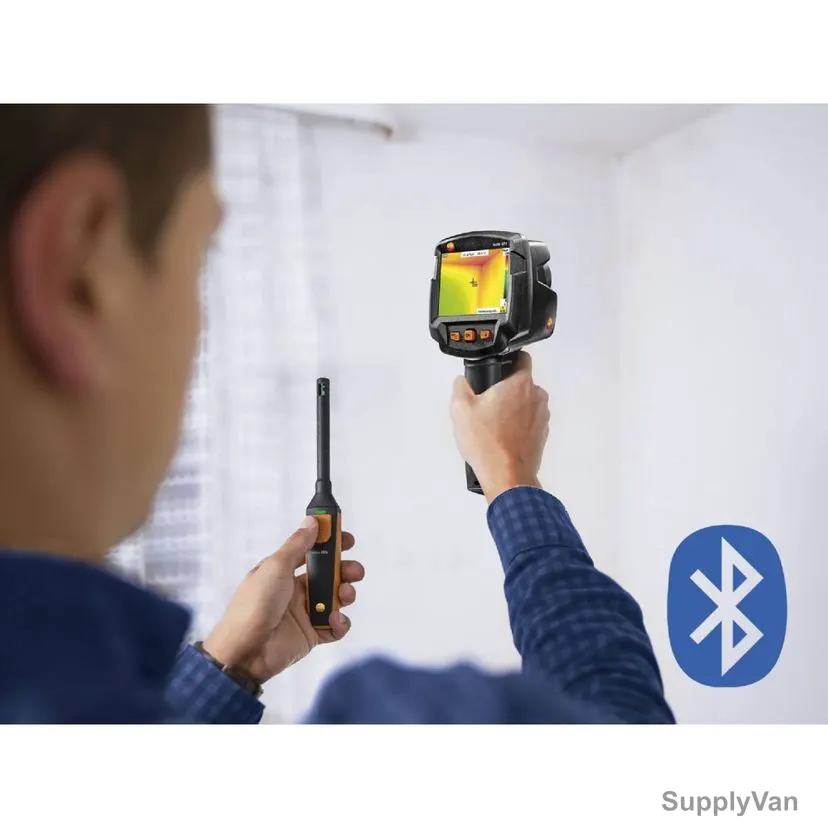

  • Wireless networking: wireless transmission of readings from the Testo 770-3 clamp meter and the Testo 605i thermohygrometer (both available separately)
  • Smart: the free Testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more
  • Large temperature measuring range from -30°C to +650°C
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
Full description & specifications ↓
Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code236231188339
BrandTesto
CategoryThermal Imager
UnitPiece
Battery TypeLi-Ion
Battery Life4 hrs
Accuracy+/-2 Deg.C, +/-2% of mv
Measuring Range-30 to +650 Deg.C
Memory Capacity2.8 GB
Spectral Range7.5-14 micron
Display Size8.9 cm
ColourBlack
MaterialABS and Polycarbonate
Display Color4 (iron, rainbow, cold-hot, grey)
Operating Temperature-15 to +50 Deg.C
Storage Temperature-30 to +60 Deg.C
Display TypeTFT, QVGA
Humidity20 to 80% RH non-condensing
Display Resolution320 x 240 pixels
Interface TypeUSB 2.0 Micro B
Refresh Rate9 Hz
Lens Type35 x 26 degree
Field of View35 x 26 degree
Minimum Focus Distance<0.5 Mtr
Thermal Sensitivity90 mK
Emissivity0.01 to 1
System RequirementsWindows 10, Windows 8, Windows 7
Image File Format.bmt, .jpg, export option in .bmp, .png, .csv, .xls
Brand Origin (not manufacture)Germany
DeliveryOn our shelf and ready to go out today.

Description

The Testo 871 thermal imager communicates wirelessly via WLAN with your mobile terminal devices. The Testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control. The Testo 871 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and the Testo 605i thermohygrometer. Both are available separately simply order them straight away along with your Testo 871. The measurement results of both measuring instruments can easily be transmitted via Bluetooth. The additional output, current and voltage values of the Testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the Testo 605i and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle. Detect leaks, pinpoint thermal bridges, discover structural defects, identify overheated connections or assess mould damage. The Testo 871 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.

Features

  • Very good image quality: IR resolution of 240 x 180 pixels, via integrated Testo SuperResolution Technology 480 x 360 pixels
  • Wireless networking: wireless transmission of readings from the Testo 770-3 clamp meter and the Testo 605i thermohygrometer (both available separately)
  • Smart: the free Testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more
  • Large temperature measuring range from -30°C to +650°C
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs
  • EU-/EG-guidelines: EMC 2014/30/EU and RED 2014/53/EU
  • Infrared Resolution: 240 x 180 pixels
  • Geometric Resolution (IFOV): 2.6 mrad
  • SuperResolution (Pixel): 480 x 360 pixels
  • SuperResolution (IFOV): 1.6 mrad
  • Solar mode – manual: Input solar radiation
  • Analysis Function: Mean point measurement, hot/cold-spot recognition, Delta T

Certifications & Standards

Ingress ProtectionIP54
