Weicon AN 305-72 Pipe and Flange Sealing, 30572200, Weiconlock, 200ML

Casketing of flanges, gearboxes and other motor housings. Pipe and flange sealing with PTFE, immediate sealing effect, DVGW-approval Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88
Surface pre-treatment:

In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts(use Weicon Surface Cleaner). If required, the parts should be slightly roughened.

Processing:

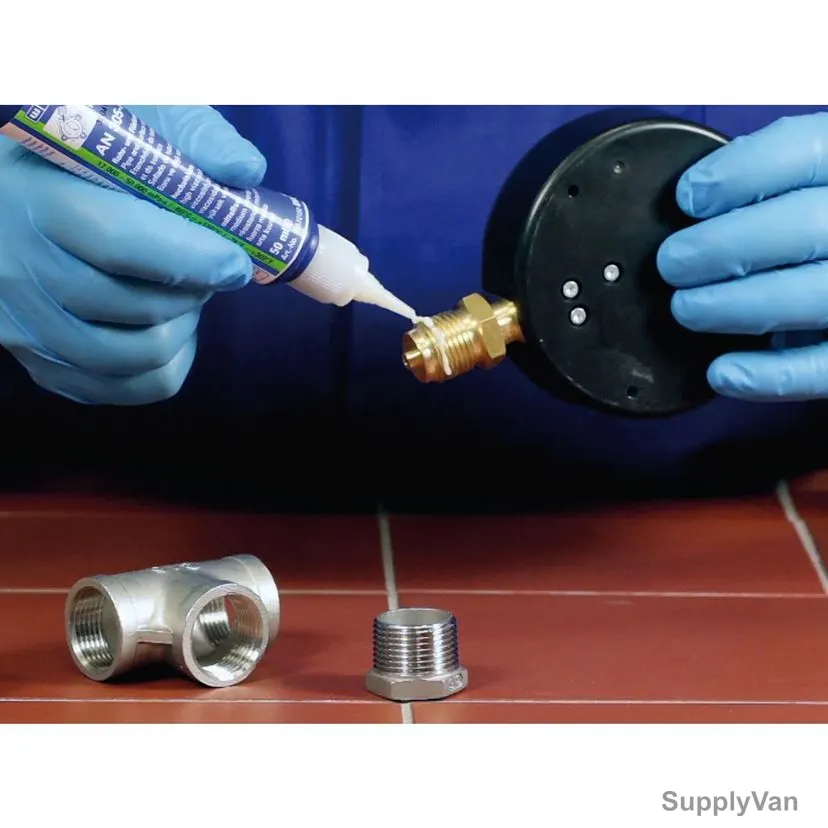

Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.

Storage:

Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid.

Technical Data:

Colour: White

For threaded joints up to: M80 R 3 Inch

Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 17.000 - 50.000 ht mPa·s

Max. Gap Bridging: 0.4mm

Breakaway strength (Thread): 7 - 10 Nm

Prevailing strength: 2 - 4 Nm

Shear strength N sq.mm (DIN 54452): 4 - 6 N/sq.mm

Handling strength at room temperature: 20 - 40 min.

Final strength (100%) after: 5 - 10 h

Temperature resistance: -60 to +150 Deg.C

ISSA-Code: 75.628.34/35

IMPA-Code: 815210/11
