Weicon
Weicon AN 305-73 Flange Sealing, 30573200, Weiconlock, 200ML
SV Code: 493744156386Model No.: 30573200
200 mlLight Green12 hrsGermany
AED 229.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Fast delivery Genuine & warranty Bulk quotes
This model family (12 options)
| Product | Price | Availability |
|---|---|---|
| Weicon AN 305-10 Flange Sealing, 30510150, Weiconlock, 50ML | AED 71.00 | In stock |
| Weicon AN 305-74 Flange Sealing, 30574150, Weiconlock, 50ML | AED 71.00 | In stock |
| Weicon AN 305-73 Flange Sealing, 30573150, Weiconlock, 50ML | AED 71.00 | In stock |
| Weicon AN 305-18 Flange Sealing, 30518150, Weiconlock, 50ML | AED 75.00 | In stock |
| Weicon AN 305-10 Flange Sealing, 30510200, Weiconlock, 200ML | AED 229.00 | Quote |
| Weicon AN 305-73 Flange Sealing, 30573200, Weiconlock, 200ML viewing | AED 229.00 | Quote |
| Weicon AN 305-74 Flange Sealing, 30574200, Weiconlock, 200ML | AED 201.00 | In stock |
| Weicon AN 305-18 Flange Sealing, 30518200, Weiconlock, 200ML | AED 276.00 | Quote |
| Weicon AN 305-74 Flange Sealing, 30574300, Weiconlock, 300ML | AED 335.00 | Quote |
| Weicon AN 305-73 Flange Sealing, 30573300, Weiconlock, 300ML | AED 335.00 | Quote |
| Weicon AN 305-10 Flange Sealing, 30510300, Weiconlock, 500ML | AED 348.00 | Quote |
| Weicon AN 305-18 Flange Sealing, 30518300, Weiconlock, 300ML | AED 379.00 | Quote |
Specifications
| SV Code | 493744156386 |
| Brand | Weicon |
| Category | Gasket Sealants |
| Unit | Piece |
| Size | 200 ml |
| Colour | Light Green |
| Temperature Resistance | -60 to +150 Deg.C |
| Viscosity | 17.000-50.000 ht mPa·s |
| Final Strength | 12 hrs |
| Shear Strength | 4-6 N/sq.mm |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

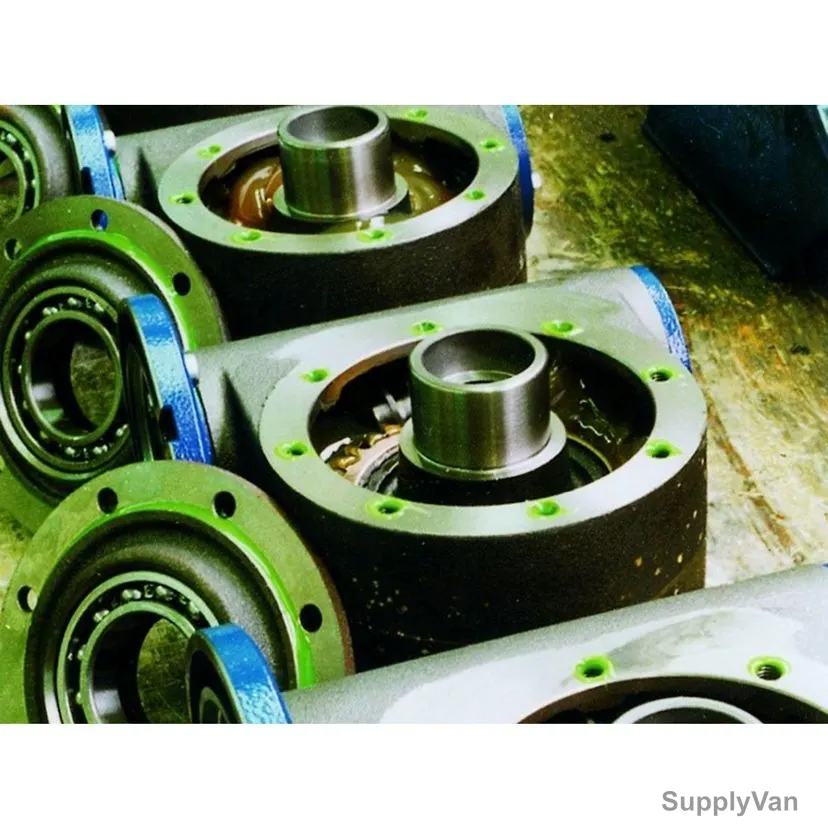

Casketing of flanges, gearboxes and other motor housings Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88Surface pre-treatment:In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened. Processing:Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply continuous bead on one side of flange, join and tighten parts quickly. For sealing applications (pipe fitting) apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended. Storage:Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid. Technical Data: Colour: Light-Green Fluorescent: Yes Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 17.000 - 50.000 ht mPa·s Max. Gap Bridging: 0.3mm Breakaway strength (Thread): 6 - 10 Nm Prevailing strength: 2 - 5 Nm Shear strength N sq.mm (DIN 54452): 4 - 6 N/sq.mm Handling strength at room temperature: 20 - 40 min. Final strength (100%) after: 12 h Temperature resistance: -60 to +150 Deg.C
Features
- High viscosity
- Low strength
- Easy disassembly
