Weicon AN 305-77 Thread Sealing, 30577300, Weiconlock, 300ML

Thread Sealing, DVGW approval, marking-free Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13 mm, tolerance (D-d) = 0,05 mm, l/d = 0.88
Surface pre-treatment:

In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened.

Processing:

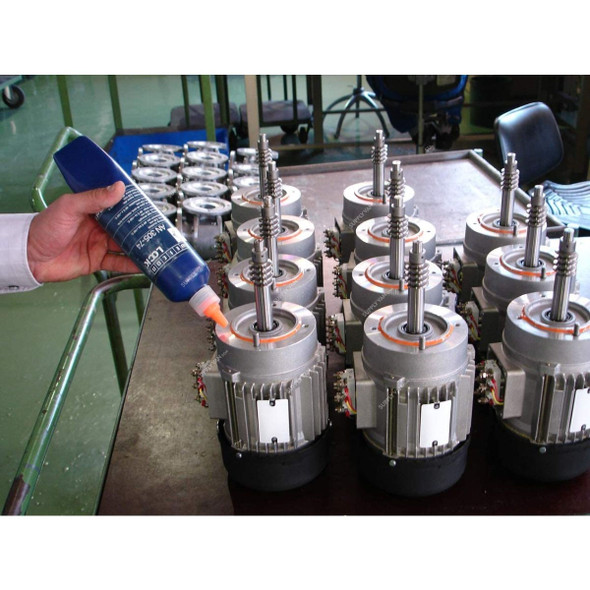

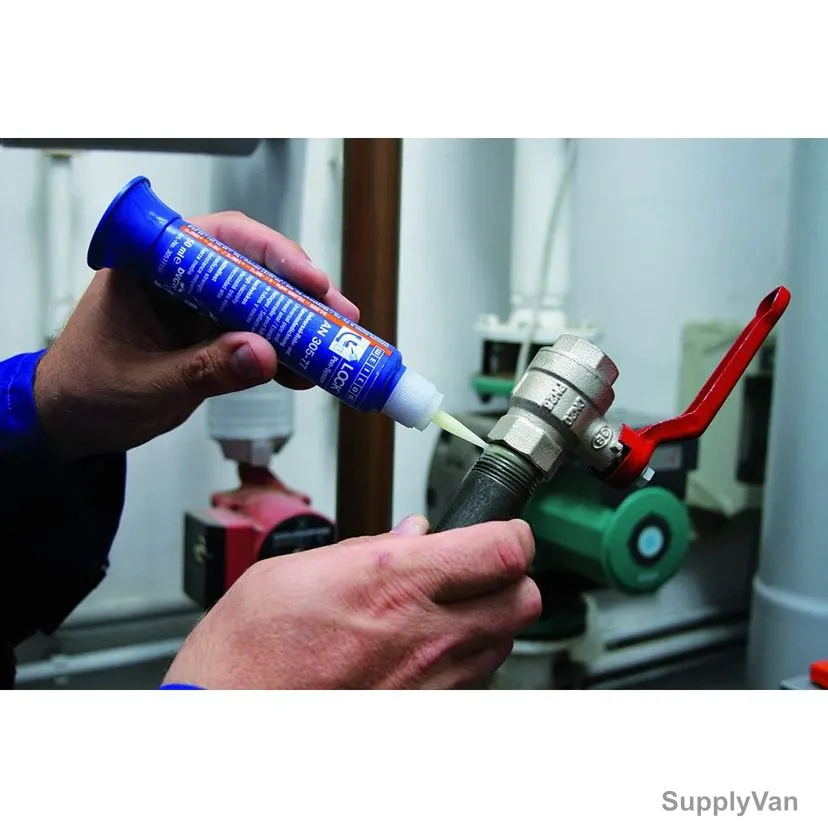

Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.

Storage:

Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid.

Technical Data:

Colour: Yellow

Fluorescent: Yes

For threaded joints up to: M80 R 3 Inch

Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 24.000 - 70.000 ht mPa·s

Max. Gap Bridging: 0.5mm

Breakaway strength (Thread): 18 - 22 Nm

Prevailing strength: 10 - 14 Nm

Shear strength N sq.mm (DIN 54452): 6 - 13 N/sq.mm

Handling strength at room temperature: 15 - 30 min.

Final strength (100%) after: 1 - 3 h

Temperature resistance: -60 to +150 Deg.C

ISSA-Code: 75.628.13/14

IMPA-Code: 815214/15
