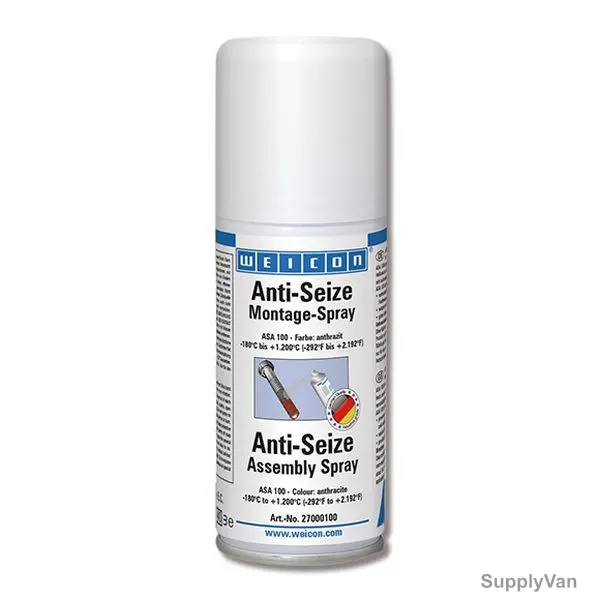

Weicon Anti-Seize Assembly Spray, 27000100, 100ML

Weicon Anti-Seize Assembly Spray is high temperature resistant and has excellent separating characteristics. Weicon Anti-Seize is used as a protecting, separating and lubricating agent for highly stressed parts. Ideally compatible solid contents and selected additives enable a wide range of usage. Weicon Anti-Seize protects against corrosion, seizure and wear, stick-slip phenomena, oxidation, fretting corrosion and electrolytic reactions (cold welding). The product can be used in many industrial applications.
Surface pre-treatment

Clean and degrease surfaces. Apply the assembly paste evenly. AS is suitable only for assembly paste specific applications, it does not replace pure lubricants and greases.

Processing

Shake can before use and apply the material evenly from a distance of approx. 15 cm. On threads it is important that Assembly Paste is applied down to the thread root to ensure a good sealing effect. Assembly Paste must not be mixed with greases or oils to avoid changes in the material characteristics. Weicon Assembly Pastes do not replace oil or grease lubrication.

Technical Data:

Basic Oil: Synthetic Oil Mixture

Colour: Anthracite

Density at +20 Deg.C (+68 Deg.F) (DIN 51757): 1.16 g/cu.cm

VKA-TEST (DIN 51350) goods load: 4.200 N

VKA-TEST (DIN 51350) welding load: 4.400 N

VKA-TEST (DIN 51350) Spherical cap value (1Min/1000N): 0.5mm

Worked penetration ( DIN ISO 2137): 310 - 340 1/10mm

Water resistance (DIN 51807): 0 - 90

Pressure (DIN 53281-83): 230 N/sq.mm

Salt spray test: >170 h

Thermal conductivity: 0.3 W/m·K

Dielectric strength: 0.47 kV/mm

Temperature Resistance: -180 to +1.200 Deg.C

ISSA-Code: 53.402.18

IMPA-Code: 450846
