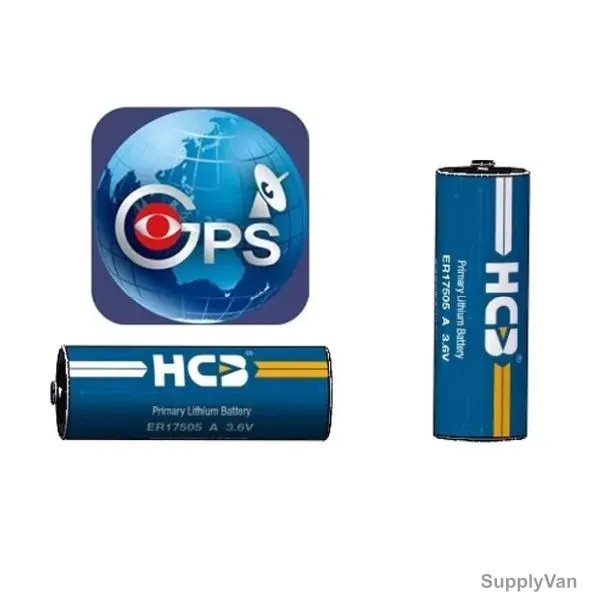

Hcb Li-SOCl2 Cylindrical Battery, ER17505, 3.6V, 3600mAh
On our shelf and ready to go out today.
Key features
- High Voltage: Provide the nominal voltage up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V
- High Energy Density: The specific energy density of each battery is 510Wh/kg
- Stable Operating Voltage: Battery voltage is very stable during work, more than 90% of the capacity could be output on a fixed high voltage platform
- Long Shelf Life: Under the condition of normal temperature, theER17505 battery self-discharge rate of no more than 2% per year
- Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years
- Medical devices: Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
Specifications
| SV Code | 477214886246 |
| Brand | Hcb |
| Category | Disposable Specialty Batteries |
| Unit | Piece |
| Battery Voltage | 3.6 VDC |
| Battery Type | Li-SOCl2 |
| Battery Capacity | 3600 mAh |
| Height | 49.2+/-0.5mm |
| Diameter | 16.8+/-0.3mm |
| Application | Security System, Smart Metering, RFID/IoT System, Wireless Transmitting, Smart Home Devices, Military Devices |
| Amps | 100 mA |
| Operating Temperature | -55 to 85 Deg.C |
| Storage Temperature | <=30 Deg.C |
| Shelf Life | 10 yr. |
| Relative Humidity | <=75% |
| Safety Warning | Do not short circuit, recharge, puncture, crush, dismantle, incinerate, mix new and used batteries, heat above 100 Deg.C |
| Brand Origin (not manufacture) | China |
| Delivery | On our shelf and ready to go out today. |
Description
The HCB ER17505 is a high-performance 3.6V Lithium Thionyl Chloride (Li-SOCl?) primary battery engineered to deliver long-lasting, stable, and maintenance-free power for advanced industrial and remote electronic applications. Designed in the ER17505 cylindrical format, this battery combines exceptional energy density, very low self-discharge, and rugged long-life construction, making it a preferred power source for systems requiring dependable performance over many years. Built for durability and precision, the ER17505 offers a typical capacity of approximately 3600–3900 mAh, ensuring extended service life in low-drain devices. Its 3.6V nominal voltage delivers a stable output throughout the majority of its discharge cycle, providing consistent and reliable performance for sensitive electronics, sensors, and monitoring equipment. With an ultra-low self-discharge rate of less than 1% per year, this battery significantly extends the maintenance interval for devices installed in hard-to-reach or mission-critical environments. Engineered with stainless-steel housing and hermetic sealing, the battery provides excellent resistance to leakage, corrosion, shock, vibration, and environmental stress. It operates effectively in extreme temperature ranges from ?55 to +85 Deg.C, making it suitable for outdoor deployment, industrial machinery, cold-chain applications, or high-heat infrastructure. The battery is optimized for low-current, long-duration power demands, yet can support moderate pulse currents when paired with appropriate capacitive buffering. Its controlled internal impedance and Li-SOCl? chemistry provide smooth, predictable performance, meeting the stringent requirements of smart metering, IoT nodes, industrial controllers, and wireless communication systems.
Features
- High Voltage: Provide the nominal voltage up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V
- High Energy Density: The specific energy density of each battery is 510Wh/kg
- Stable Operating Voltage: Battery voltage is very stable during work, more than 90% of the capacity could be output on a fixed high voltage platform
- Long Shelf Life: Under the condition of normal temperature, theER17505 battery self-discharge rate of no more than 2% per year
- Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years
- Medical devices: Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
- IoT devices: Smoke detectors, security alarms, seismometers, locking systems, monitoring systems, etc.
- Tracking: RFID products, road toll transponder, IC cards, etc.
- Battery discharged at continuous current 1.7mA until the voltage reaches cut-off voltage 2.0V at ambient temperature 23+/-2 Deg.C
- Battery with minimum 50% rated capacity discharged at ambient temperature 23+/-2 Deg.C
- Maximum Pulse Discharge Current: 180mA and Self-discharge Rate: 1%
- Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23+/-2 Deg.C
Certifications & Standards
| Certification | UN/CE/UL |
