OBO Junction Box, OBO2007093, T160, Polypropylene, IP66, Light Grey

SV Code: 213362381543Model No.: OBO2007093

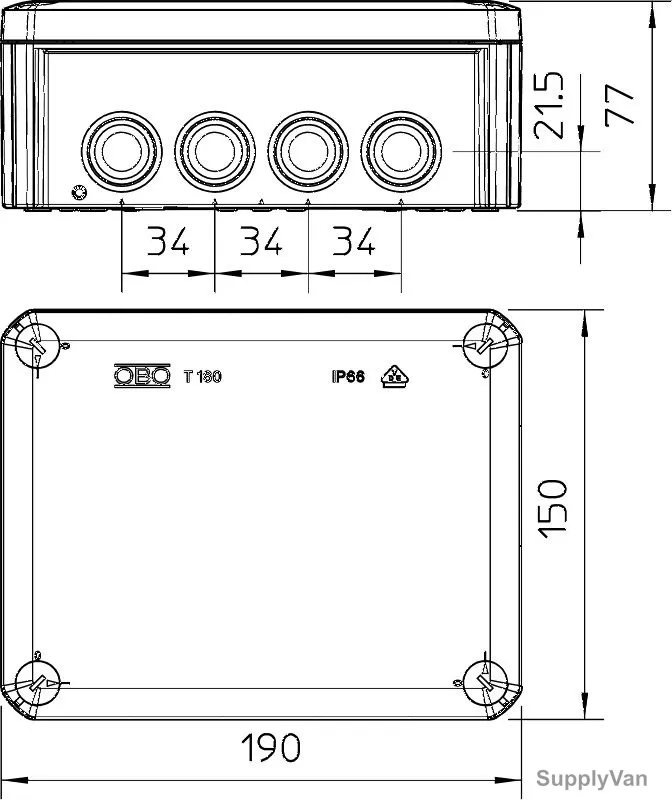

190 mm150 mm77 mmLight GreyPolypropylene

AED 42.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

The junction boxes are made of a thermoplastic polypropylene polymer with plug-in seals made of ethylene vinyl acetate (EVA)
This allows installation of cables either directly through the 7x M25 and 5x M32 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes
Alternatively, cable glands can be pushed through the openings instead of the seals and locked with a locknut from the inside
The junction boxes can be mounted on mounting plates in the openings on the floor using steel screws 3.5 x 9.5
Clear Internal Dimension: 176 x 135 x 67mm
Cover with labelling panel and lead-sealed

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

This model family (14 options)

Product	Price	Availability
OBO Junction Box, OBO2007045, T40, Polypropylene, IP55, Light Grey	AED 14.00	Quote
OBO Junction Box, OBO2007223, T400E, Polypropylene, IP55, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2000378, A14, Polypropylene, IP55, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2007061, T60, Polypropylene, IP66, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2007239, T600E, Polypropylene, IP66, Light Grey	AED 17.00	Quote
OBO Junction Box, OBO2000410, A18, Polypropylene, IP55, Light Grey	AED 18.00	Quote
OBO Junction Box, OBO2007077, T100, Polypropylene, IP66, Light Grey	AED 23.00	Quote
OBO Junction Box, OBO2007255, T1000E, Polypropylene, IP66, Light Grey	AED 25.00	Quote
OBO Junction Box, OBO2007093, T160, Polypropylene, IP66, Light Grey viewing	AED 42.00	Quote
OBO Junction Box, OBO2007271, T1600E, Polypropylene, IP66, Light Grey	AED 45.00	Quote
OBO Junction Box, OBO2007109, T250, Polypropylene, IP66, Light Grey	AED 68.00	Quote
OBO Junction Box, OBO2007287, T2500E, Polypropylene, IP66, Light Grey	AED 75.00	Quote
OBO Junction Box, OBO2007125, T350, Polypropylene, IP66, Light Grey	AED 128.00	Quote
OBO Junction Box, OBO2007303, T3500E, Polypropylene, IP66, Light Grey	AED 135.00	Quote

Specifications

SV Code	213362381543
Brand	OBO
Category	Electrical Boxes
Unit	Piece
Length	190 mm
Width	150 mm
Height	77 mm
Colour	Light Grey
Material	Polypropylene
Weather Resistant	Yes
Brand Origin (not manufacture)	Germany
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

OBO Junction Box, OBO2007093, T160, Polypropylene, IP66, Light Grey. Genuine OBO product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.

Features

The junction boxes are made of a thermoplastic polypropylene polymer with plug-in seals made of ethylene vinyl acetate (EVA)
This allows installation of cables either directly through the 7x M25 and 5x M32 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes
Alternatively, cable glands can be pushed through the openings instead of the seals and locked with a locknut from the inside
The junction boxes can be mounted on mounting plates in the openings on the floor using steel screws 3.5 x 9.5
Clear Internal Dimension: 176 x 135 x 67mm
Cover with labelling panel and lead-sealed
