OBO Junction Box, OBO2007109, T250, Polypropylene, IP66, Light Grey

SV Code: 554878831352Model No.: OBO2007109

240 mm190 mm95 mmLight GreyPolypropylene

AED 68.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

All the T series junction boxes are UV-resistant
They are made of a thermoplastic polypropylene plastic with plug-in seals made of ethylene vinyl acetate (EVA)
This plastic is soft, which means that it is malleable
This allows installation of cables through the 9x M25 and 7x M32 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes
Alternatively, instead of seals, cable glands can be inserted through the openings and be countered internally with a locknut
The junction boxes can be mounted on mounting plates in the openings on the floor using steel bolts 3.5 x 9.5

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

This model family (14 options)

Product	Price	Availability
OBO Junction Box, OBO2007045, T40, Polypropylene, IP55, Light Grey	AED 14.00	Quote
OBO Junction Box, OBO2007223, T400E, Polypropylene, IP55, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2007061, T60, Polypropylene, IP66, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2000378, A14, Polypropylene, IP55, Light Grey	AED 15.00	Quote
OBO Junction Box, OBO2007239, T600E, Polypropylene, IP66, Light Grey	AED 17.00	Quote
OBO Junction Box, OBO2000410, A18, Polypropylene, IP55, Light Grey	AED 18.00	Quote
OBO Junction Box, OBO2007077, T100, Polypropylene, IP66, Light Grey	AED 23.00	Quote
OBO Junction Box, OBO2007255, T1000E, Polypropylene, IP66, Light Grey	AED 25.00	Quote
OBO Junction Box, OBO2007093, T160, Polypropylene, IP66, Light Grey	AED 42.00	Quote
OBO Junction Box, OBO2007271, T1600E, Polypropylene, IP66, Light Grey	AED 45.00	Quote
OBO Junction Box, OBO2007109, T250, Polypropylene, IP66, Light Grey viewing	AED 68.00	Quote
OBO Junction Box, OBO2007287, T2500E, Polypropylene, IP66, Light Grey	AED 75.00	Quote
OBO Junction Box, OBO2007125, T350, Polypropylene, IP66, Light Grey	AED 128.00	Quote
OBO Junction Box, OBO2007303, T3500E, Polypropylene, IP66, Light Grey	AED 135.00	Quote

Specifications

SV Code	554878831352
Brand	OBO
Category	Electrical Boxes
Unit	Piece
Length	240 mm
Width	190 mm
Height	95 mm
Colour	Light Grey
Material	Polypropylene
Weather Resistant	Yes
Brand Origin (not manufacture)	Germany
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

OBO Junction Box, OBO2007109, T250, Polypropylene, IP66, Light Grey. Genuine OBO product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.

Features

All the T series junction boxes are UV-resistant
They are made of a thermoplastic polypropylene plastic with plug-in seals made of ethylene vinyl acetate (EVA)
This plastic is soft, which means that it is malleable
This allows installation of cables through the 9x M25 and 7x M32 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes
Alternatively, instead of seals, cable glands can be inserted through the openings and be countered internally with a locknut
The junction boxes can be mounted on mounting plates in the openings on the floor using steel bolts 3.5 x 9.5

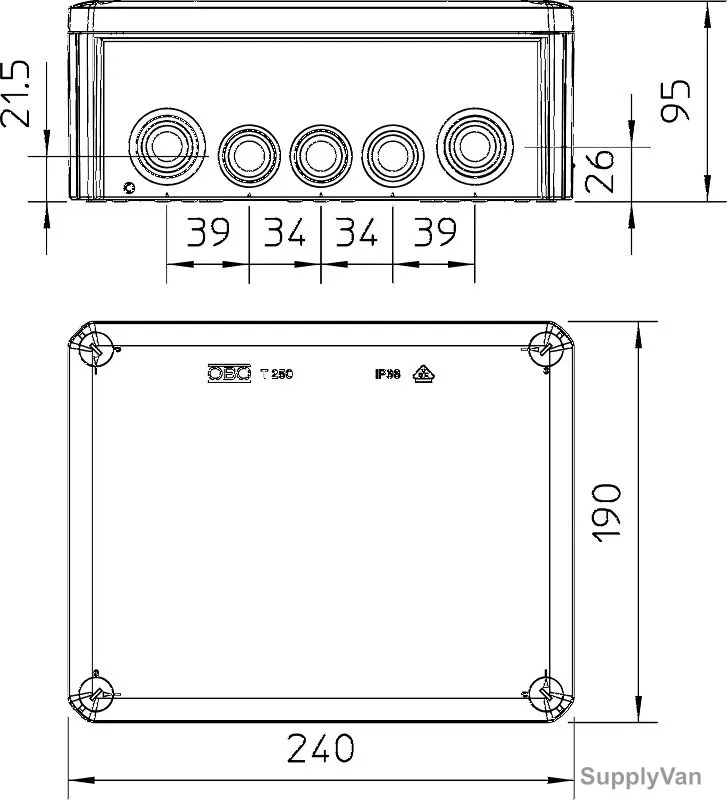

Clear Internal Dimension: 225 x 173 x 86mm
Cover with labelling panel and lead-sealed
