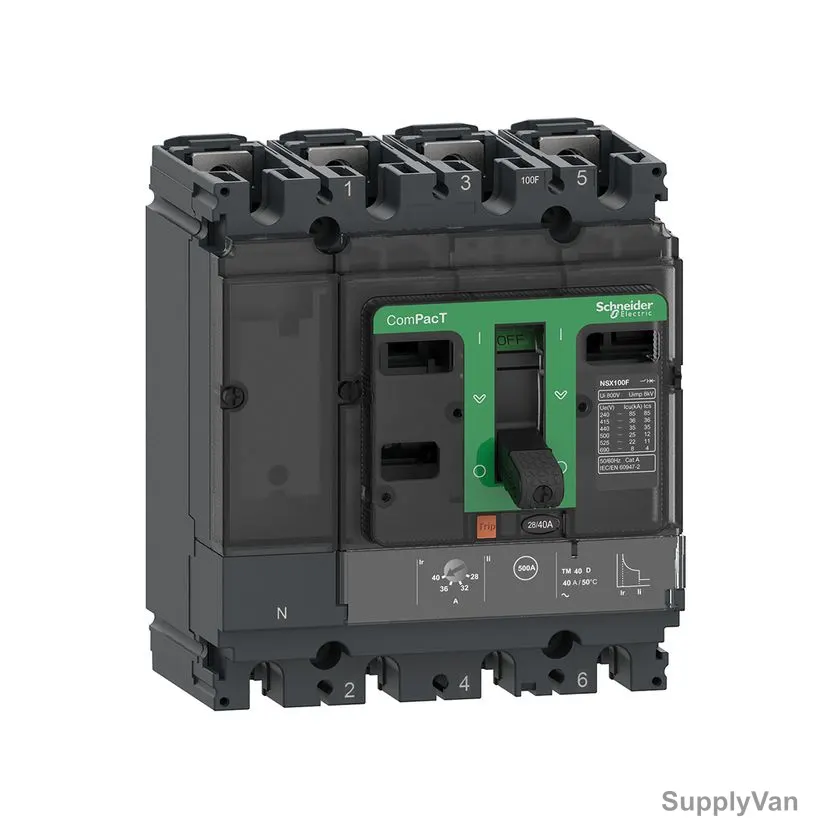

Schneider Electric Molded Case Circuit Breaker, NSX160F, ComPacT, 4P, IP40, 125A
Key features
- Neutral Position: Left
- Network Type: AC
- Utilisation Category: Category A
- Performance Level: F 36 kA 415VAC
- Trip Unit Name: TM-D
- Rated impulse withstand voltage: 8kV
This model family (2 options)
| Product | Price | Availability |
|---|---|---|
| Schneider Electric Molded Case Circuit Breaker, NSX160F, ComPacT, 4P, IP40, 125A viewing | AED 776.00 | Quote |
| Schneider Electric Molded Case Circuit Breaker, NSX160F, ComPacT, 4P, IP40, 160A | AED 870.00 | Quote |
Specifications
| SV Code | 324384173139 |
| Brand | Schneider Electric |
| Category | Molded Case Circuit Breakers |
| Unit | Piece |
| Frequency | 50/60 Hz |
| Current | 125 A |
| Insulation Voltage | 800 VAC |
| Operational Voltage | 690 VAC |
| Width | 105 mm |
| Height | 165 mm |
| Depth | 60 mm |
| Colour | Black |
| Operating Temp | -25 to 70 Deg.C |
| Mounting Type | Fixed Backplate |
| Number of Poles | 4P |
| Storage Temperature | -50 to 85 Deg.C |
| Relative Humidity | 0-95% |
| Control Type | Toggle |
| Pollution Degree | 3 |
| Operating Altitude | 0-2000 Mtr |
| IK Rating | IK07 |
| Pitch | 35 mm |
| Over Load Protection | Yes |
| Brand Origin (not manufacture) | France |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
This ComPacT NSX160F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD) under 50 Deg.C ambient air temperature for operation. TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
Features
- Neutral Position: Left
- Network Type: AC
- Utilisation Category: Category A
- Performance Level: F 36 kA 415VAC
- Trip Unit Name: TM-D
- Rated impulse withstand voltage: 8kV
- Mechanical Durability: 40000 cycles
- Power dissipation per pole: 10.78W
- Long-time pick-up adjustment type Ir (thermal protection): Adjustable
- Long-time protection pick-up adjustment range: 0.7-1 x ln
- Number of slots for electrical auxiliaries: 5 Slots
Certifications & Standards
| Standards | EN/IEC 60947 |
| Ingress Protection | IP40 |
| Certification | CCC, EAC, Marine Listed |
