Weicon AN 302-77 Pipe and Thread Sealing, 30277200, Weiconlock, 200ML
SV Code: 396961366592Model No.: 30277200
200 mlRed6/12 HrsGermany
AED 406.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Fast delivery Genuine & warranty Bulk quotes
This model family (17 options)
Specifications
| SV Code | 396961366592 |
| Brand | Weicon |
| Category | All Purpose Sealant |
| Unit | Piece |
| Size | 200 ml |
| Colour | Red |
| Temperature Resistance | -60 to +150 Deg.C |
| Viscosity | 6.000 mPa·s |
| Final Strength | 6/12 Hrs |
| Shear Strength | 35-45 N/sq.mm |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

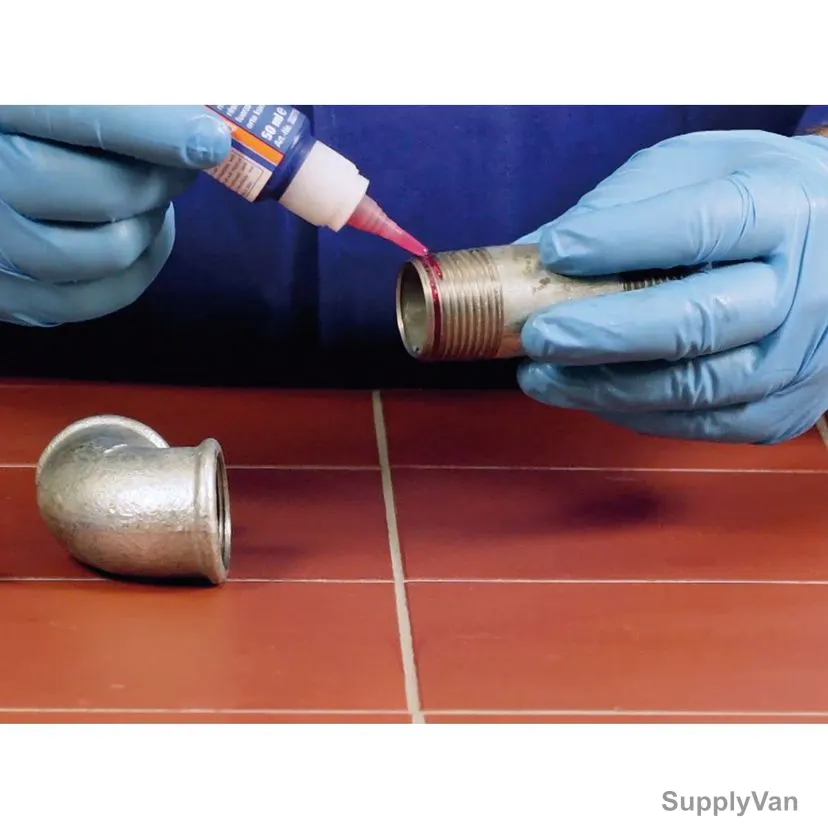

Surface pre-treatment:In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened. Processing:Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended. Storage:Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid. Technical Data: Colour: Red For threaded joints up to: M36 Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 6.000 mPa·s Max. Gap Bridging: 0.25mm Breakaway strength (Thread): 30 - 40 Nm Prevailing strength: 10 - 15 Nm Shear strength N sq.mm (DIN 54452): 35 - 45 N/sq.mm Handling strength at room temperature: 40 - 60 min. Final strength (100%) after: 6 - 12 h Temperature resistance: -60 to +150 Deg.C
Features
- Higher viscosity
- High strength
- Hard to disassemble
