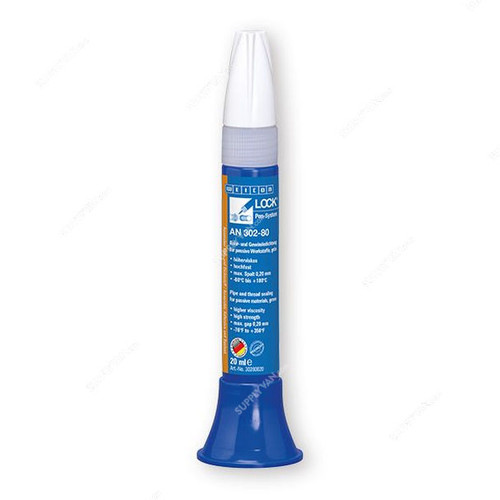

Weicon AN 302-80 Pipe and Thread Sealing, 30280020, Weiconlock, 20ML
SV Code: 735286992963Model No.: 30280020
20 mlGreen6/12 HrsGermany
AED 63.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Fast delivery Genuine & warranty Bulk quotes
This model family (17 options)
Specifications
| SV Code | 735286992963 |
| Brand | Weicon |
| Category | All Purpose Sealant |
| Unit | Piece |
| Size | 20 ml |
| Colour | Green |
| Temperature Resistance | -60 to +200 Deg.C |
| Final Strength | 6/12 Hrs |
| Shear Strength | 20-30 N/sq.mm |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

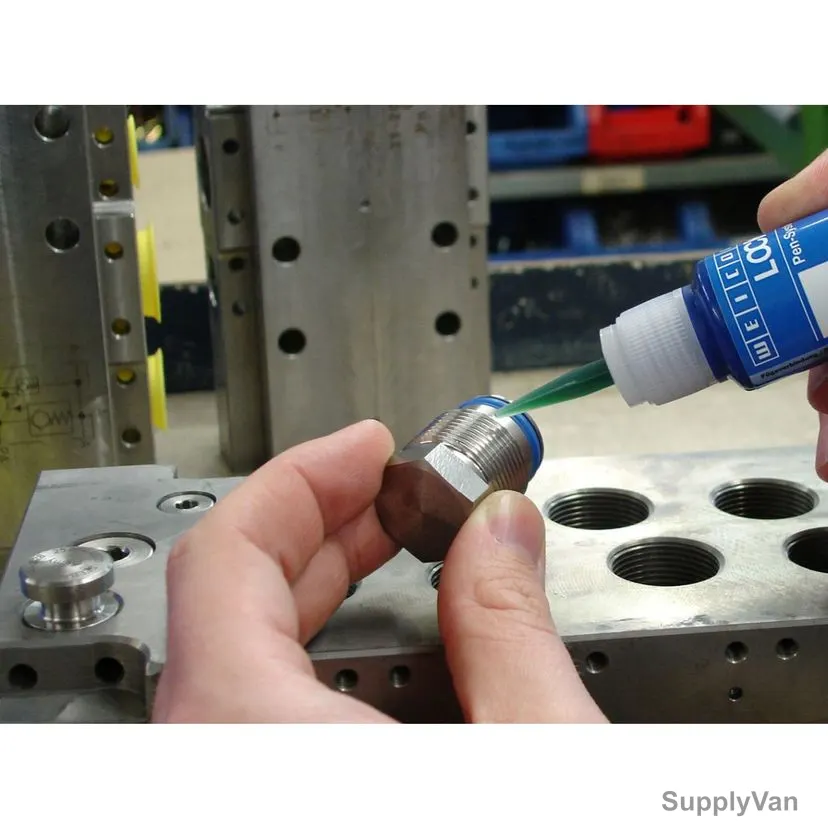

Surface pre-treatmentIn general, WEICONLOCK does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use WEICON Surface Cleaner). If required, the parts should be slightly roughened. ProcessingWEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). For sealing applications, apply WEICONLOCK in circular options on the thread. Assemble and tighten parts. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended. StorageWEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid. Technical Data: Colour: Green Fluorescent: Yes For threaded joints up to: M5 Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 10 - 20 mPa·s Max. Gap Bridging: 0.07 mm Breakaway strength (Thread): 15 - 25 Nm Prevailing strength: 30 - 40 Nm Shear strength N sq.mm (DIN 54452): 8 - 12 N/sq.mm Handling strength at room temperature: 5 - 20 min. Final strength (100%) after: 3 h Temperature resistance: -60 to +150 Deg.C ISSA-Code: 75.628.28/29/30 IMPA-Code: 815207/08/09
Features
- Higher viscosity
- High strength
- Hard to disassemble
