Festo

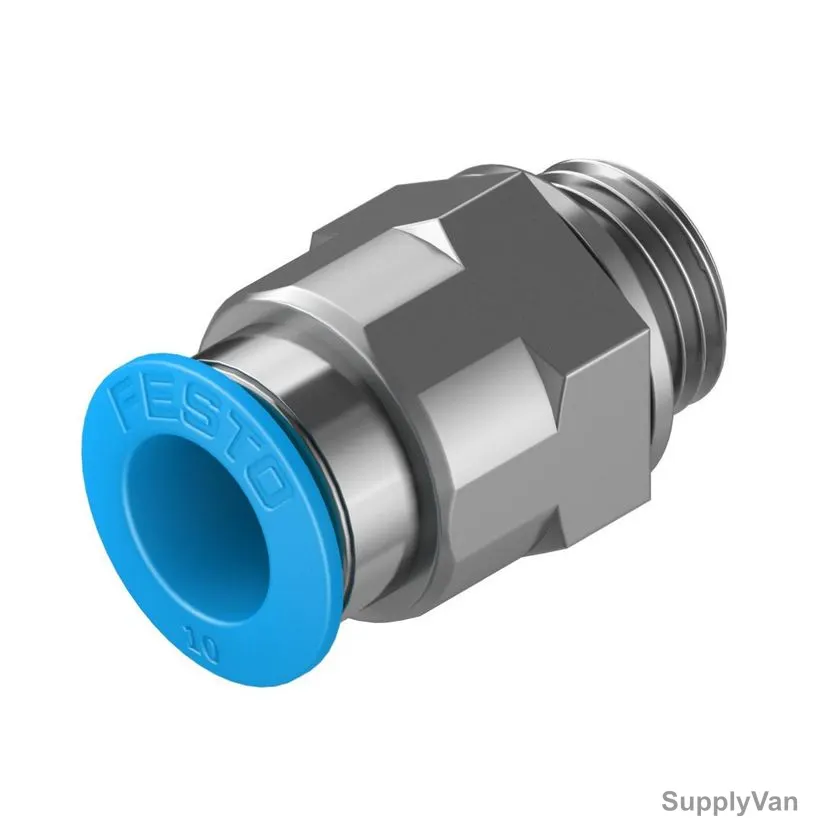

Festo Push-In Fitting, QS-G1-4-10, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 10MM Outer Dia
SV Code: 694146511794Model No.: QS-G1-4-10Article Number: 186101
9 NmMale G-1/410 mmSilverStainless Steel
AED 12.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Pneumatic connection, port 1: Male thread G1/4
- Pneumatic connection, port 2: For tubing outer diameter of 10mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
Fast delivery Genuine & warranty Bulk quotes
This model family (4 options)
| Product | Price | Availability |
|---|---|---|
| Festo Push-In Fitting, QS-G1-4-6, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 6MM Outer Dia | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-8, Stainless Steel/Brass, 6 Bar, G-1/4 Male Thread, 8MM Outer Dia | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-12, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 12MM Outer Dia | AED 12.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-10, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 10MM Outer Dia viewing | AED 12.00 | In stock |
Specifications
| SV Code | 694146511794 |
| Brand | Festo |
| Category | Pipe and Tubing Accessories |
| Unit | Piece |
| Torque | 9 Nm |
| Pressure Range | - 0.95 to 14 Bar |
| Operating Pressure | max. 0.6 MPa at max. 50 Deg.C |
| Thread Size | Male G-1/4 |
| Outer Diameter | 10 mm |
| Nominal Size | 8.5 mm |
| Colour | Silver |
| Material | Stainless Steel |
| Finish | Nickel Plated |
| Housing Material | Brass |
| Seal Material | NBR |
| Operating Temp | -10 to 80 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Festo QS-G1-4-10 Push-In Fitting is a robust pneumatic connector engineered for quick and reliable connection of tubing in compressed air and automation systems. Constructed from stainless steel and brass, it combines strength with corrosion resistance. This fitting features a G 1/4-inch male thread and supports 10mm outer diameter tubing, delivering dependable performance up to 14 bar pressure.
Features
- Pneumatic connection, port 1: Male thread G1/4
- Pneumatic connection, port 2: For tubing outer diameter of 10mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
- Internal Hex offers aesthetically pleasing finish
- Threaded to tube (hose) connection style for use in pneumatic applications
- Robust, solid nickel-plated brass with high resistance to corrosion
- Material release ring: POM
