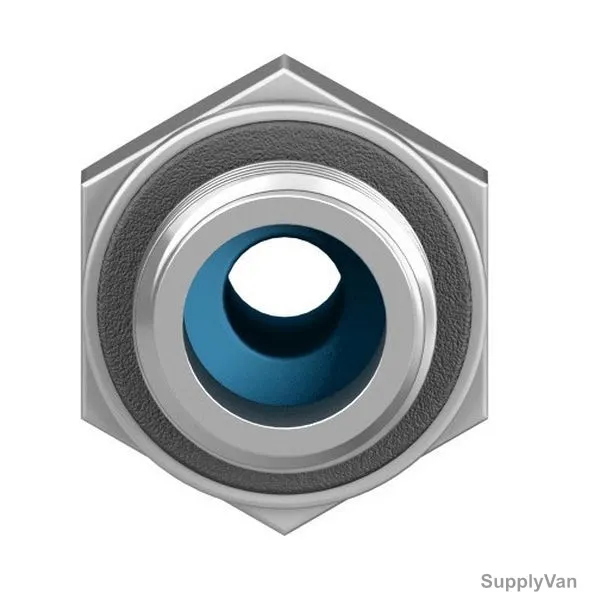

Festo Push-In Fitting, QS-G1-8-4, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 4MM Outer Dia
SV Code: 332613789535Model No.: QS-G1-8-4Article Number: 186095
Male G-1/84 mm3 mmSilverStainless Steel
AED 11.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Outer Diameter · 4 mm
4 mm332613789535AED 11.00
In stock — ships today
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Pneumatic connection, port 1: Male thread G1/8
- Pneumatic connection, port 2: For tubing outer diameter of 4mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
Fast delivery Genuine & warranty Bulk quotes
This model family (2 options)
| Product | Price | Availability |
|---|---|---|
| Festo Push-In Fitting, QS-G1-8-4, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 4MM Outer Dia viewing | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-8-8, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 8MM Outer Dia | AED 11.00 | In stock |
Specifications
| SV Code | 332613789535 |
| Brand | Festo |
| Category | Pipe and Tubing Accessories |
| Unit | Piece |
| Torque | 5.4 Nm |
| Pressure Range | - 0.95 to 14 Bar |
| Operating Pressure | max. 0.6 MPa at max. 50 Deg.C |
| Thread Size | Male G-1/8 |
| Outer Diameter | 4 mm |
| Nominal Size | 3 mm |
| Colour | Silver |
| Material | Stainless Steel |
| Finish | Nickel Plated |
| Housing Material | Brass |
| Seal Material | NBR |
| Operating Temp | -10 to 80 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Festo QS-G1-8-4 Push-In Fitting is a compact and durable pneumatic connector engineered for secure connection of 4mm outer diameter tubing. Constructed from stainless steel and brass, it offers excellent resistance to corrosion, mechanical wear, and harsh industrial environments. This model features a G 1/8-inch male thread and is rated for operating pressures up to 14 bar, ensuring dependable performance in automation and control systems.
Features
- Pneumatic connection, port 1: Male thread G1/8
- Pneumatic connection, port 2: For tubing outer diameter of 4mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
- Internal Hex offers aesthetically pleasing finish
- Threaded to tube (hose) connection style for use in pneumatic applications
- Robust, solid nickel-plated brass with high resistance to corrosion
- Material release ring: POM
