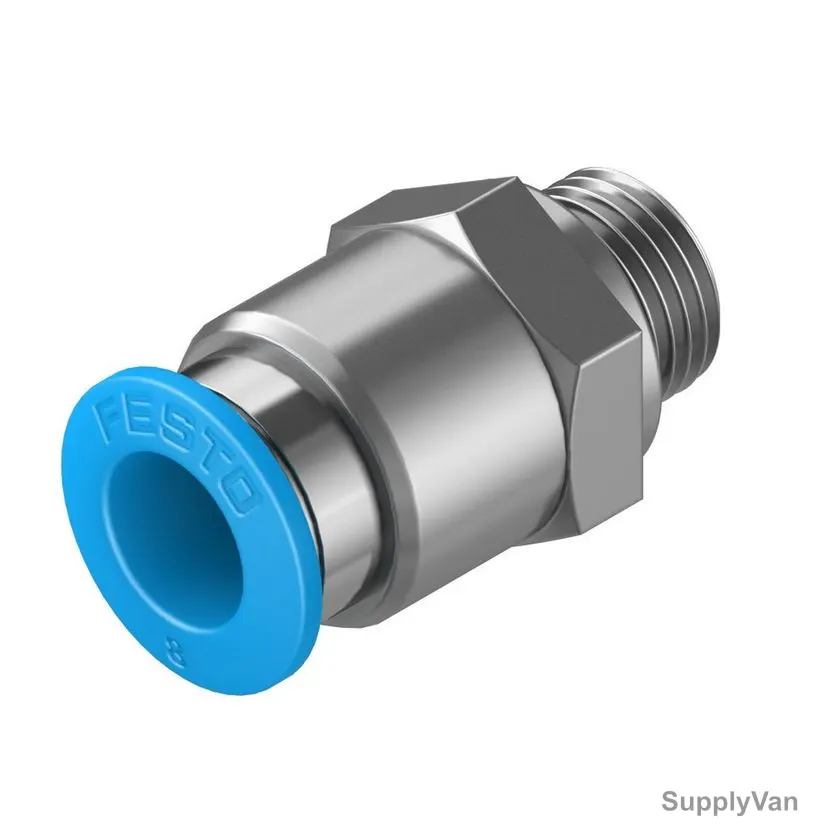

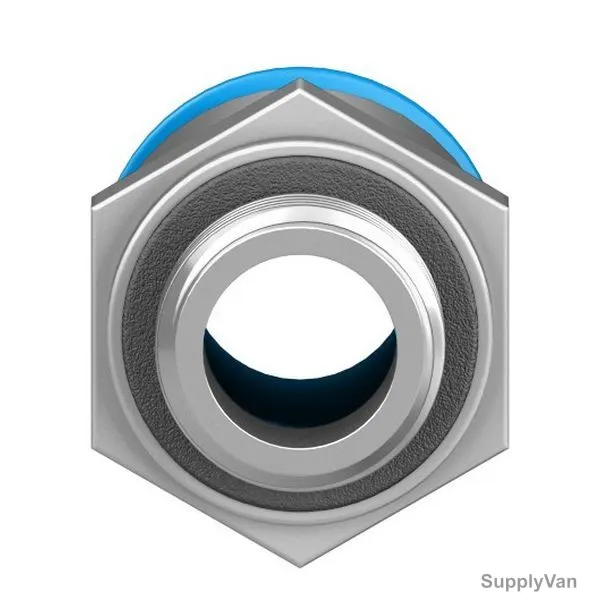

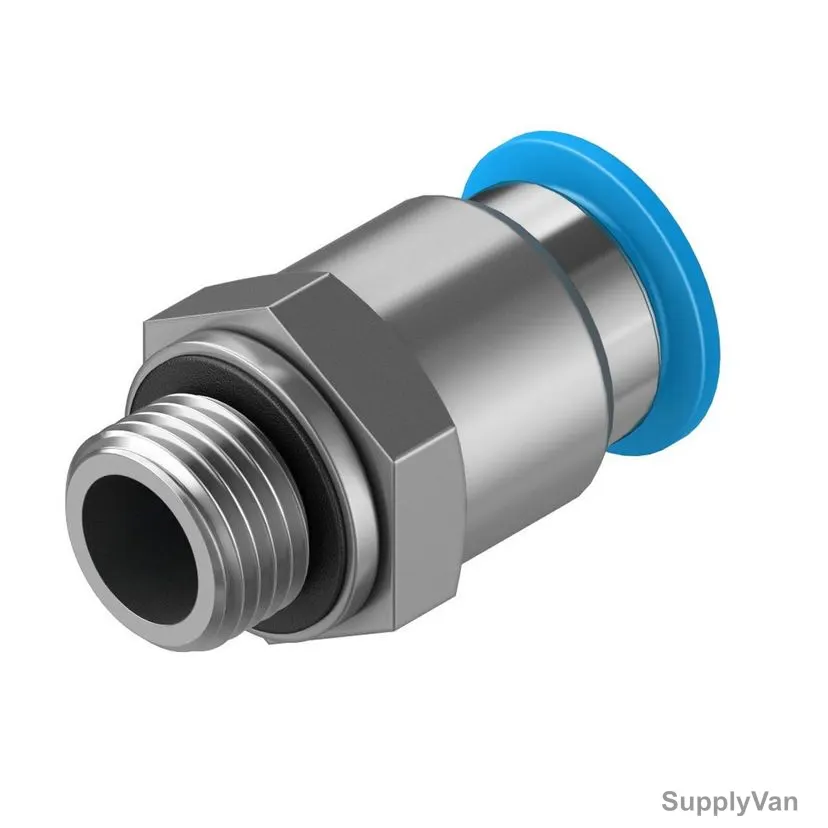

Festo Push-In Fitting, QS-G1-8-8, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 8MM Outer Dia
SV Code: 899161869992Model No.: QS-G1-8-8Article Number: 186098
Male G-1/88 mm6 mmSilverStainless Steel
AED 11.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Outer Diameter · 8 mm
8 mm899161869992AED 11.00
In stock — ships today
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Pneumatic connection, port 1: Male thread G1/8
- Pneumatic connection, port 2: For tubing outer diameter of 8mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
Fast delivery Genuine & warranty Bulk quotes
This model family (2 options)
| Product | Price | Availability |
|---|---|---|
| Festo Push-In Fitting, QS-G1-8-4, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 4MM Outer Dia | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-8-8, Stainless Steel/Brass, 14 Bar, G-1/8 Male Thread, 8MM Outer Dia viewing | AED 11.00 | In stock |
Specifications
| SV Code | 899161869992 |
| Brand | Festo |
| Category | Pipe and Tubing Accessories |
| Unit | Piece |
| Torque | 5.4 Nm |
| Pressure Range | - 0.95 to 14 Bar |
| Operating Pressure | max. 0.6 MPa at max. 50 Deg.C |
| Thread Size | Male G-1/8 |
| Outer Diameter | 8 mm |
| Nominal Size | 6 mm |
| Colour | Silver |
| Material | Stainless Steel |
| Finish | Nickel Plated |
| Housing Material | Brass |
| Seal Material | NBR |
| Operating Temp | -10 to 80 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Festo QS-G1-8-8 Push-In Fitting is a high-quality pneumatic connector designed for fast and reliable connections in compressed air systems. Engineered from a combination of stainless steel and brass, it offers durability, corrosion resistance, and a long service life. This fitting supports 8 mm outer diameter tubing and features a G 1/8-inch male thread, withstanding pressures up to 14 bar, making it ideal for compact and precise pneumatic applications.
Features
- Pneumatic connection, port 1: Male thread G1/8
- Pneumatic connection, port 2: For tubing outer diameter of 8mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
- Internal Hex offers aesthetically pleasing finish
- Threaded to tube (hose) connection style for use in pneumatic applications
- Robust, solid nickel-plated brass with high resistance to corrosion
- Material release ring: POM
