Festo

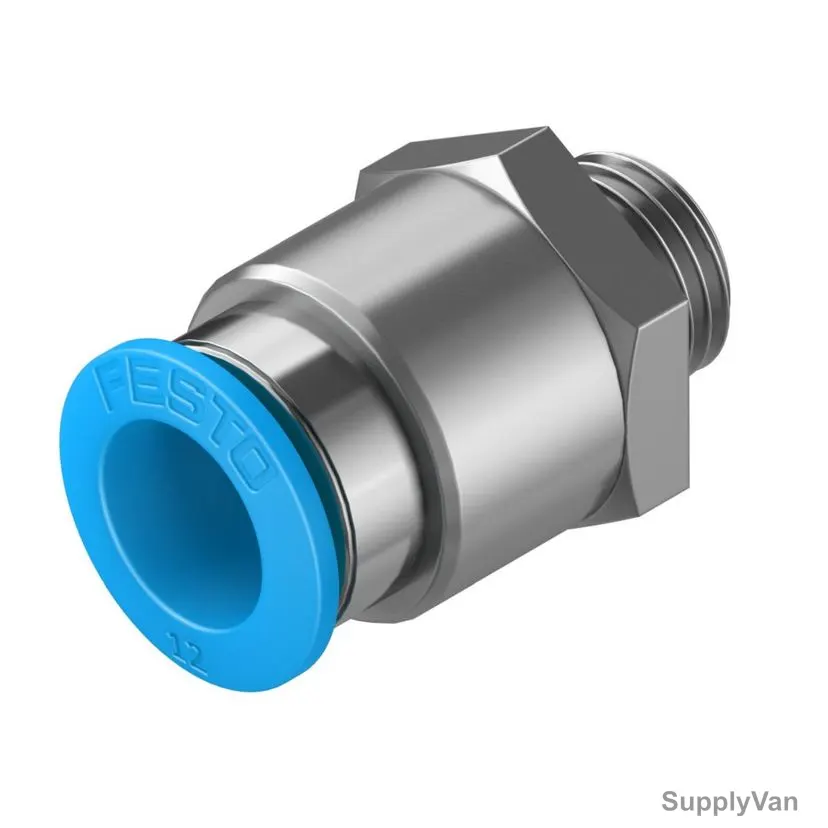

Festo Push-In Fitting, QS-G1-4-12, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 12MM Outer Dia
SV Code: 592824992468Model No.: QS-G1-4-12Article Number: 186350
9 NmMale G-1/412 mmSilverStainless Steel
AED 12.00/ Piece
In stock — ships today
On our shelf and ready to go out today.
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Pneumatic connection, port 1: Male thread G1/4
- Pneumatic connection, port 2: For tubing outer diameter of 12mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
Fast delivery Genuine & warranty Bulk quotes
This model family (4 options)
| Product | Price | Availability |
|---|---|---|
| Festo Push-In Fitting, QS-G1-4-6, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 6MM Outer Dia | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-8, Stainless Steel/Brass, 6 Bar, G-1/4 Male Thread, 8MM Outer Dia | AED 11.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-12, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 12MM Outer Dia viewing | AED 12.00 | In stock |
| Festo Push-In Fitting, QS-G1-4-10, Stainless Steel/Brass, 14 Bar, G-1/4 Male Thread, 10MM Outer Dia | AED 12.00 | In stock |
Specifications
| SV Code | 592824992468 |
| Brand | Festo |
| Category | Pipe and Tubing Accessories |
| Unit | Piece |
| Torque | 9 Nm |
| Pressure Range | - 0.95 to 14 Bar |
| Operating Pressure | max. 0.6 MPa at max. 50 Deg.C |
| Thread Size | Male G-1/4 |
| Outer Diameter | 12 mm |
| Nominal Size | 8.5 mm |
| Colour | Silver |
| Material | Stainless Steel |
| Finish | Nickel Plated |
| Housing Material | Brass |
| Seal Material | NBR |
| Operating Temp | -10 to 80 Deg.C |
| Brand Origin (not manufacture) | Germany |
| Delivery | On our shelf and ready to go out today. |
Description
The Festo QS-G1-4-12 Push-In Fitting is a high-performance pneumatic connector designed for rapid and secure connection of tubing in automation and air systems. Made from a durable combination of stainless steel and brass, it supports a working pressure up to 14 bar and features a G 1/4-inch male thread for easy installation. The fitting accommodates 12mm outer diameter tubing, making it suitable for medium to large flow air systems.
Features
- Pneumatic connection, port 1: Male thread G1/4
- Pneumatic connection, port 2: For tubing outer diameter of 12mm
- RoHS-compliant
- Material of tube retaining claw: High-alloy stainless steel
- Maximum flexibility for each pneumatic fitting
- Effortless, quick and simple push-in installation
- Internal Hex offers aesthetically pleasing finish
- Threaded to tube (hose) connection style for use in pneumatic applications
- Robust, solid nickel-plated brass with high resistance to corrosion
- Material release ring: POM
