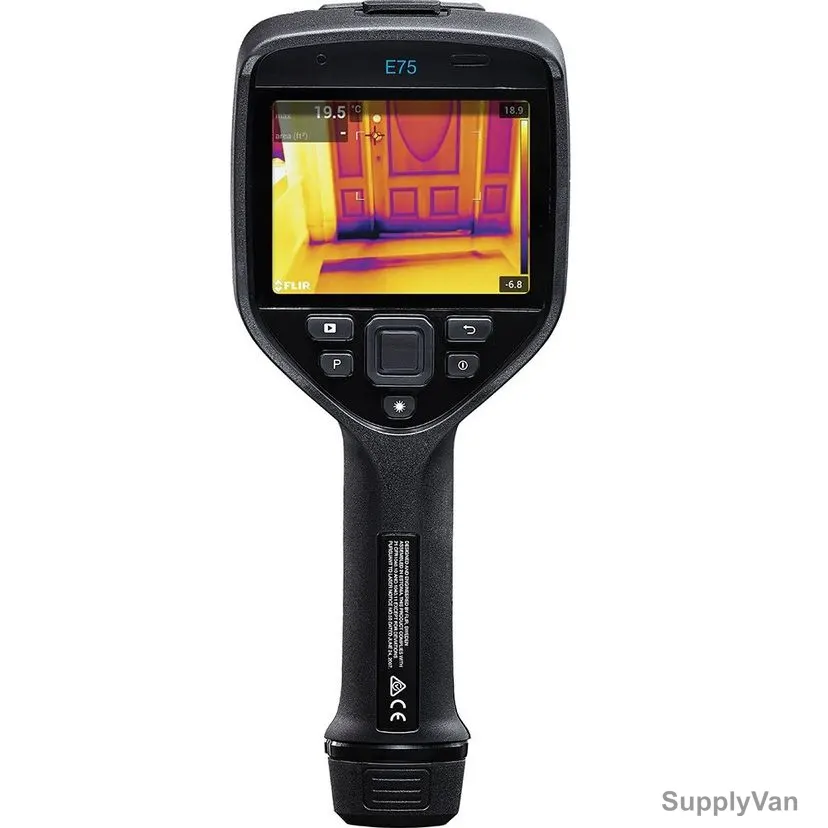

Flir Advanced Thermal Imaging Camera, E75, 320 x 240p, -20 to 1000 Deg.C
SV Code: 253632454352Model No.: E75Article Number: 78502-0101
Li-Ion4 Inch17 mmBlack5MP
AED 28,903.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Wide temperature ranges with optional calibrations up to 2732°F (1500°C)
- Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
- Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
- Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
- Interchangeable lenses offer complete coverage of near and far targets
- Lenses auto-calibrate with camera for the most precise temperature readings
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 253632454352 |
| Brand | Flir |
| Category | Thermal Imager |
| Unit | Piece |
| Battery Type | Li-Ion |
| Temperature Range | -20 to 1000 Deg.C |
| Temp Range | -20 to 650 Deg.C |
| Accuracy | +/-2.0 percent or +/-2.0 Deg.C |
| Temp Range F | -4 to 1200 Deg.F |
| Spectral Range | 7.5-14.0 micron |
| Focus Range | 0.15 Mtrs to Infinity |
| Display Size | 4 Inch |
| Focal Length | 17 mm |
| Colour | Black |
| Operating Temp | -15 to 50 Deg.C |
| Operating Temperature | -15 to 50 Deg.C |
| Storage Temperature | -40 to 70 Deg.C |
| Special Features | MSX Enhancement, UltraMax(TM) Super Resolution, Auto-Orientation, 4X Zoom, One Shot Laser Distance Meter, Temperature Screening, METERLiNK(R), Compass, GPS, Video Streaming |
| Display Type | 4.0 Inch Touch Screen Color LCD with auto rotation |
| Storage Temp | -40 to 70 Deg.C |
| Resolution | 5MP |
| Operating Time | Battery: Approx 2.5 Hrs at 25 Deg.C |
| Display Resolution | 640 x 480p |
| Aspect Ratio | 4:3 |
| Pitch | 17 µm |
| Frame Rate | 30 Hz |
| Field of View | 24 x 18 Degree |
| Minimum Focus Distance | 0.5 Mtr |
| Thermal Sensitivity | <24 Deg at +30 Deg.C (+86 Deg.F)/40 mK |
| Digital Zoom | 1 to 4x Continuous |
| Emissivity | Adjustable 0.01 to 1.00 |
| Spectral Response | 7.5 to 14.0 mum |
| Detector Resolution | 320 x 240p (76,800) |
| Detector Type | Uncooled Microbolometer |
| Storage Media | 8GB Removable SD card |
| Focus Method | Manual and continuous with LDM (laser distance meter) |
| Removable Memory Card | No |
| Visual Light Resolution | 5.0 MP |
| Brand Origin (not manufacture) | United States |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The FLIR E75 has the sensitivity and resolution needed to diagnose problems and find hidden deficiencies, even from a distance. The 320 x 240 true native resolution offers more than 76,000 points of temperature measurement and produces crisp, vibrant imagery.
Features
- Wide temperature ranges with optional calibrations up to 2732°F (1500°C)
- Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
- Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
- Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
- Interchangeable lenses offer complete coverage of near and far targets
- Lenses auto-calibrate with camera for the most precise temperature readings
- MSX image enhancement adds the depth and detail to image
- Rapid-response touchscreen with intuitive new user interface
- Convenient menu buttons allow for one-handed operation
- New folder and naming structure that makes finding images easier
- Connect over Wi-Fi to mobile devices or via METER Link to FLIR clamps and multimeters
- Spatial Resolution: 1.31 mrad
